ECO Heating thermostats with stainless steel bath

Heating thermostats from 20 to 200 °C for economic temperature control thermostating in the lab

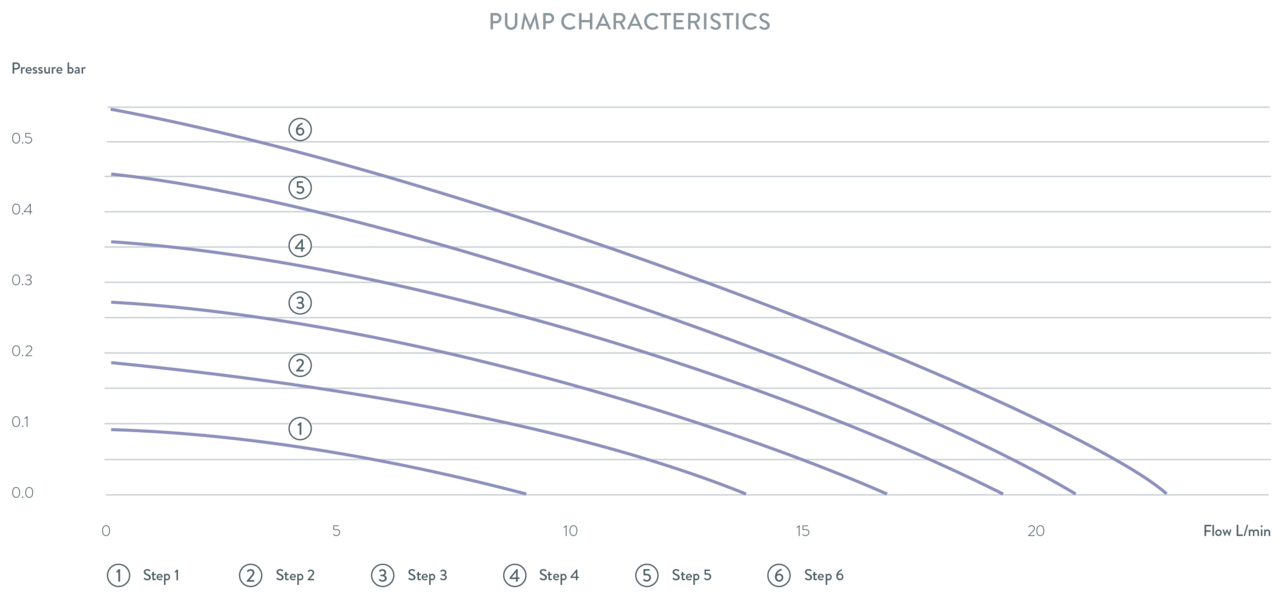

The ECO thermostats come in silver (LCD display) or gold (color TFT display) models, equipped with a mini USB interface as standard. The circulation pump can be adjusted to six levels. The ECO heating thermostat line encompasses transparent baths up to 100 °C as well as immersion thermostats and heating thermostats with stainless steel bath up to 200 °C.

Request quote

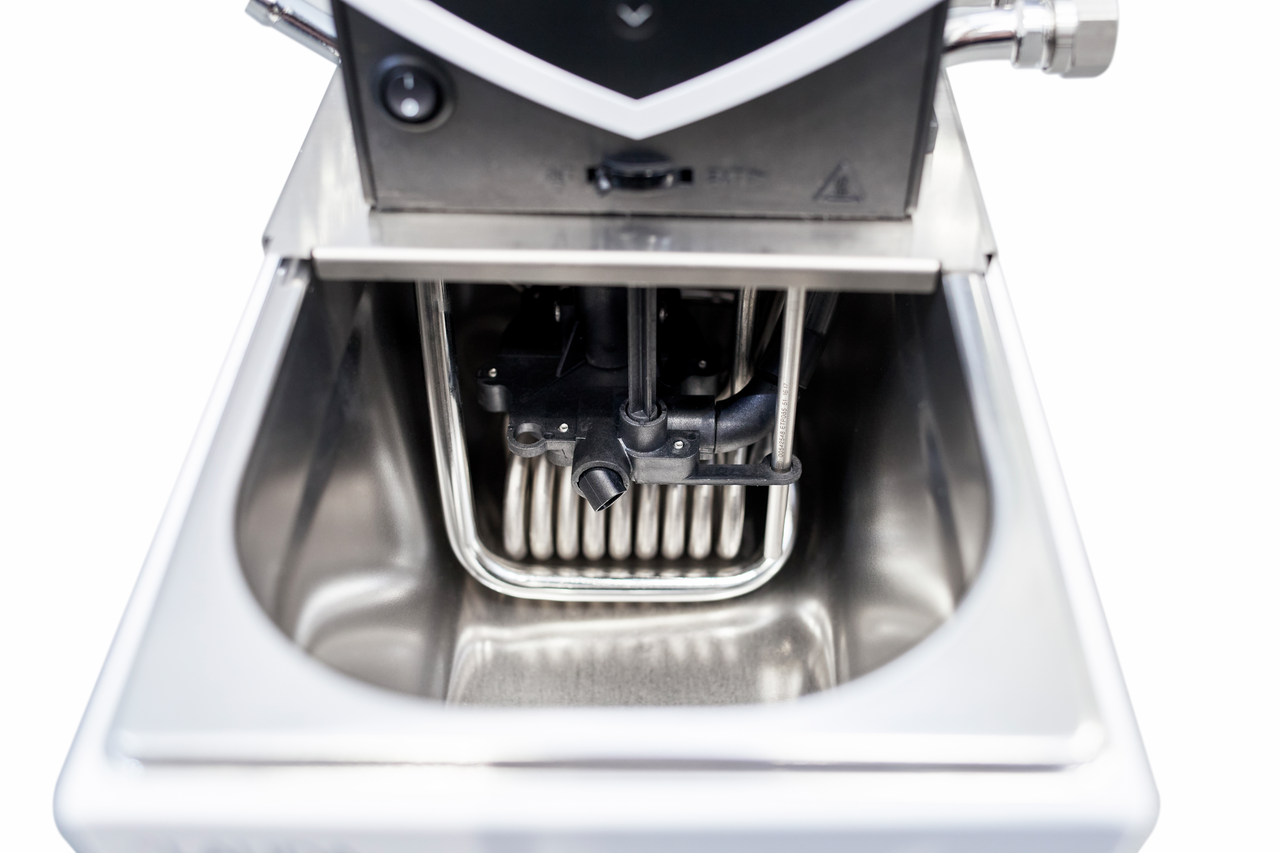

The bath thermostats come equipped with a cooling coil as standard. The E 4 is also equipped with a bath cover and pump connections for external application connections. A drain tap on the back side of the device makes changing the heat transfer liquid in the stainless steel baths easy and safe.

Working temperature min.

20 °C

Working temperature max.

200 °C

Temperature stability

0.01 ± K

	ECO E 40 S	ECO E 4 S	ECO E 25 S	ECO E 20 S	ECO E 10 S	ECO E 40 G	ECO E 4 G	ECO E 25 G	ECO E 20 G	ECO E 10 G
Working temperature min.	20 °C	20 °C	20 °C	20 °C	20 °C	20 °C	20 °C	20 °C	20 °C	20 °C
Working temperature max.	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Temperature stability	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K	0.01 ± K
Bath volume min. / max.	32.0 / 40.0 L	3.0 / 3.5 L	16.0 / 25.0 L	13.0 / 19.0 L	7.5 / 11.0 L	32.0 / 40.0 L	3.0 / 3.5 L	16.0 / 25.0 L	13.0 / 19.0 L	7.5 / 11.0 L
Bath depth	200 mm	150 mm	200 mm	150 mm	150 mm	200 mm	150 mm	200 mm	150 mm	150 mm
Pump pressure max. 50 Hz	0.55 bar	0.55 bar	0.55 bar	0.55 bar	0.55 bar	0.55 bar	0.55 bar	0.55 bar	0.55 bar	0.55 bar
Flow rate max. (pressure) 50 Hz	22 L/min	22 L/min	22 L/min	22 L/min	22 L/min	22 L/min	22 L/min	22 L/min	22 L/min	22 L/min
Interfaces integrated	Mini USB	Mini USB	Mini USB	Mini USB	Mini USB	Mini USB	Mini USB	Mini USB	Mini USB	Mini USB
