Universa product line

The new dimension in temperature control

Universa product line

The innovative Universa product line offers a comprehensive range of bath and circulation thermostats in three performance classes. The Universa ECO, Universa PRO and Universa MAX variants cover all requirements between -90 and 300 °C, from cost-effective entry-level products to powerful professional thermostats. All devices have a Wi-Fi, Ethernet and USB connection as standard, are equipped with speed-controlled compressors, are NRTL-certified and run on natural refrigerants. The cloud-enabled product line provides maximum efficiency with a minimal ecological footprint thanks to complete networking and intelligent process optimization.
Inquire about product line

High-performance, modular, digital, sustainable – bath circulation thermostats for all requirements

Overview of all Universa devices

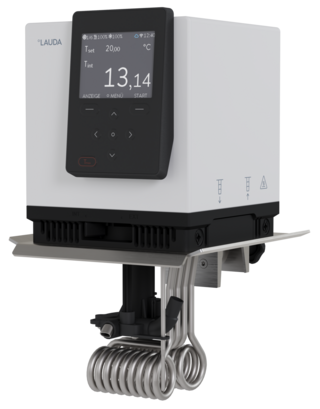

Universa Immersion thermostats

Universa Immersion thermostats

Universa immersion thermostats in the performance classes Universa ECO and Universa PRO

Heating output from 1.5 kW to 2.8 kW

-100
-50
0
50
100
150
200
250
300
30 to 200 °C

Universa Immersion thermostats
Refrigeration technology with natural refrigerants - Icon
Universa Cooling thermostats

Universa Cooling thermostats

Universa cooling thermostats in the performance classes Universa ECO, Universa PRO and Universa MAX

Cooling output from 0.2 kW to 1.6 kW

Heating output from 1.1 kW to 3.7 kW

-100
-50
0
50
100
150
200
250
300
-90 to 200 °C

Universa Cooling thermostats
Universa Heating thermostats

Universa Heating thermostats

Universa heating thermostats in the performance classes Universa ECO, Universa PRO and Universa MAX

Heating output from 1.5 kW to 3.7 kW

-100
-50
0
50
100
150
200
250
300
30 to 300 °C

Universa Heating thermostats

DO YOU NEED FURTHER INFORMATION OR DO YOU HAVE ANY QUESTIONS?


International Area Sales

+49 9343 503-555
E-Mail

Overview of all device types

Select the desired category or working temperature to narrow down the list

Application type

Category

Working temperature (°C)

ProductMin. working tempMax. working tempHeater power max.Cooling output at 20 °C 50 HzMin. / max. bath volumeCompare product
Universa PRO 30 °C 200 °C 2.8 kW
Universa U 4 P 30 °C 200 °C 2.8 kW 3.0 / 5.0 L

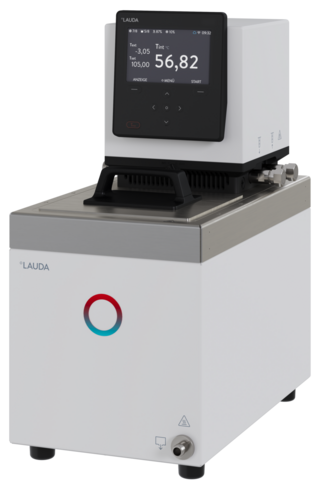

Universa U 8 M 70 °C 300 °C 3.7 kW 5.8 / 8.5 L
Universa U 8 P 40 °C 200 °C 2.8 kW 5.8 / 8.5 L
Universa U 12 M 70 °C 300 °C 3.7 kW 8.5 / 13.0 L
Universa U 16 P 40 °C 200 °C 2.8 kW 11.5 / 17.0 L
Universa U 20 M 65 °C 300 °C 3.7 kW 9.5 / 22.0 L
Universa U 40 M 65 °C 300 °C 3.7 kW 29.0 / 42.0 L
Universa U 40 P 40 °C 200 °C 2.8 kW 27.5 / 41.0 L
Universa U 420 P
Refrigeration technology with natural refrigerants - Icon
 -20 °C 200 °C 2.8 kW 0.2 kW 1.8 / 4.0 L
Universa U 630 P
Refrigeration technology with natural refrigerants - Icon
 -30 °C 200 °C 2.8 kW 0.3 kW 3.2 / 5.7 L
Universa U 635 P
Refrigeration technology with natural refrigerants - Icon
 -35 °C 200 °C 2.8 kW 0.5 kW 3.2 / 5.7 L

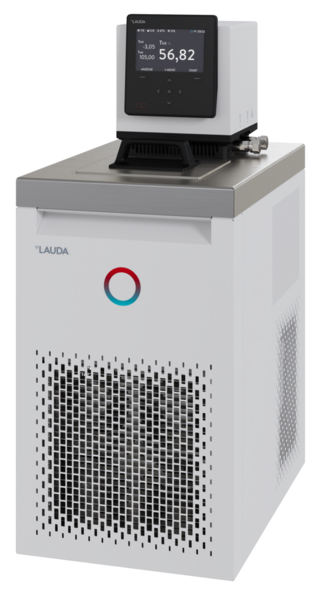

Universa U 845 M
Refrigeration technology with natural refrigerants - Icon
 -45 °C 200 °C 3.7 kW 0.8 kW 5.0 / 8.0 L
Universa U 855 M
Refrigeration technology with natural refrigerants - Icon
 -55 °C 200 °C 3.7 kW 1.6 kW 5.0 / 8.0 L
Universa U 890 M
Refrigeration technology with natural refrigerants - Icon
 -90 °C 200 °C 3.7 kW 0.8 kW 5.0 / 8.0 L
Universa U 1245 P
Refrigeration technology with natural refrigerants - Icon
 -45 °C 200 °C 2.8 kW 0.8 kW 8.5 / 13.0 L
Universa U 1635 P
Refrigeration technology with natural refrigerants - Icon
 -35 °C 200 °C 2.8 kW 0.5 kW 11.0 / 16.5 L
Universa U 1645 M
Refrigeration technology with natural refrigerants - Icon
 -45 °C 200 °C 3.7 kW 1.6 kW 10.5 / 16.5 L
Universa U 2040 M
Refrigeration technology with natural refrigerants - Icon
 -40 °C 200 °C 3.7 kW 0.8 kW 9.0 / 21.0 L
Universa U 4230 M
Refrigeration technology with natural refrigerants - Icon
 -30 °C 200 °C 3.7 kW 0.8 kW 19.0 / 47.0 L
  • 1

Applications and industry examples for LAUDA thermostats

Research & development labs

Research & development labs

Temperature control in research and development is especially important in the sample preparation and quality assurance sectors.

To the application example
Biotechnology

Biotechnology

Temperature control is essential when it comes to the quality of research and production results.

To the application example
Chemical industry

Chemical industry

Process technology and reactor temperature control are typical areas where thermostats are required.

To the application example
