Universa Immersion thermostats

Universa immersion thermostats in the performance classes Universa ECO and Universa PRO
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.

Immersion thermostats for flexible temperature control in the laboratory

Universa immersion thermostats are available in the performance classes Universa ECO (available from Q4/2025) and Universa PRO. While Universa ECO is designed for non-flammable media with a heating capacity of 2 kW, Universa PRO can be operated up to 200 °C with a heating capacity of 2.5 kW.

All Universa devices are equipped with Ethernet, USB and Wi-Fi interfaces as standard and are designed for remote control with the LAUDA Command (Professional) App and remote maintenance using LAUDA.LIVE Services.

With the screw clamp included as standard, the Universa immersion thermostats can be used with bath vessels of your choice with a wall thickness of up to 30 mm and a bath depth of at least 150 mm.

Overview

Benefits and added value

  • Flexible networking via WLAN, integrated interfaces and optional communication modules
  • Command App for wireless operation
  • Can be combined with transparent baths
  • With protective plate as standard to protect against vapors
  • With integrated mounting device as standard

Working range

LAUDA Universa immersion thermostats with advanced electronics guarantee precise control accuracy.

Min. working temperature

Min. working temperature

30 °C

Max. working temperature

Max. working temperature

200 °C

Temperature stability

Temperature stability

0.02 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductMin. working tempMax. working tempHeater power max.Integrated interfacesCompare product
Universa PRO 30 °C 200 °C 2.8 kW Details

Device dimensions

195 x 234 x 333 mm

Universa PRO

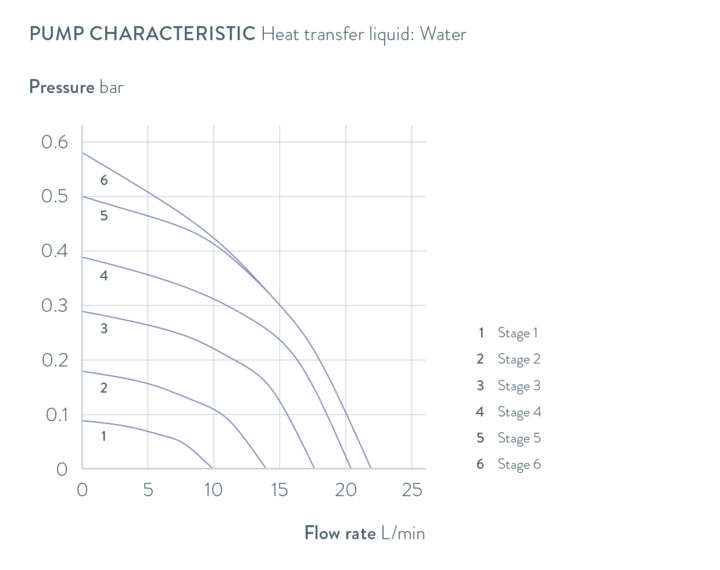

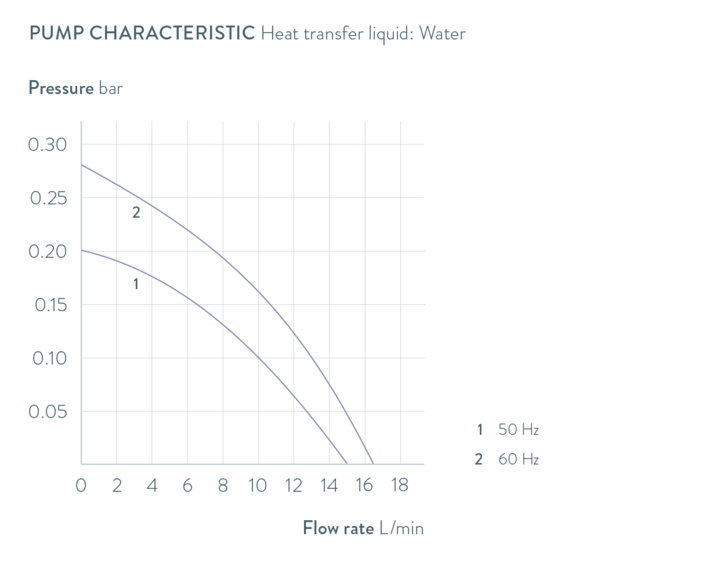

Characteristics

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Universa Standard rail Accessories Operating instruction
English
PDF 164,17 kB Download document Download document
Configuration WLAN Universa
(pskCfg.txt)
- Installation manual
English
TXT 237 B Download document Download document
Universa MAX/PRO Immersion thermostats Operating instruction
English
PDF 12,49 MB Download document Download document
Universa MAX/PRO Bath thermostats Operating instruction
English
PDF 12,49 MB Download document Download document
Universa Standard rails Accessories Operating instruction
English
PDF 164,17 kB Download document Download document

Accessories
