Universa Heating thermostats

Universa heating thermostats in the performance classes Universa ECO, Universa PRO and Universa MAX
Request advising
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Heating thermostats

Highly dynamic temperature control with precise temperature stability

Universa heating thermostats are available in three versions – ECO (available from Q4/2025), PRO and MAX. With a heating capacity of 1.0 to 2.0 kW at 230 V, the ECO thermostats offer an efficient and stable entry into the world of temperature control. Universa PRO meets professional requirements with a heating output of up to 2.5 kW at 230 V. As a premium version, Universa MAX rounds off the range with a heating output of up to 3.6 kW at 230 V.

Bath vessels with a filling volume of 4 to 40 liters are available for the three variants. Thanks to the modular design, numerous variants are possible, which can be selected to suit every application.

The Universa product line has Ethernet, USB and Wi-Fi connections as standard and can be expanded with additional interface modules depending on the variant. All devices are available as Wi-Fi-capable models (not available in all countries), which can simplify the connection to mobile end devices for control purposes.

Overview

Benefits and added value

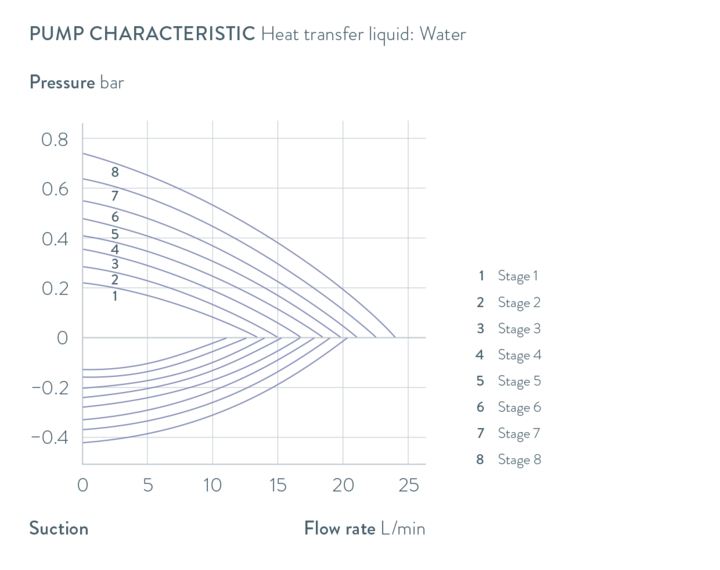

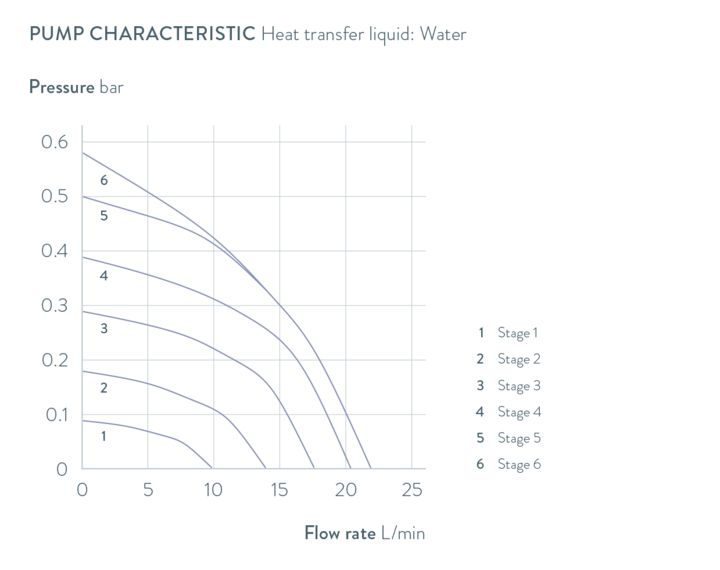

  • The pump performance of the Universa device variants systematically build on each other - from pressure pumps to speed-controlled pressure pumps to powerful speed-controlled pressure/suction pumps. This graduation enables the optimum selection for every application.
  • Intelligent remote control via integrated web server using the LAUDA Command App or browser, secured by PKI and 2-factor authentication
  • Drain valve on the front of the device for easy and safe changing of the heat transfer liquid
  • Adaptive bath edge ventilation prevents condensation, protects against water ingress and vapors

Working range

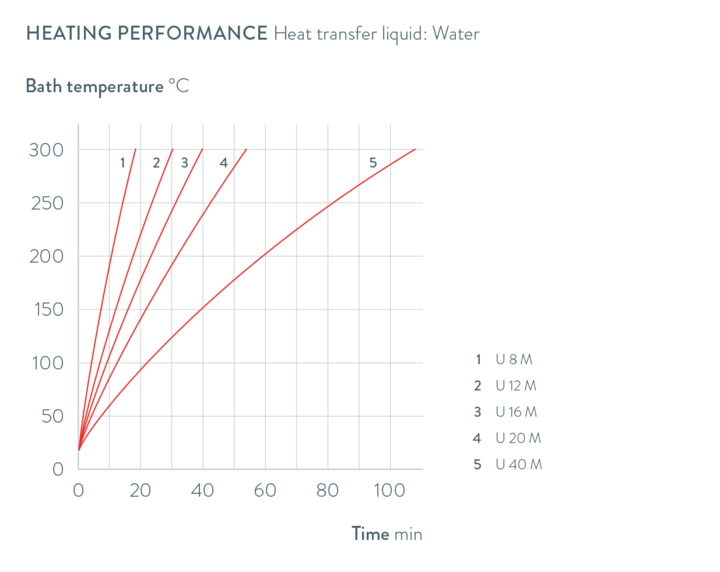

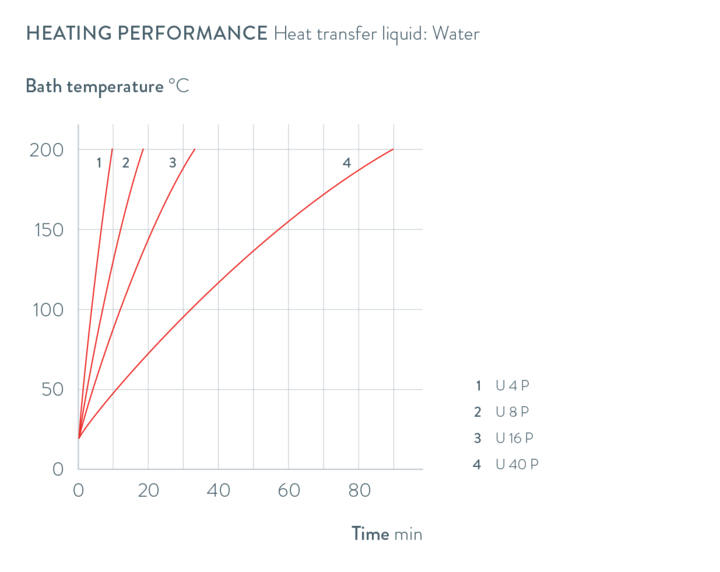

The Universa heating thermostats with bath volumes between 4 and 40 L and heating outputs between 2 kW and 3.6 kW offer full flexibility and a wide range of options for all applications.

Min. working temperature

Min. working temperature

30 °C

Max. working temperature

Max. working temperature

300 °C

Temperature stability

Temperature stability

0.01 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductMin. working tempMax. working tempHeater power max.Integrated interfacesCompare product
Universa U 4 P 30 °C 200 °C 2.8 kW Details
Universa U 8 M 70 °C 300 °C 3.7 kW Details
Universa U 8 P 40 °C 200 °C 2.8 kW Details
Universa U 12 M 70 °C 300 °C 3.7 kW Details
Universa U 16 P 40 °C 200 °C 2.8 kW Details
Universa U 20 M 65 °C 300 °C 3.7 kW Details
Universa U 40 M 65 °C 300 °C 3.7 kW Details
Universa U 40 P 40 °C 200 °C 2.8 kW Details

Device dimensions

380 x 850 x 499 mm

Universa U 40 M

280 x 450 x 617 mm

Universa U 20 M

230 x 400 x 497 mm

Universa U 8 M

280 x 450 x 497 mm

Universa U 12 M

280 x 550 x 476 mm

Universa U 16 P

230 x 400 x 476 mm

Universa U 8 P

190 x 330 x 436 mm

Universa U 4 P

380 x 850 x 478 mm

Universa U 40 P

Characteristics

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Universa Standard rail Accessories Operating instruction
English
PDF 164,17 kB Download document Download document
Configuration WLAN Universa
(pskCfg.txt)
 - Installation manual
English
TXT 237 B Download document Download document
Universa MAX/PRO Immersion thermostats Operating instruction
English
PDF 11,98 MB Download document Download document
Universa MAX/PRO Bath thermostats Operating instruction
English
PDF 11,98 MB Download document Download document
Universa Standard rails Accessories Operating instruction
English
PDF 164,17 kB Download document Download document
Universa Bath thermostats Brochure
English
PDF 4,57 MB Download document Download document
Universa Immersion thermostats Brochure
English
PDF 4,57 MB Download document Download document

Accessories

Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder

Do you need more information or do you have any questions?


International Area Sales

+49 9343 503-555
E-Mail
