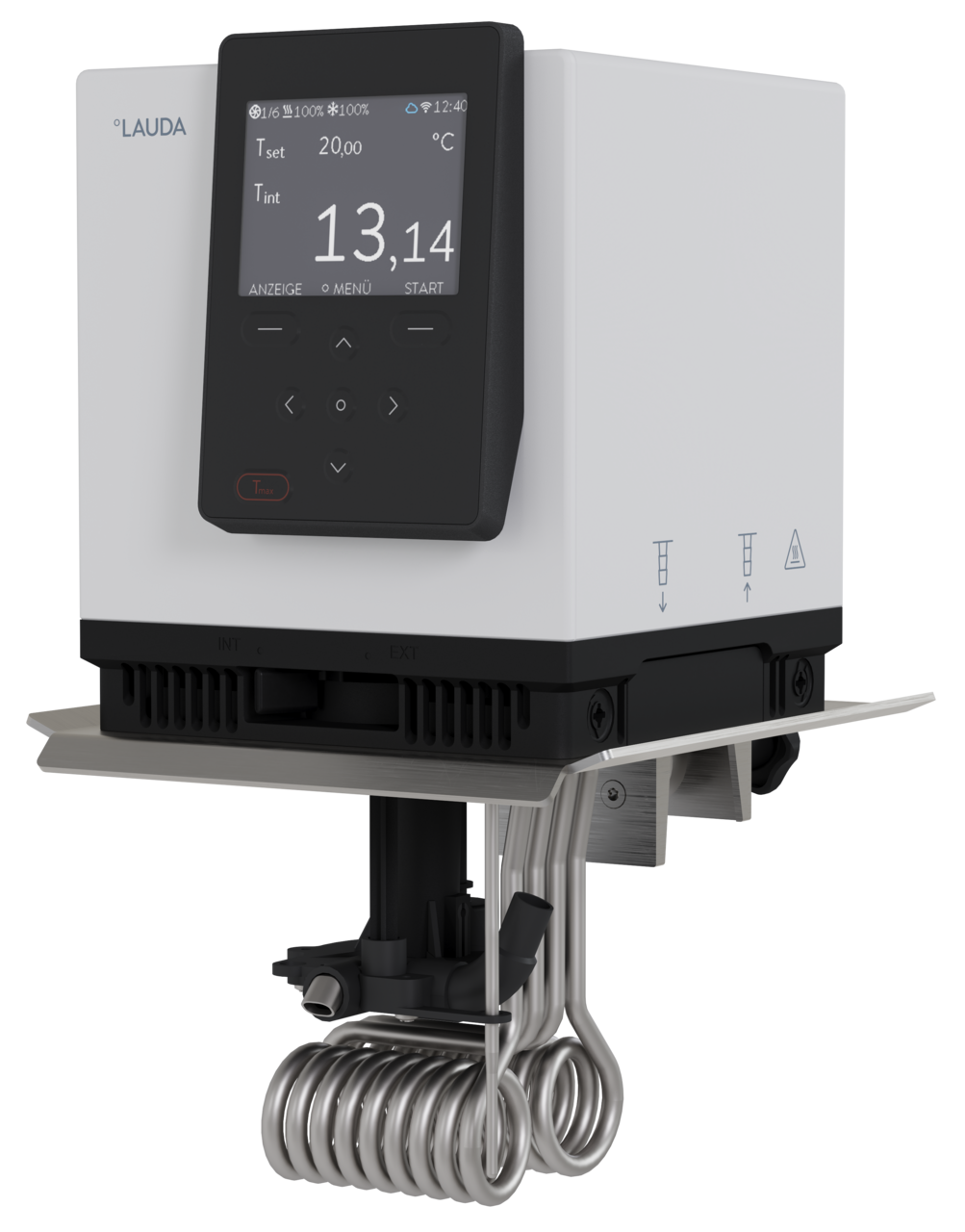

Universa PRO

LAUDA Universa immersion thermostats with advanced electronics guarantee precise control accuracy.

Part no. : L003890
Inquire about product
Immersion thermostats Universa PRO
WLAN capable - Icon
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Immersion thermostats

Features

Bath circulation thermostat with advanced electronics ensures precise control accuracy
Focus on safety: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning.
Adaptive bath edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect electronics. To increase operational safety and extend service life.
Flexible networking: Modern connectivity through integrated Ethernet and USB interfaces as standard, plus eleven optional interface modules for versatile communication solutions.
Integrated Wi-Fi communication: The device may only be imported and used in certified countries and regions: United States of America, Canada, EU including the UK and Switzerland, and India.
Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.
Efficient vario pump with six adjustable performance levels. The flexible flow distribution for internal and external circulation ensures optimum volume flow and pressure.
Features include programmer, calibration options and weekly scheduler for versatile and precise process control.
Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.
Clear overview, intuitive operation: The 3,5-inch colour TFT display provides a progression graph, offers a clear menu navigation in six languages and easy to read operating status icons - easily controlled via cursor and soft keys.
Easily accessible front switch on the control head allows the pump output to be adjusted during operation.
Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.
Comprehensive safety concept: - Reliable low-level protection with float technology, - Adjustable overtemperature protection with acoustic alarm, - Smart temperature control media management with automatic limit value adjustment. For reliable operation and improved safety of your valuable samples.

Working range

Min. working temperature

30 °C

Max. working temperature

200 °C

Temperature stability

0.02 ± K

Technical data (according to DIN 12876)

Working temperature range
30 ... 200 °C
Working temperature range with water cooling
20 ... 200 °C
Operating temperature range
-30 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.02 ± K
Current consumption
12 A
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
In / Outlet connection thread (outside)
M16 x 1
Dimensions (WxDxH)
195 x 234 x 333 mm
Weight
6 kg
Power supply
200-240 V, 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
Download Data sheet Universa PRO

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
LAUDA Command App Bath thermostats Software
English
EXE 65,02 MB Download document Download document
LAUDA Command App Bath thermostats Brochure
English
PDF 1,43 MB Download document Download document
Configuration WLAN Universa
(pskCfg.txt)
 - Installation manual
English
TXT 237 B Download document Download document
Universa MAX/PRO Immersion thermostats Operating instruction
English
PDF 12,13 MB Download document Download document
Universa MAX/PRO Bath thermostats Operating instruction
English
PDF 12,13 MB Download document Download document
Universa Standard rails Accessories Operating instruction
English
PDF 164,17 kB Download document Download document
Universa Bath thermostats Brochure
English
PDF 4,61 MB Download document Download document
Universa Immersion thermostats Brochure
English
PDF 4,61 MB Download document Download document
Universa Jet pipe Accessories Operating instruction
English
PDF 4,38 MB Download document Download document

Accessories

Quick coupling set
Quick coupling set
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
