Universa U 4 P

The Universa heating thermostats with bath volumes between 4 and 40 L and heating outputs between 2 kW and 3.6 kW offer full flexibility and a wide range of options for all applications.

Order no. : L004223
Inquire about product

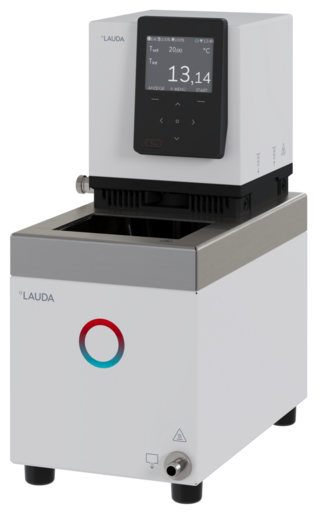

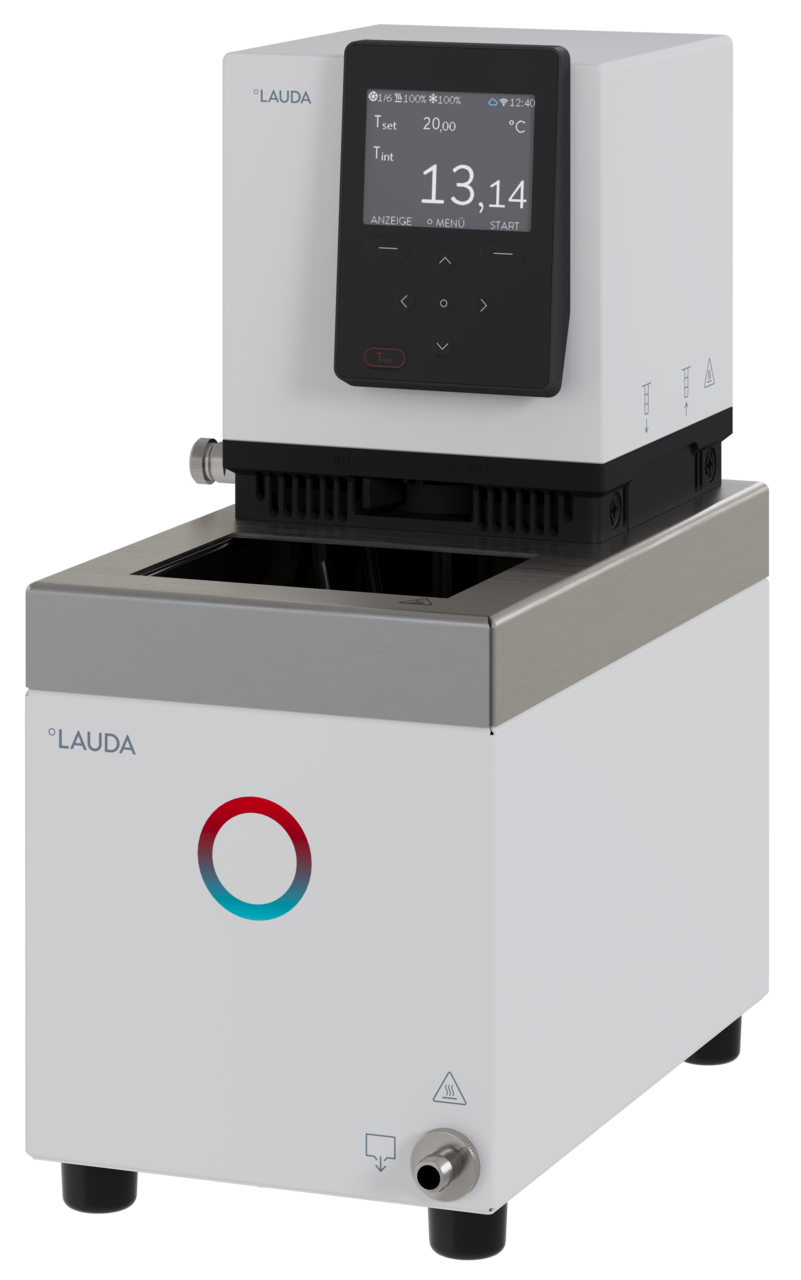

Heating thermostats Universa U 4 P
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Heating thermostats

Features

Bath circulation thermostat with advanced electronics ensures precise control accuracy
Focus on safety: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning.
Adaptive bath edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect electronics. To increase operational safety and extend service life.
Flexible networking: Modern connectivity through integrated Ethernet and USB interfaces as standard, plus ten optional interface modules for versatile communication solutions.
Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.
Efficient vario pump with six adjustable performance levels. The flexible flow distribution for internal and external circulation ensures optimum volume flow and pressure.
Features include programmer, calibration options and weekly scheduler for versatile and precise process control.
Comprehensive safety concept: - Reliable low-level protection with float technology, - Adjustable overtemperature protection with acoustic alarm, - Smart temperature control media management with automatic limit value adjustment. For reliable operation and improved safety of your valuable samples.
Clear overview, intuitive operation: The 3,5-inch colour TFT display provides a progression graph, offers a clear menu navigation in six languages and easy to read operating status icons - easily controlled via cursor and soft keys.
Easily accessible front switch on the control head allows the pump output to be adjusted during operation.
Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.

Working range

Min. working temperature

30 °C

Max. working temperature

200 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range
30 ... 200 °C
Working temperature range with water cooling
20 ... 200 °C
Operating temperature range
-30 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Current consumption
12 A
Bath opening (WxD)
130 x 100 mm
Min. / max. bath volume
3.0 / 5.0 L
Max. discharge pressure
0,6 bar
Max. pump flow pressure
22 L/min
In / Outlet connection thread (outside)
M16 x 1
Dimensions (WxDxH)
190 x 330 x 436 mm
Weight
12 kg
Power supply
200-240 V, 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
