PRO RP 290 EC

The PRO heating circulation thermostats are designed for external applications up to 250°C. The low filling volume permits rapid heating up in the connected application. The compact construction permits space-saving installation of the thermostats. An integrated cooling coil, fitted as standard, provides cooling. The PRO cooling circulation thermostats are ideal for external applications where rapid temperature changes are required. The cooling output of 0.6 and 0.8 kW, combined with a very low filling volume permit these rapid temperature changes. All types are fitted with a pressure-suction pump. Hybrid cooling of the refrigerating machine permits cooling using ambient air or, in addition, using cooling water.

Order no. : L002660
Inquire about product
Circulation and process thermostats PRO RP 290 EC
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Circulation and process thermostats

Features

Thermostatic circulator with latest microprocessor technology. Integrated cooling system
Command console can be detached and used as remote control
Timer und count-down-function
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Tower design with small footprint
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Large 5,7" Multi-Touch-Color display
User administration for up to 20 user
EasyUse system for simple operation of the whole unit

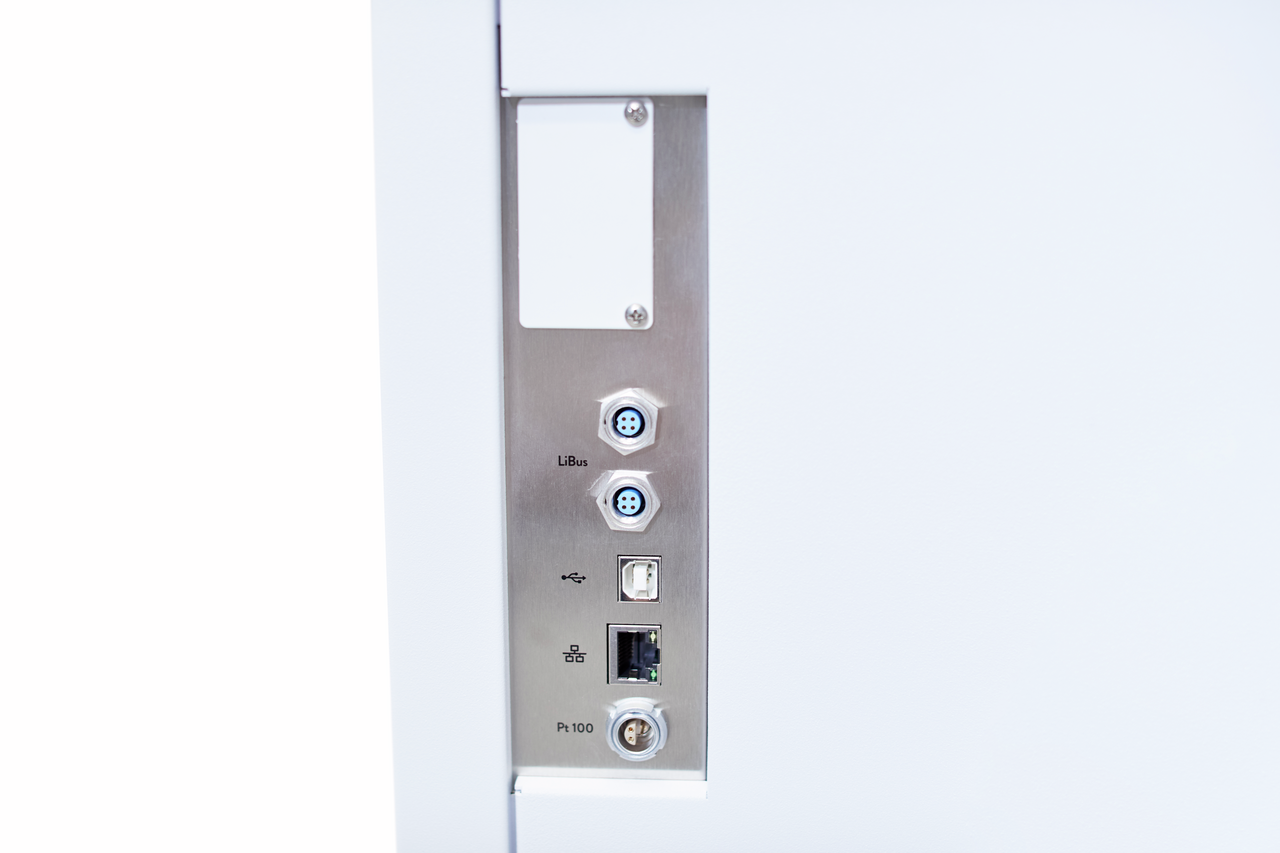

USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with multi touch display
Data in- and export via USB
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Programmer with up to 100 programs, up to 50 segments each

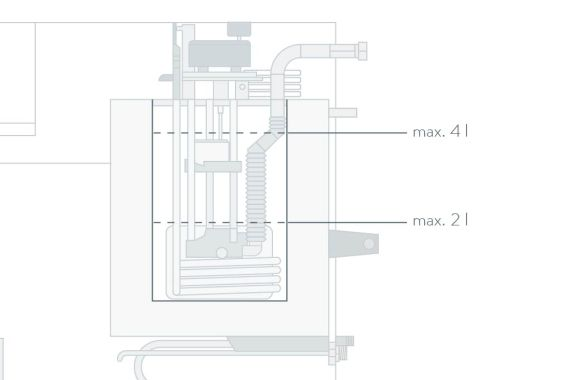

Low filling volume enables rapid changes in temperature
Hybrid cooling system: (heat removal complementary with cooling water)

Working range

Min. working temperature

-90 °C

Max. working temperature

200 °C

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
-90 ... 200 °C
Operating temperature range
-90 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
2.3 kW
Max. power consumption
3.5 kW
Current consumption
16 A
Max. discharge pressure
0,7 bar
Pump suction max.
0,4 bar
Max. pump flow pressure
22 L/min
In / Outlet connection thread (outside)
M16 x 1
In / Outlet Ø olives
13 mm
Min. filling volume
2.4 L
Max. filling volume
4.4 L
Dimensions (WxDxH)
390 x 600 x 685 mm
Weight
81 kg
Power supply
208-220 V; 60 Hz
Power plug
Power cord with plug (NEMA 6-20P)
Certification
NRTL according to UL 1995:2018, CSA C22.2 No.236:2015
TemperaturePump levelTempering mediumCooling capacity 60 Hz
20 °C8Ethanol0.8 kW
10 °C8Ethanol0.77 kW
0 °C8Ethanol0.74 kW
-10 °C8Ethanol0.72 kW
-20 °C4Ethanol0.7 kW
-30 °C4Ethanol0.68 kW
-40 °C4Ethanol0.64 kW
-50 °C4Ethanol0.56 kW
-60 °C4Ethanol0.39 kW
-70 °C4Ethanol0.21 kW
-80 °C4Ethanol0.09 kW
-90 °C2Ethanol0.01 kW
