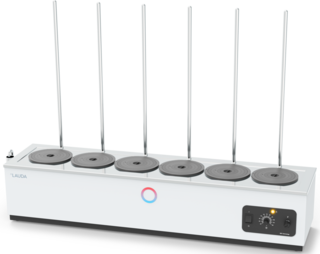

Hydro H 9 V

LAUDA Hydro vaporization baths operate in a temperature range from 25 to 100 °C. The opening diameter of the water bath can be variably changed in approx. 20 mm steps by means of the multipart ring set. The models H 11 V, H 19 V were specially designed for protected working use in fume cupboards. The housings are made of stainless steel to allow evaporation work with chemically aggressive media.

Order no.: L003074

Features

Vaporization water bath for gentle steaming work
Water deficiency protection
All hole covers consist of a multi-part ring set and are removable.
Temperature adjustment via rotary knob with temperature scale
Adjustable water level regulator, sieve bottom and ring set as standard
Multi-piece ring set made of heat-resistant plastic
1-point temperature controller
Bath interior, cover, sieve plate and heating element are made of stainless steel.
Support rods (length 600 mm, diameter 12 mm), made of stainless steel, are included as standard.

Working range

Working temperature min.

25 °C

Max. working temperature

100 °C

Temperature stability

3 ± K

Technical data (according to DIN 12876)

Working temperature range
25 ... 100 °C
Ambient temperature range
10 ... 40 °C
Temperature stability
3 ± K
Heater power max.
1.5 kW
Max. power consumption
1.5 kW
Power consumption
16 A
Size of bath (Ø)
131 mm
Number of bath openings
6
Dimensions (WxDxH)
1010 x 270 x 192 mm
weight_PIM
18 kg
Power supply
115 V; 60 Hz
Power plug
Power cord with plug (NEMA 5-15P)
