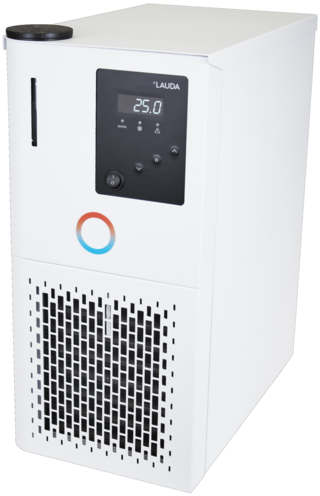

Microcool MC 350

The compact circulation chiller MC 350 fits effortlessly on a lab bench. Somewhat larger models are also available having 600 and 1200 watts of cooling capacity and which can be positioned on the floor under a lab bench to save space.

Part no. : L004112
Inquire about product
Circulation chillers Microcool MC 350
Refrigeration technology with natural refrigerants - Icon
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Circulation chillers

Features

Circulation chiller
Fully electronic continuous controller
RS 232 interface
Cooling capacity adjustment by solenoid valve control including compressor on-off control
Operates with non flammable liquids (water,water/glycol)

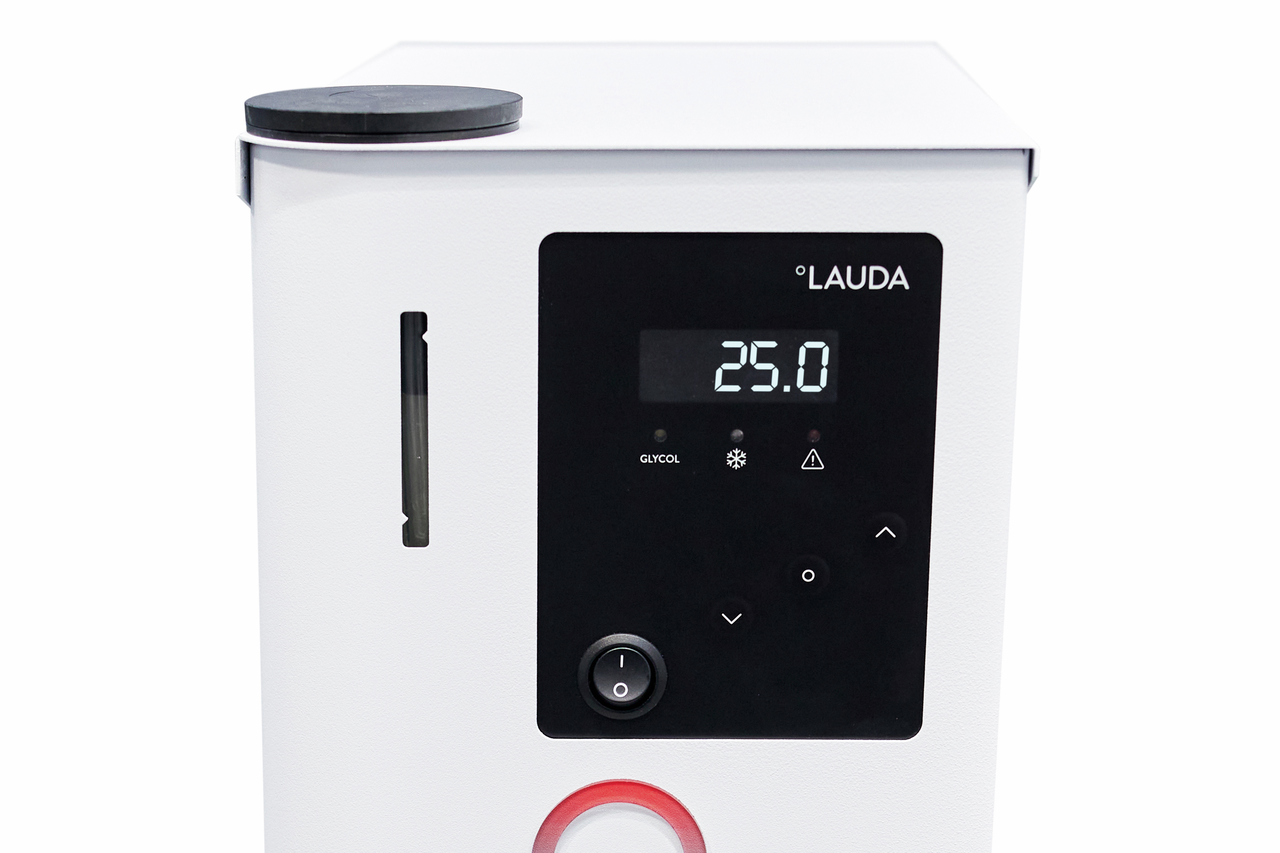

1-line LED display for display of actual or set temperature
Temperature protection for the pump windings, lighted level indication and low level alarm
Auto-Start-Timer and Auto-Shut-Down function
Utilizes natural refrigerants
User-friendly menu guidance with simplest 3-key operation
Magnetically coupled block pump
Filler opening on top, outlet connection on the backside
Condenser cooling Air

Working range

Min. working temperature

Min. working temperature

-10 °C

Max. working temperature

Max. working temperature

40 °C

Temperature stability

Temperature stability

0.5 ± K

Technical data (according to DIN 12876)

Working temperature range
-10 ... 40 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.5 ± K
Max. discharge pressure
0,4 bar
Max. pump flow pressure
16 L/min
In / Outlet connection thread (outside)
Ø 10 mm
Min. filling volume
4 L
Max. filling volume
7 L
Dimensions (WxDxH)
240 x 400 x 500 mm
Weight
30 kg
Noise level
57 dB(A)
Net weight
30.4 kg
Max. power consumption
0.34 kW
Current consumption
1.7 A
Power supply
220 V; 60 Hz / 230 V; 50 Hz
Power plug
Power cord with angled plug (CEE7/7)
TemperatureTempering mediumCooling capacity 50 HzCooling capacity 60 Hz
40 °CWaterglycol0.35 kW0.35 kW
20 °CEthanol0.35 kW0.35 kW
10 °CEthanol0.27 kW0.27 kW
0 °CEthanol0.2 kW0.2 kW
-10 °CEthanol0.12 kW0.12 kW
Download Data sheet Microcool MC 350
Oops, an error occurred! Code: 2026040103484881428a85

Accessories

EPDM tube
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
