Circulation chiller for reliable continuous operation in laboratory and research applications from -10 to 40°C
Compact circulation chiller with excellent price-performance ratio. The easy-to-operate Microcool circulating chiller line includes four compact models with large LED display and membrane keyboard and offers cooling output from 0.25 to 1.2 kW.
The highlight of these devices is the premium quality block pump with magnetic coupling – unique to this price category: Magnetic coupling of pump and electric motor prevents any kind of seal issue from arising on the pump shaft.
The illuminated sight glass enables quick detection of the fill level. Furthermore, the Microcool devices feature an RS-232 interface and alarm contact as standard equipment.
Overview
Benefits and added value
-
Auto-start timer and auto shutdown function
-
Filling opening at the top, drain connection at the rear
-
Cooling output adapted via solenoid valve control, including automatic compressor control
Working range
The compact circulation chiller MC 250 and MC 350 fit effortlessly on a lab bench. Somewhat larger models are also available having 600 and 1200 watts of cooling capacity and which can be positioned on the floor under a lab bench to save space.
Working temperature min.
-10 °C
Max. working temperature
40 °C
Temperature stability
0.5 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
| Product | Min. temperature range | Max. working temp | Max. discharge pressure 50 Hz | Cooling output at 20 °C 50 Hz | Compare product | |
|---|---|---|---|---|---|---|
| Microcool MC 250 | -10 °C | 40 °C | 0.35 bar | 0.25 kW | Details | |
| Microcool MC 350 | -10 °C | 40 °C | 0.35 bar | 0.35 kW | Details | |
| Microcool MC 600 | -10 °C | 40 °C | 1.3 bar | 0.6 kW | Details | |
| Microcool MC 1200 | -10 °C | 40 °C | 1.3 bar | 1.2 kW | Details |
Device dimensions

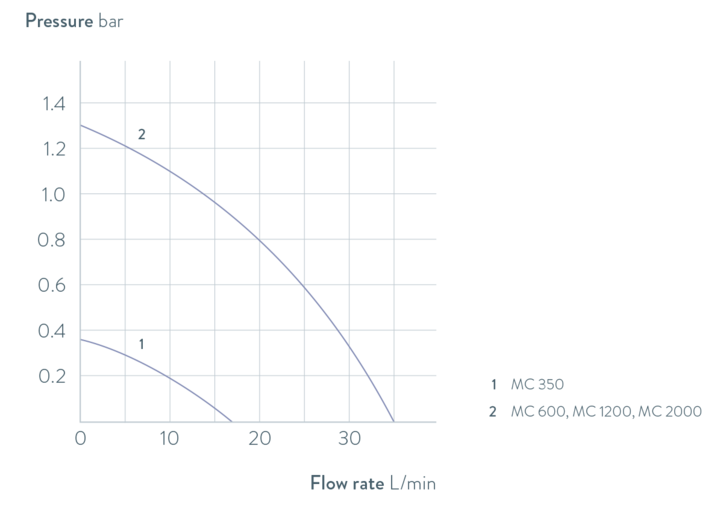

Characteristics
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
|
Chapter Circulation chillers |
Circulation chillers | Brochure |
Englisch
|
2,48 MB |
Download document
|
|
|
Microcool |
Circulation chillers | Operating instructions |
Englisch
|
2,48 MB |
Download document
|
