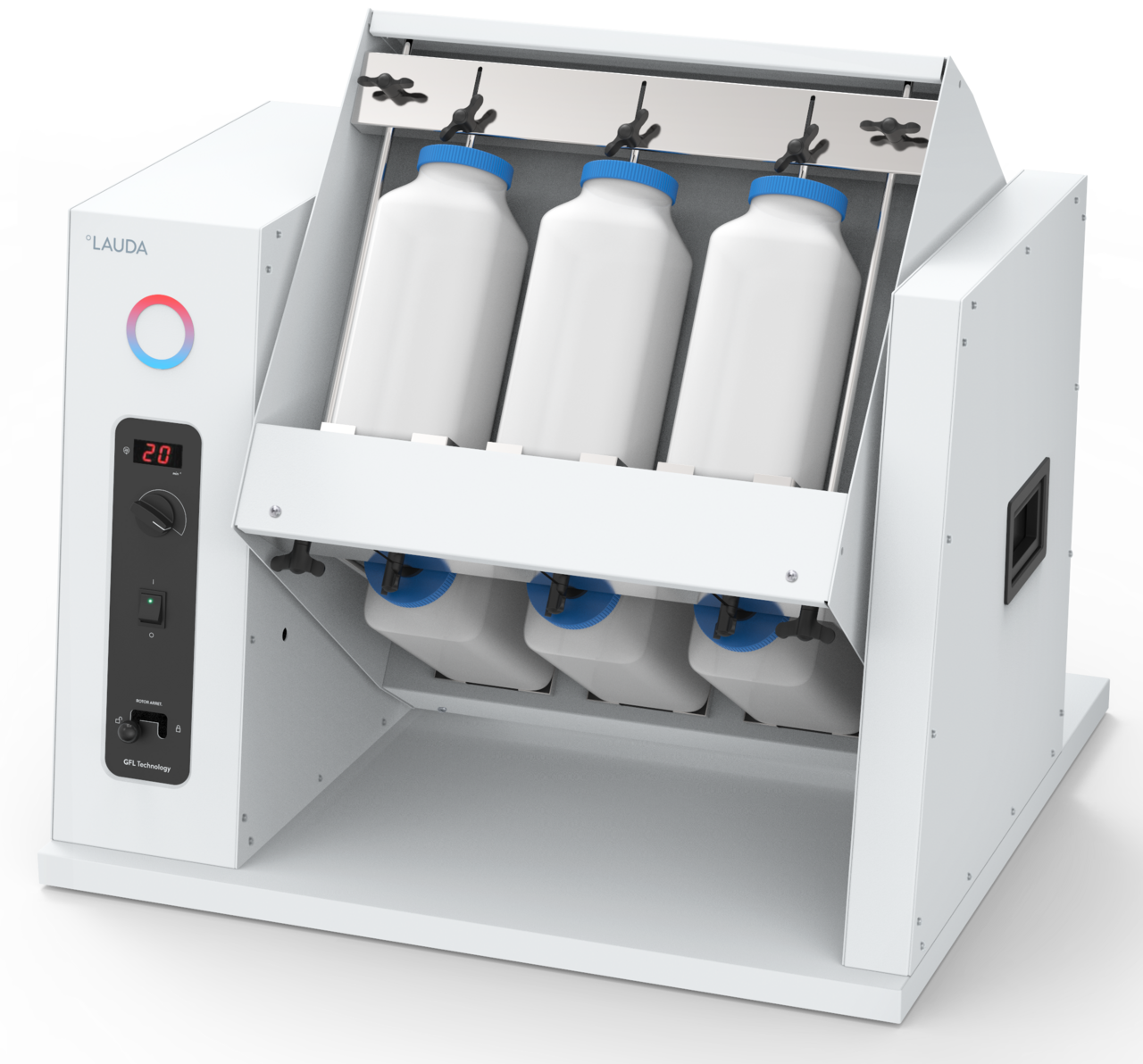

Varioshake VS 20 OH

LAUDA Varioshake overhead shakers have a rotating rack with four levels, each of which can be filled with up to three vessels with a height of up to 270 mm. A height-adjustable clamping device provides secure attachment.

Order no.: L003064

Features

Shaker with overhead rotation, heavy duty, ideal for mixing powders and pasty samples
Clear control panel for easy operation with rotary knobs
Drive by an overload-protected DC motor
Constant speed, independent of load
Speed display
Capacity at uniform loading: 12 vessels, round or square
Rotating rack with ball bearings on both sides with safe drive via slide hub
Excellent for continuous use
Electronic speed control, stepless, gentle start-up
Vessels up to 110 mm Ø and 270 mm height, height adjustable clamp holders
Height-adjustable holding devices made of stainless steel for safe, firm clamping of the vessels
Outer housing made of electrolytically galvanized sheet steel, powder-coated

Technical data (according to DIN 12876)

Ambient temperature range
10 ... 40 °C
Max. power consumption
0.1 kW
Shaking frequency
1 ... 20 1/min
Max. load
20 kg
Dimensions (WxDxH)
770 x 700 x 715 mm
Weight
68 kg
Power plug
Power cord with angled plug (CEE7/7)
Power supply
230 V; 50/60 Hz
