External Bypass
Features

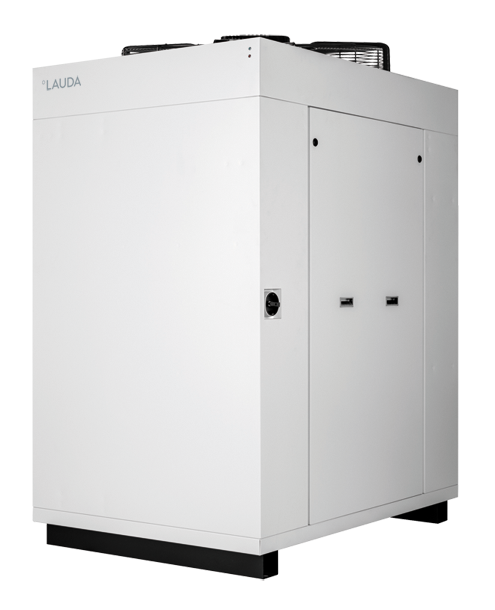

Highly efficient industrial chiller
LCD remote control with 8 m cable
Operation possible via web server
Electronic 2-point temperature control
Protection level IP 54 (for outdoor installation)
Industrial block pump with high pressure and high flow rate
Integrated water filter
Integrated Ethernet interface
Inlet and outlet water connections in stainless steel
Operates with non flammable liquids (water,water/glycol)
Meeting the energy efficiency requirements of the EcoDesign directive 2009/125/EC
Condenser cooling Air
Working range
Min. working temperature
-10 °C
Max. working temperature
35 °C
Temperature stability
0.5 ± K
Technical data (according to DIN 12876)
Working temperature range
-10 ... 35 °C
Ambient temperature range
-15 ... 50 °C
Temperature stability
0.5 ± K
Max. filling volume
210 L
Pump_pressure_max
6,5 bar
Max. pump flow pressure
250 L/min
Nominal pump flow rate
150 L/min
In / Outlet connection thread (inside)
Rp 1 1/2
Dimensions (WxDxH)
1040 x 1435 x 1890 mm
Weight
429 kg
Noise level
68.7 dB(A)
Power supply
400 V; 3/PE; 50 Hz
Power plug
---
| Temperatur | Kälteleistung 50 Hz |
|---|---|
| 25 °C | 67,5 kW |
| 20 °C | 65,6 kW |
| 15 °C | 59,4 kW |
| 10 °C | 51,2 kW |
| 5 °C | 43,7 kW |
| 0 °C | 36,4 kW |
| -5 °C | 30,4 kW |
| -10 °C | 25,2 kW |
