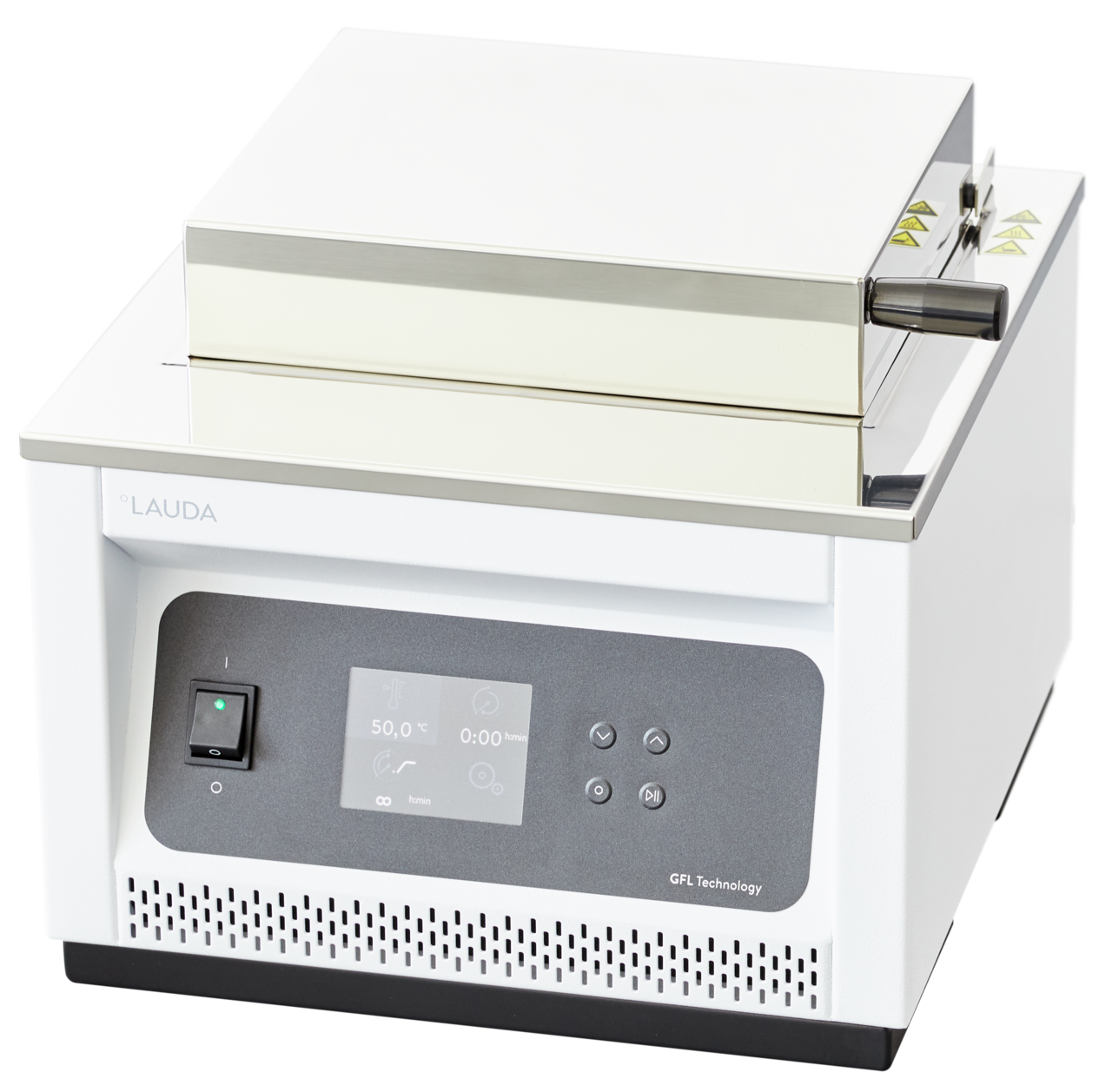

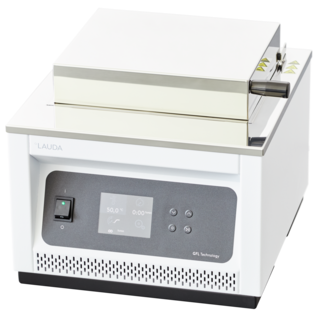

Hydro H 8

LAUDA Hydro water baths made of high-quality stainless steel offer the right bath depth and opening for every application with bath volumes from 4 to 41 litres. All water baths offer a temperature range of up to 100 °C with a temperature constancy of ±0.1 K, so that applications in the boiling range are also possible. A TFT colour display ensures intuitive operation with a temperature display in °C and °F.

Part no. : L002998
Inquire about product
Water baths Hydro H 8
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Water baths

Features

Simple to operate water bath
Setting the timer's time values in hours (h) and minutes (min).
Adjustable trigger points for over- and under-temperature alarms up to max. +/- 10 K
Optical and acoustic alarm for low-level and over/under temperature
Three application-specific timer functions.
Heat insulating lid made of stainless steel, double-walled with inner curvature
TFT display with clear display of all process data
Membrane keypad with concise symbols
Temperature display can be switched from °C to °F
as well as for sensor break/short-circuit
Bath interior, cover, sieve plate and heating element are made of stainless steel.
prevents condensate from dripping back into the vessels
Setting and displaying temperature values in increments of 0.1°C.
Digital setpoint adjustment
1-point temperature controller
Electronic monitoring of the temperature controller
Bath vessel with drain valve
Lid and perforated floor as standard.

Working range

Min. working temperature

Min. working temperature

25 °C

Max. working temperature

Max. working temperature

100 °C

Temperature stability

Temperature stability

0.1 ± K

Technical data (according to DIN 12876)

Working temperature range
25 ... 100 °C
Ambient temperature range
10 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
1 kW
Min. / max. bath volume
3.8 / 7.0 L
Dimensions (WxDxH)
340 x 395 x 275 mm
Weight
10 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with plug (GB2099, 15934)
