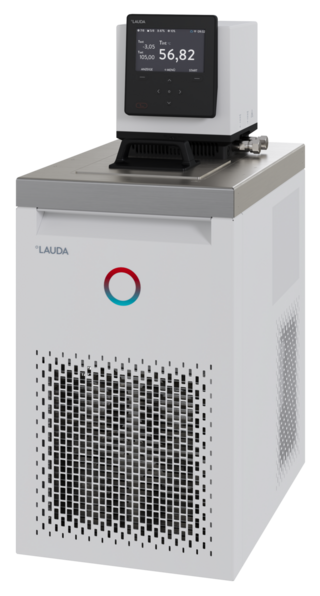

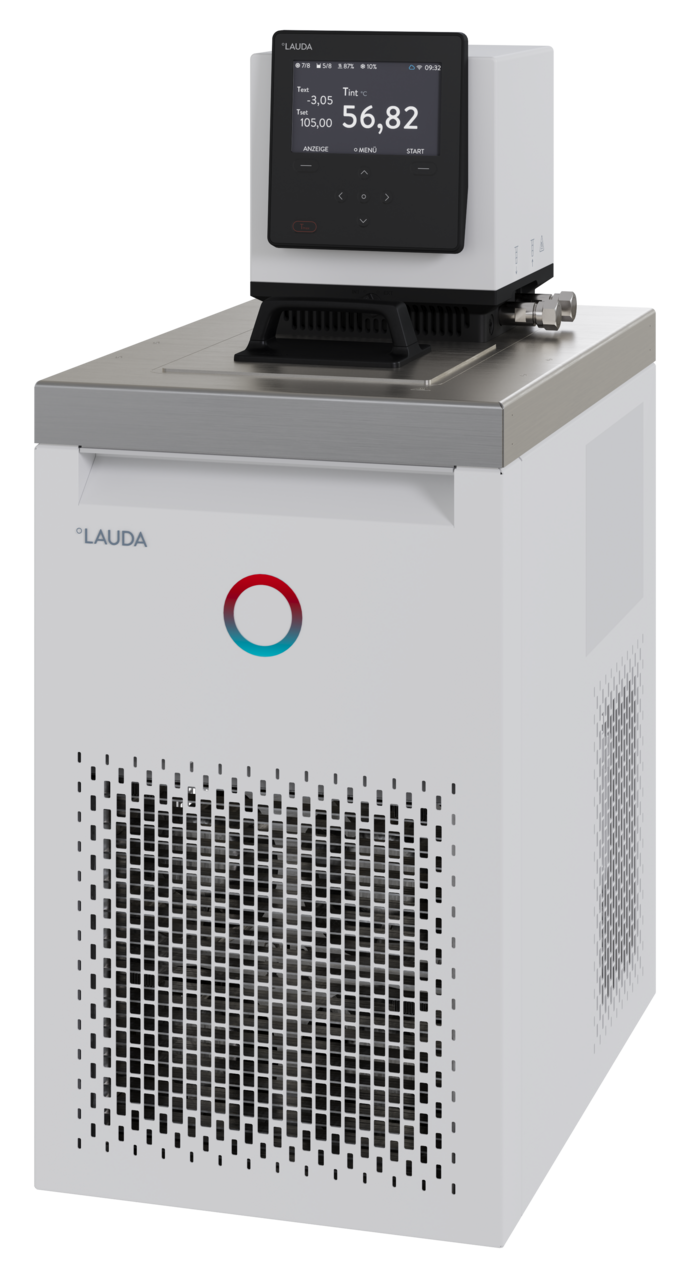

Universa U 845 M

The Universa PRO and Universa MAX cooling thermostats are equipped with a bath cover and pump connections as standard. A drain valve on the front of the device behind the ventilation grid makes it easier to change the temperature control fluid safely.

Order no. : L004151
Inquire about product
Cooling thermostats Universa U 845 M
Refrigeration technology with natural refrigerants - Icon
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Cooling thermostats

Features

Bath circulation thermostat with advanced electronics ensures precise control accuracy
Focus on safety: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning.
Easily accessible front switch on the control head allows the pump output to be adjusted during operation.
Adaptive bath edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect electronics. To increase operational safety and extend service life.
Maximum networking: Comprehensive connectivity for almost any application thanks to standard Ethernet, USB and interface for an external Pt100 as well as eleven optional interface modules.
Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.

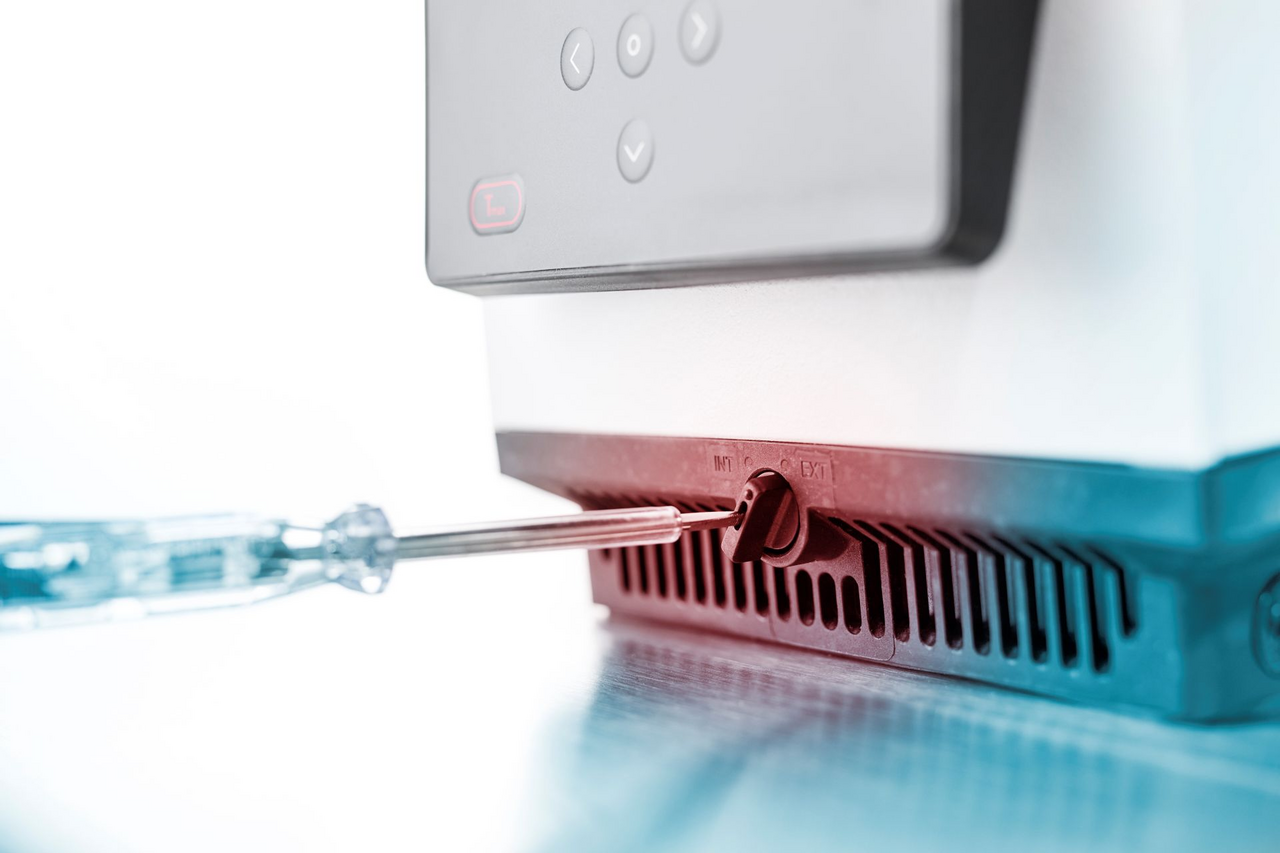

Versatile pressure-suction pump: The LAUDA Varioflex pump, a powerful pressure-suction pump, offers eight selectable performance levels, adjustable flow rate distribution for internal/external circulation for optimal volume flow and pressure
Highly efficient refrigeration technology: Combination of speed-controlled inverter compressor and capacity control by means of electronic expansion valves and speed-controlled fans - for improved energy efficiency and reduced operating costs, - increased service life by avoiding frequent switch-on and switch-off cycles, - dynamic approach to the set temperature and - quieter operation.
Extensive functionality with programmer, safe mode, calibration options, controller self-adaptation and weekly planner for precise and flexible process control.
Comprehensive safety functions: - Effective over- and under-level protection - Adjustable overtemperature protection with acoustic alarm - Automatic system diagnostics at start-up with alarm and error message display - Smart temperature control media management with automatic limit value adjustment. For reliable operation and improved safety of your valuable samples.
Clear overview, intuitive operation: The 5-inch colour TFT display simultaneously shows temperature values with a progression graph, offers clear menu navigation in six languages and clear operating status icons - easily controlled via cursor and soft keys.
Ball bearing pump for extreme requirements: Guarantees safe operation with highly viscous and dense heat transfer fluids as well as with impurities in the temperature control bath.
Environmentally friendly refrigerants: Use of natural refrigerants for sustainable and environmentally conscious cooling.
Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.

Working range

Min. working temperature

-45 °C

Max. working temperature

200 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range
-45 ... 200 °C
Operating temperature range
-45 ... 200 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.01 ± K
Current consumption
16 A
Bath opening (WxD)
150 x 150 mm
Min. / max. bath volume
5.0 / 8.0 L
Max. discharge pressure
0,7 bar
Pump suction max.
0,4 bar
Max. pump flow pressure
25 L/min
In / Outlet connection thread (outside)
M16 x 1
In / Outlet Ø olives
13 mm
Dimensions (WxDxH)
310 x 490 x 757 mm
Weight
45 kg
Power supply
200-240 V, 50/60 Hz
Power plug
Power cord with angled plug (CEE7/7)
TemperaturePump levelTempering mediumCooling capacity 50 HzCooling capacity 60 Hz
200 °C8Thermal oil0.8 kW0.8 kW
100 °C8Thermal oil0.8 kW0.8 kW
20 °C8Ethanol0.8 kW0.8 kW
10 °C8Ethanol0.73 kW0.73 kW
0 °C8Ethanol0.7 kW0.7 kW
-10 °C8Ethanol0.59 kW0.59 kW
-20 °C4Ethanol0.44 kW0.44 kW
-30 °C4Ethanol0.26 kW0.26 kW
-40 °C4Ethanol0.12 kW0.12 kW
-45 °C4Ethanol0.05 kW0.05 kW
Download Data sheet Universa U 845 M

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Universa Standard rail Accessories Operating instruction
English
PDF 164,17 kB Download document Download document
Configuration WLAN Universa
(pskCfg.txt)
 - Installation manual
English
TXT 237 B Download document Download document
Universa MAX/PRO Immersion thermostats Operating instruction
English
PDF 11,98 MB Download document Download document
Universa MAX/PRO Bath thermostats Operating instruction
English
PDF 11,98 MB Download document Download document
Universa Standard rails Accessories Operating instruction
English
PDF 164,17 kB Download document Download document

Accessories

Bath cover
Bath cover with ring inserts: 4 openings

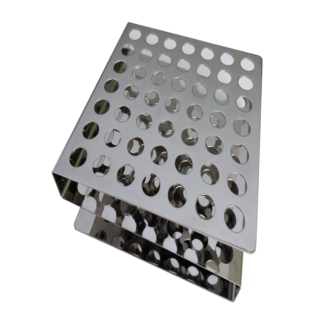

Test tube rack in z-shape
Test tube rack in z-shape
Please use the LAUDA accessories finder for additional accessories.
LAUDA accessory finder
