Features

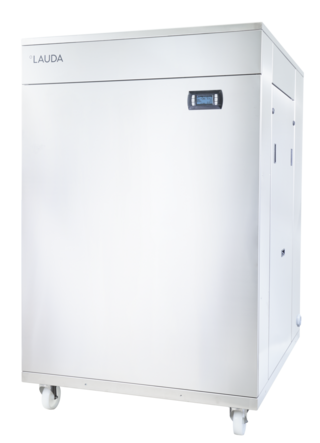

Process thermostat with integrated heater
Integrated Ethernet interface
Protection level IP 54 (for outdoor installation)
Additional pump for internal circulation
Integrated water filter
Graphic LCD with clear text menu navigation
Connection external Pt100 temperature sensor
Stainless steel housing
Digital display of pump pressure
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Operation possible via web server
Fully electronic continuous controller with PID action
Industrial block pump with high pressure and high flow rate
Operates with non flammable liquids (water,water/glycol)
Condenser cooling Water
Working range
Working temperature min.
-5 °C
Max. working temperature
60 °C
Temperature stability
0.5 ± K
Technical data (according to DIN 12876)
Working temperature range
-5 ... 60 °C
Ambient temperature range
-15 ... 50 °C
Temperature stability
0.5 ± K
Heater power max.
35 kW
Max. discharge pressure 50 Hz
3.2 bar
Pump Pressure Nominal 50 Hz
3 bar
Max. flow rate (pressure) 50 Hz
250 L/min
Nominal pump flow rate
90 L/min
In / Outlet connection thread (inside)
Rp 1 1/2
Water Cooling Connection Thread Inside
Rp 1 1/2
Max. filling volume
100 L
Cooling Water Temperature Min
0 °C
Cooling Water Temperature Max
45 °C
Pressure difference cooling water min.
2 bar
Maximum_Pressure_Cooling_Water
6 bar
Cooling water flow rate
60.6 L/min
Dimensions (WxDxH)
1138 x 1486 x 1792 mm
weight_PIM
520 kg
Power plug
---
Power supply
400 V; 3/PE; 50 Hz
Temperatur | Kälteleistung 50 Hz |
---|---|
60 °C | 29,8 kW |
30 °C | 29,8 kW |
20 °C | 25,8 kW |
15 °C | 22,2 kW |
10 °C | 19,1 kW |
5 °C | 15,9 kW |
0 °C | 13,8 kW |
-5 °C | 11 kW |
Downloads - general product data
Device | Device category | Document type | Language | Format | File size | |
---|---|---|---|---|---|---|
Ultratemp | Process thermostats | Brochure |
English
|
1,39 MB | Download document | |
Ultratemp | Process thermostats | Operating instruction |
English
|
1,53 MB | Download document |
