Integral IN 950 XTW

Operate your Integral process thermostat simply via a modern TFT display directly on the device or optionally via an intuitive operating unit with touch display and extended range of functions.

Part no. : L002890
Inquire about product
more about the benefits of Integral
Circulation and process thermostats Integral IN 950 XTW
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Circulation and process thermostats

Features

Process thermostat with integrated cooling system for dynamic temperature control within external circuits
Management of heat transfer liquids with stored properties
Fully electronic continuous controller with PID action for internal & external control
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Port for external Pt100 integrated, second external Pt100 feasible via interface module
Integrated and adjustable bypass
Very small internal volume and big non-thermostated expansion vessel (cold fluid layer system)
Condenser cooling Water
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Self adapt function for determination of control parameters
Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
Remote fault indication through floating contact
Programmer with 150 temperature/time segments that can be separated into 5 programs
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
SelfCheck Assistant for system diagnosis
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Digital display of pump pressure
SmartCool system for energy-saving digital cooling management including compressor on-off control

Working range

Min. working temperature

Min. working temperature

-50 °C

Max. working temperature

Max. working temperature

220 °C

Temperature stability

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
-50 ... 220 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
8 kW
Max. power consumption
11 kW
Current consumption
16 A
Max. discharge pressure
3,1 bar
Max. pump flow pressure
65 L/min

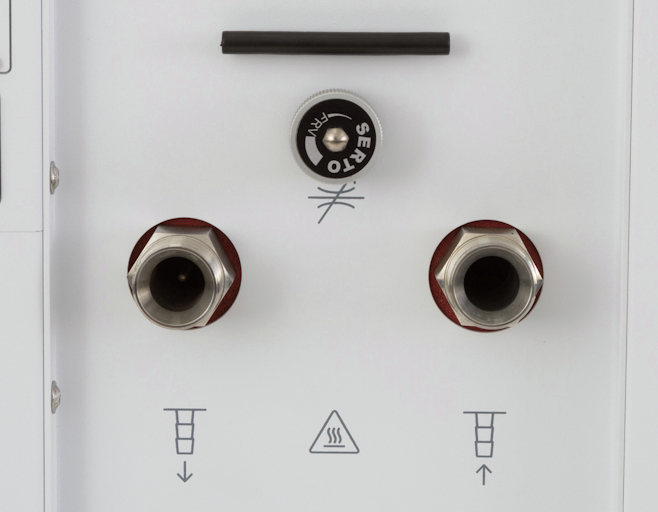

In / Outlet connection thread (outside)
M30 x 1,5
Inlet/outlet hose size
3/4″
Min. filling volume
4.8 L
Max. filling volume
17.2 L
Water cooling connection thread (outside)
3/4 ″
Recommended cooling water temperature
15 °C
Cooling Water Temperature Max
30 °C
Cooling water flow rate
20 L/min
Pressure difference cooling water min.
0.8 bar
Maximum pressure cooling water
10 bar
Dimensions (WxDxH)
560 x 550 x 1325 mm
Weight
181 kg
Noise level
69 dB(A)
Power supply
400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
Power plug
Power cord with plug (NEMA L16-20P twist lock; 20 A)
Certification
NRTL according to UL 1995:2018, CSA C22.2 no. 236-15 Ed.5th
TemperaturePump levelTempering mediumCooling capacity 50 HzCooling capacity 60 Hz
200 °C8Thermal oil9.5 kW9.5 kW
100 °C8Thermal oil9.5 kW9.5 kW
20 °C8Ethanol9.5 kW9.5 kW
10 °C8Ethanol8.5 kW8.5 kW
0 °C8Ethanol6.2 kW6.2 kW
-10 °C8Ethanol4.3 kW4.3 kW
-20 °C4Ethanol3 kW3 kW
-30 °C4Ethanol1.7 kW1.7 kW
-40 °C4Ethanol0.9 kW0.9 kW
-50 °C2Ethanol0.35 kW0.35 kW
Download Data sheet Integral IN 950 XTW
