Integral XT New Generation Prozessthermostate
The new generation of successful Integral XT process thermostats for professional temperature control in the temperature range from -90 to 320 °C

High-performance process thermostats from 1.5 to 25 kW for temperature control from -90 to 320 °C

LAUDA Integral XT process thermostats operate according to the flow principle with a cold oil blanket that enables the utilization of temperature control media over a significantly larger temperature range—optimal for dynamic temperature control tasks.

The electronically controlled, magnetically coupled pump can set the flow rate optimally both for the requirements of pressure-sensitive consumers and for applications with high hydraulic resistance.

A modular interface concept that is fit for the future ensures maximum networking of user processes. In addition, the Integral devices are already designed to use LAUDA.LIVE, a digital solution for remote maintenance and monitoring - for greater safety and reliability.

Overview

Benefits and added value

  • Fast cooling and heating cycles
  • Larger temperature range and longer service life of the temperature control media

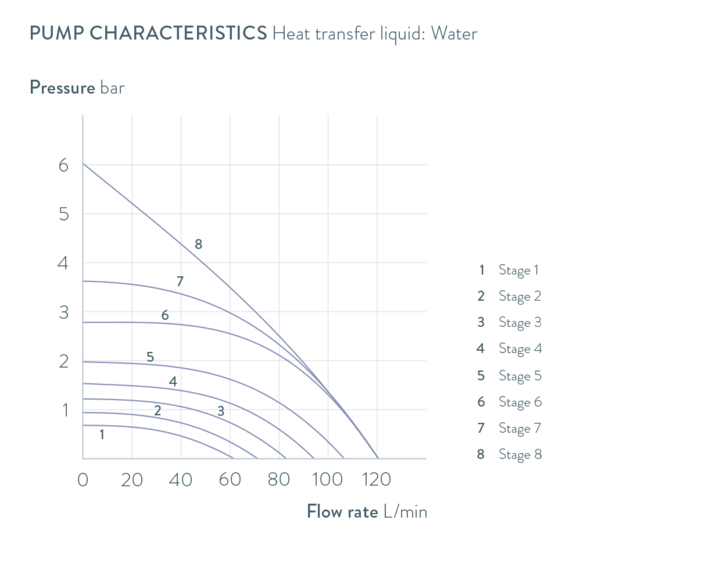

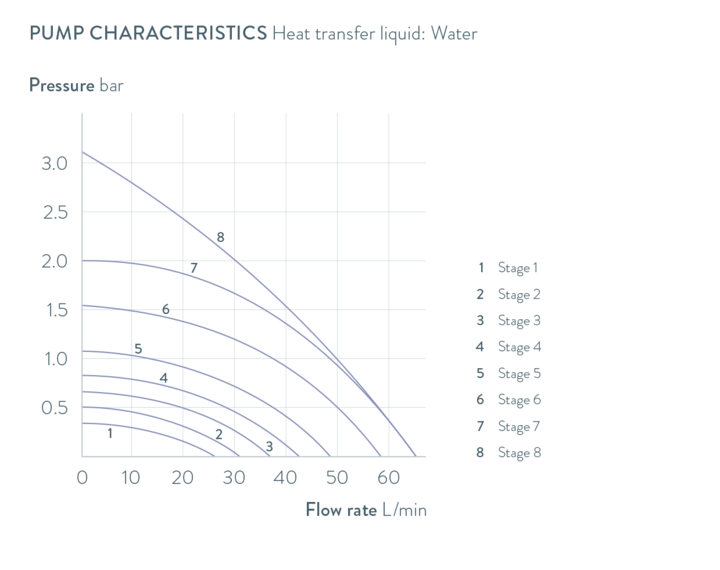

  • Preventive protection for pressure-sensitive consumers provided by an eight-stage Vario pump
  • Optimal performance of the XT even at extremely high pressure drops with low flow rates

Working range

Operate your Integral process thermostat simply via a modern TFT display directly on the device or optionally via an intuitive operating unit with touch display and extended range of functions.

Working temperature min.

Working temperature min.

25 °C

Max. working temperature

Max. working temperature

320 °C

Temperature stability

Temperature stability

0.1 ± K

Product lines



Select up to 4 technical parameters that you want to display in the table

Product Min. temperature range Max. working temp Heating output Cooling output at 20 °C 50 Hz Compare product
Integral IN 4 XTW 25 °C 320 °C 3.5 kW 2 kW Details
Integral IN 8 XTW 25 °C 320 °C 8 kW 2 kW Details
Integral IN 150 XT -45 °C 220 °C 3.5 kW 1.5 kW Details
Integral IN 250 XTW -45 °C 220 °C 3.5 kW 2.1 kW Details
Integral IN 280 XT -80 °C 220 °C 4 kW 1.6 kW Details
Integral IN 280 XTW -80 °C 220 °C 4 kW 1.7 kW Details
Integral IN 550 XT -50 °C 220 °C 8 kW 5 kW Details
Integral IN 550 XTW -50 °C 220 °C 8 kW 5.8 kW Details
Integral IN 590 XTW -90 °C 220 °C 8 kW 4.5 kW Details

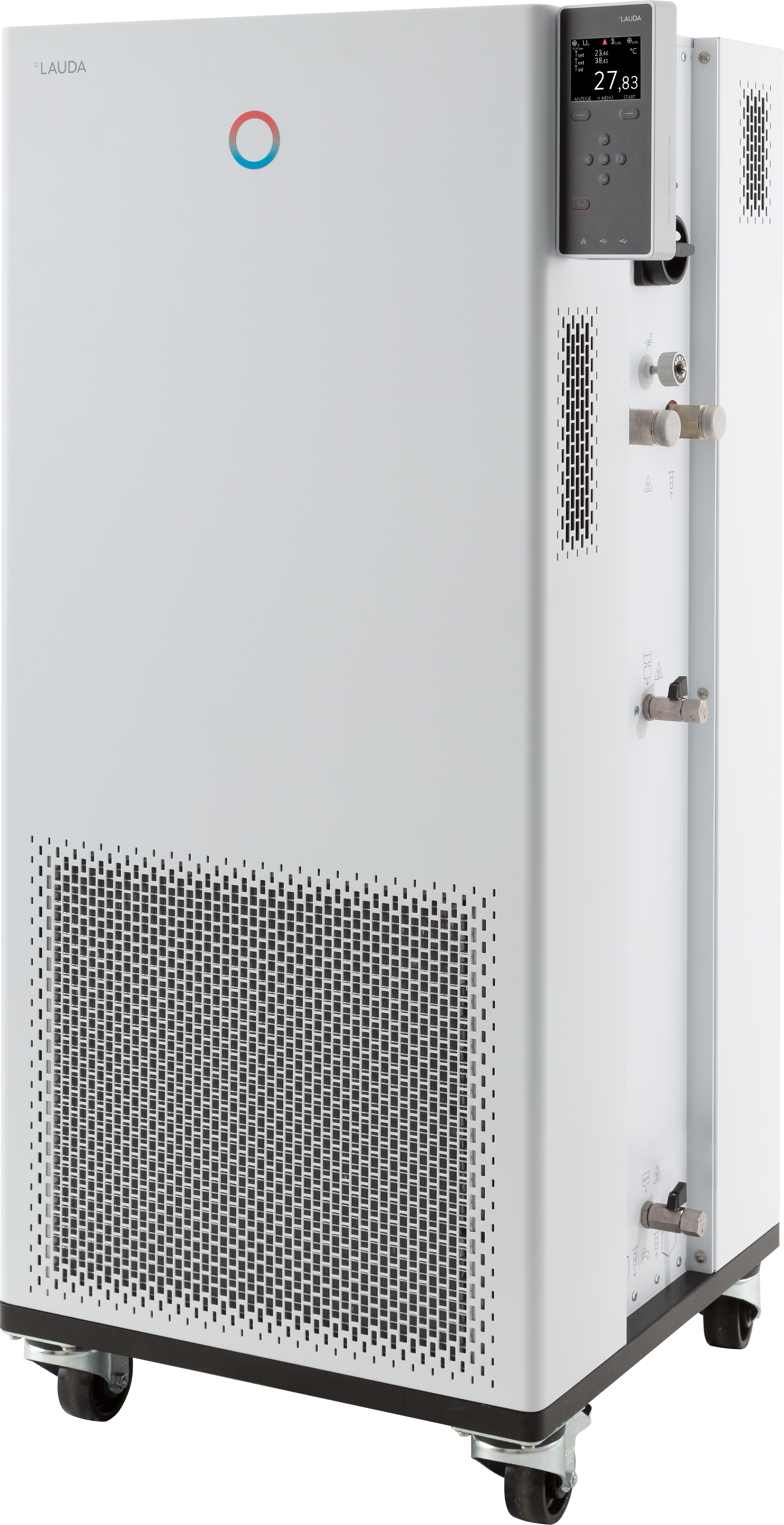

Integral IN 750 XT -45 °C 220 °C 8 kW 7 kW Details
Integral IN 950 XTW -50 °C 220 °C 8 kW 9.5 kW Details
Integral IN 1590 XTW -90 °C 220 °C 12 kW 18.5 kW Details
Integral IN 1850 XTW -50 °C 220 °C 16 kW 20 kW Details
Integral IN 2560 XTW -60 °C 220 °C 24 kW 25 kW Details

Characteristics
