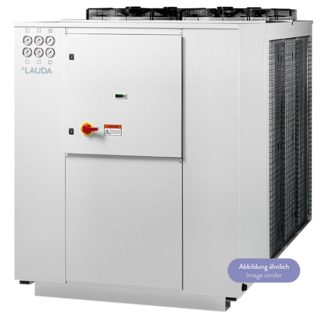

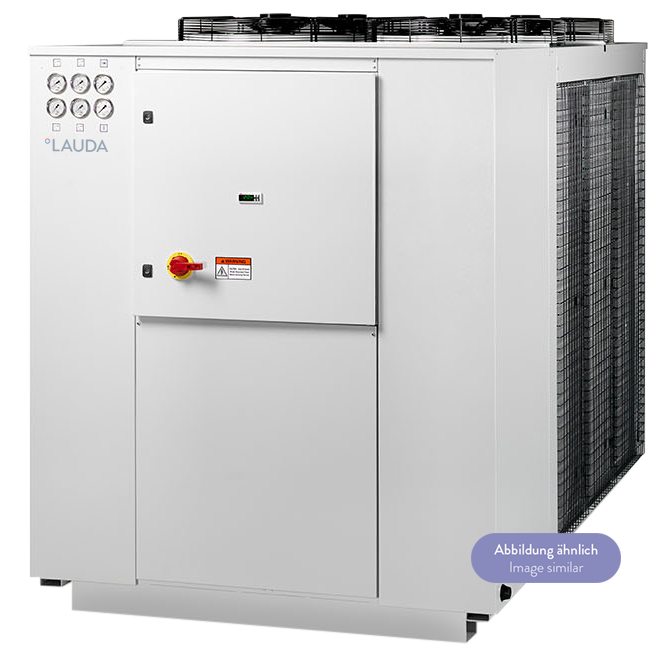

Ultracool UC-1700

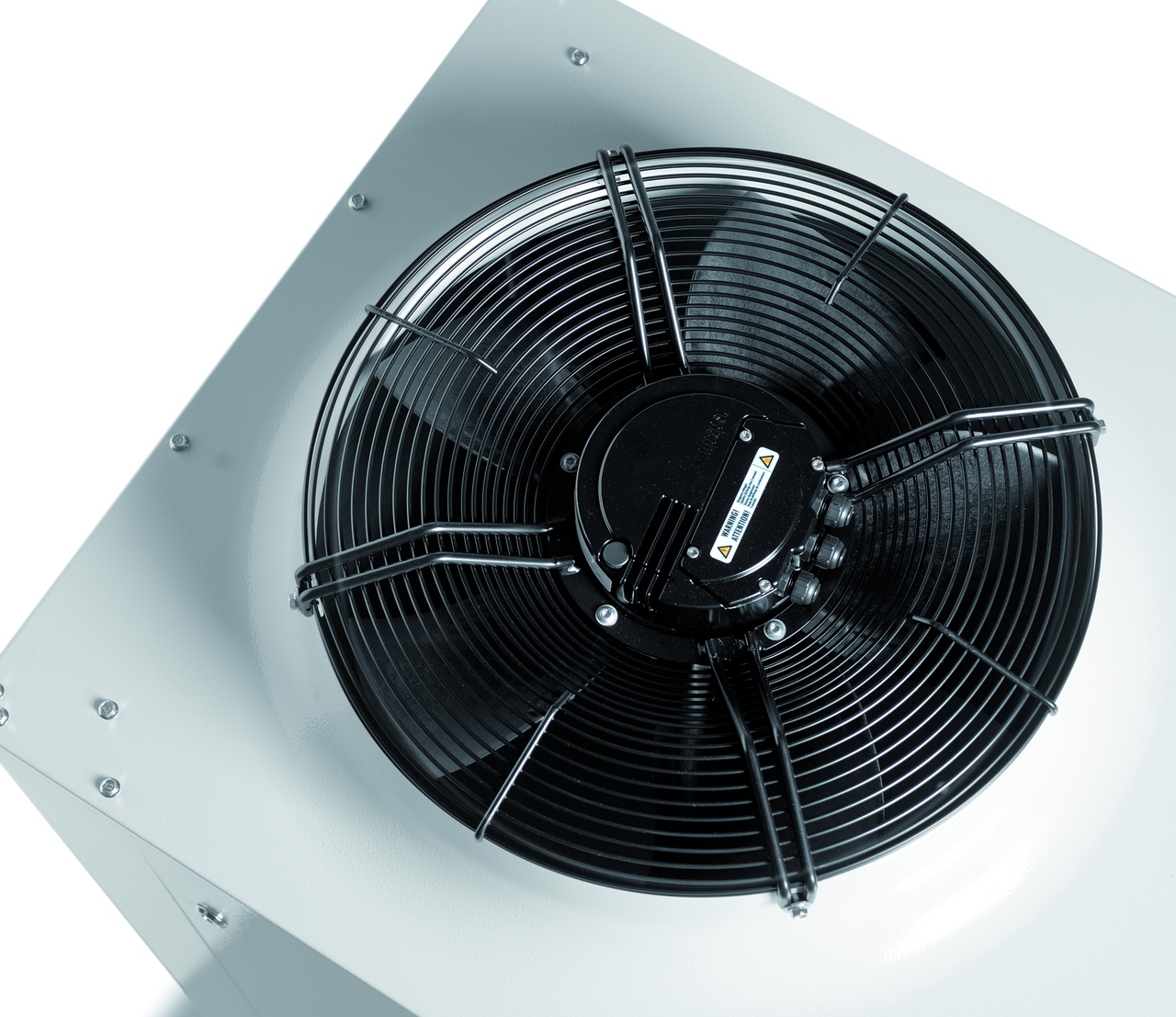

The circulation chillers with low-noise block pumps and internal bypass for automatic adjustment of the water flow can be operated at ambient temperatures from -15 °C to 45 °C thanks to fan control integrated as standard. The five unit types with cooling capacities from 87.9 to 265 kW operate with two independent cooling circuits, thus ensuring cooling at all times.

Order no.: E6170221

Features

Highly efficient industrial chiller
Integrated water filter
Protection level IP 54 (for outdoor installation)
Inlet and outlet water connections in stainless steel
Industrial block pump with high pressure and high flow rate
Operates with non flammable liquids (water,water/glycol)

Working range

Working temperature min.

-5 °C

Max. working temperature

25 °C

Temperature stability

2 ± K

Technical data (according to DIN 12876)

Working temperature range
-5 ... 25 °C
Ambient temperature range
-15 ... 45 °C
Temperature stability
2 ± K
Max. filling volume
500 L
Max. discharge pressure
5,2 bar
Max. pump flow pressure
670 L/min
Nominal pump flow rate
494 L/min
In / Outlet connection thread (inside)
Rp 2 1/2
Dimensions (WxDxH)
1660 x 3400 x 2090 mm
Power supply
400 V; 3/PE; 50 Hz
TemperaturKälteleistung 50 Hz
25 °C228,4 kW
20 °C228,4 kW
15 °C205,9 kW
10 °C175,7 kW
5 °C144,6 kW
0 °C115,6 kW
-5 °C90,8 kW
