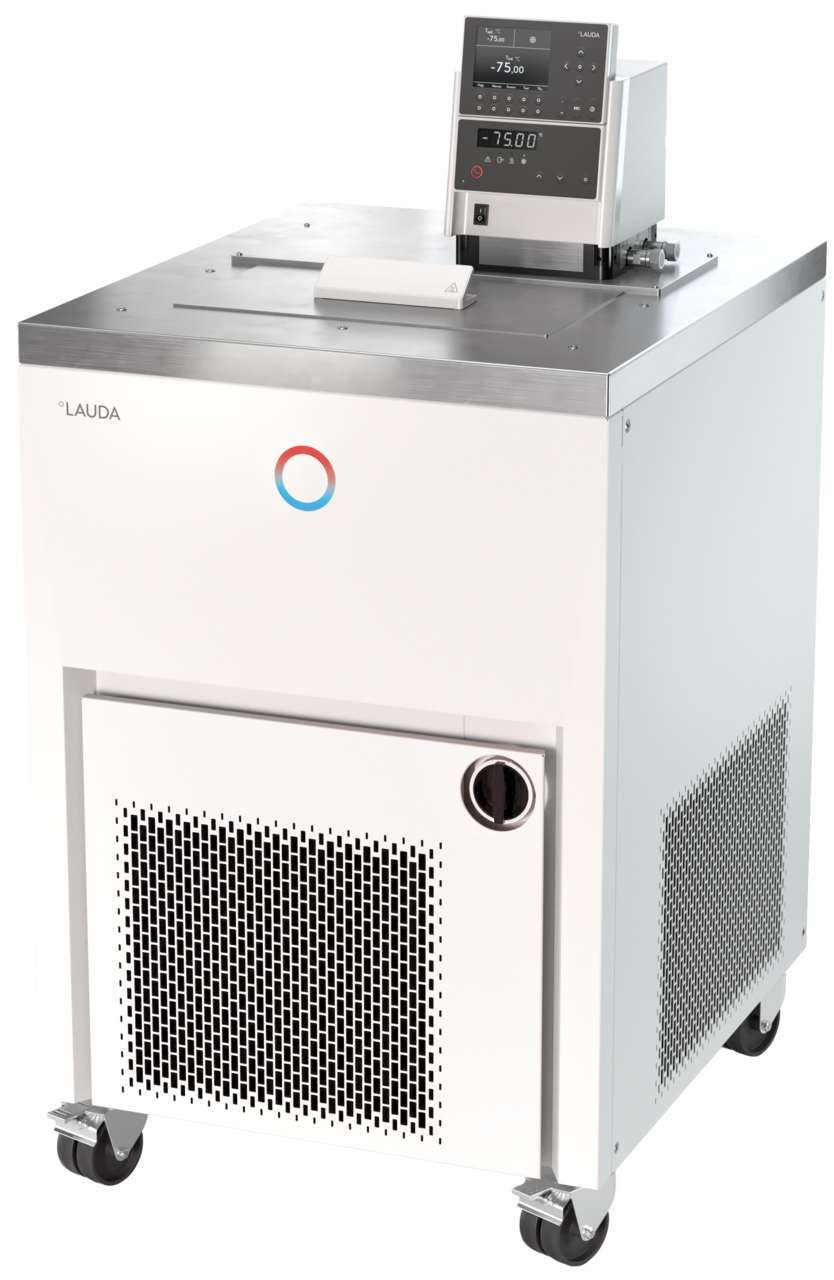

Proline Kryomate Cooling thermostats
Professional cooling thermostats from -90 to 200 °C for use in process technology and material inspection
Request advising
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Cooling thermostats

High-performance low-temperature thermostats from -90 to 200°C, for use in process technology and material testing

High cooling output and compact size. The Proline Kryomats are extremely low-temperature, high-efficient thermostats that provide an excellent price-performance ratio.

The pressure pump is optimized for internal circulation and can be set to four levels – the standard-issue LAUDA Command remote control also makes it especially user-friendly.

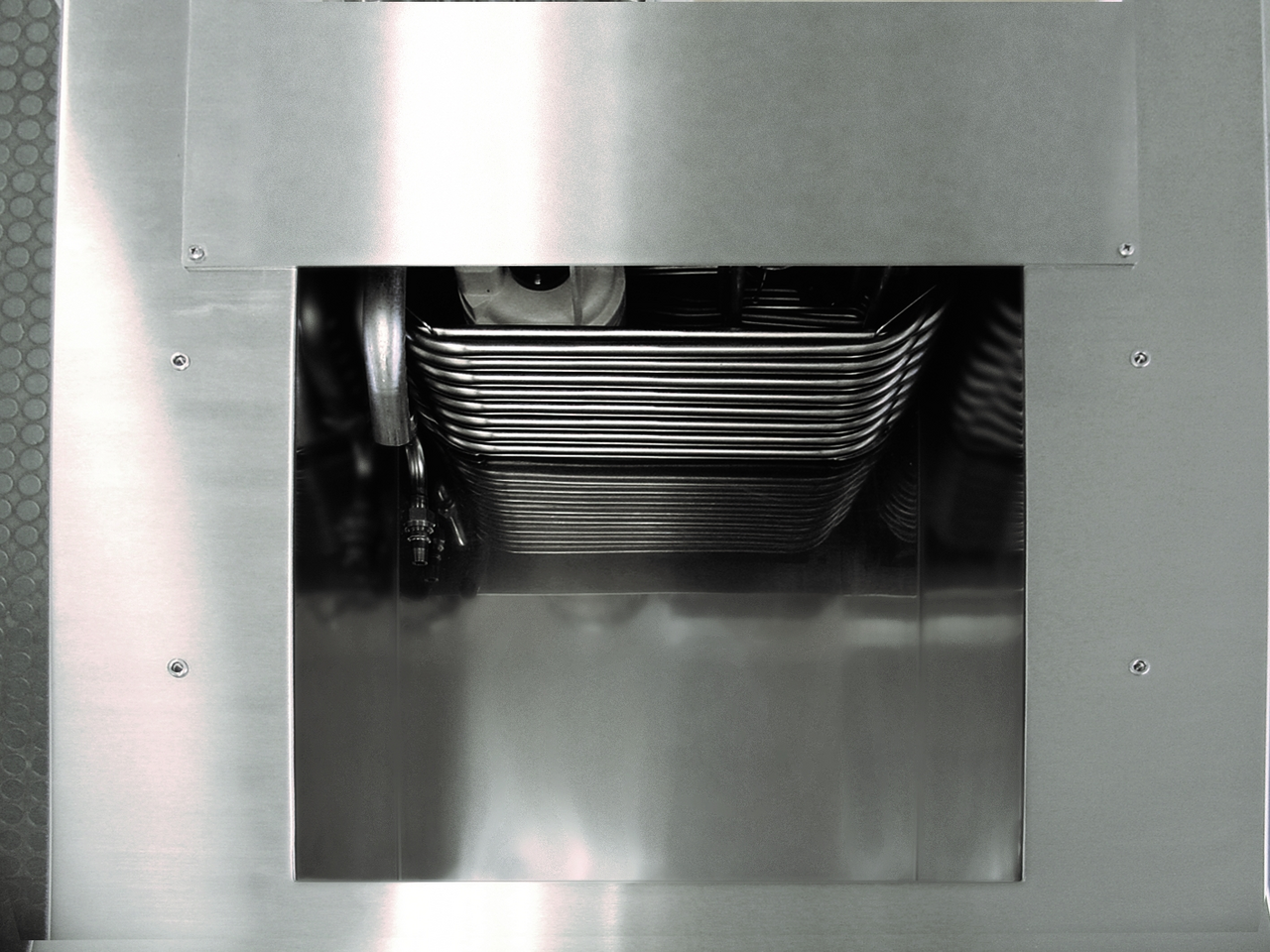

Furthermore, an integrated bath edge and bath bridge heating prevent the formation of condensation caused by air humidity at low temperatures.

Overview

Benefits and added value

  • Spacious baths and large bath openings – ideal for bulky test specimens and effective throughput
  • Removable Command operating unit with high-resolution, graphic LC- and individually selectable display functions.
  • Programmer with 150 temperature/time segments, can be divided into 5 programs.
  • Pump connections on side and rear, integral bypass

Working range

The air and water-cooled versions of the Proline Kryomats are available with large bath openings and volumes of between 30 and 40 liters.

Min. working temperature

Min. working temperature

-90 °C

Max. working temperature

Max. working temperature

200 °C

Temperature stability

Temperature stability

0.05 ± K

Product lines

Select up to 4 technical parameters that you want to display in the table

ProductMin. working tempMax. working tempHeater power max.Cooling output at 20 °C 50 HzMax. discharge pressure 50 HzCompare product
Proline Kryomate RP 3090 C -90 °C 200 °C 3.5 kW 3 kW 0.5 bar Details
Proline Kryomate RP 3090 C -90 °C 120 °C 3.5 kW 2.9 kW 0.9 bar Details
Proline Kryomate RP 3090 CW -90 °C 200 °C 3.5 kW 4 kW 0.5 bar Details
Proline Kryomate RP 3090 CW -90 °C 150 °C 3.5 kW 3.9 kW 0.9 bar Details
Proline Kryomate RP 4050 C -50 °C 200 °C 3.5 kW 5 kW 0.5 bar Details
Proline Kryomate RP 4050 C -50 °C 120 °C 3.5 kW 4.9 kW 0.9 bar Details
Proline Kryomate RP 4050 CW -50 °C 200 °C 3.5 kW 6 kW 0.5 bar Details
Proline Kryomate RP 4050 CW -50 °C 150 °C 3.5 kW 5.9 kW 0.9 bar Details
Proline Kryomate RP 4090 C -90 °C 200 °C 3.5 kW 3 kW 0.5 bar Details
Proline Kryomate RP 4090 C -90 °C 150 °C 3 kW 2.9 kW 0.9 bar Details
Proline Kryomate RP 4090 C -90 °C 120 °C 3.5 kW 2.9 kW 0.9 bar Details
Proline Kryomate RP 4090 CW -90 °C 200 °C 3.5 kW 4 kW 0.5 bar Details
Proline Kryomate RP 4090 CW -90 °C 120 °C 3.5 kW 3.9 kW 0.9 bar Details
Proline Kryomate RP 4090 CW -90 °C 150 °C 2.8 kW 3.9 kW 0.9 bar Details

Characteristics

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Chapter Cooling thermostats
Overall brochure 		Bath thermostats Brochure
English
PDF 2,6 MB Download document Download document
Proline Kryomats Bath thermostats Operating instruction
English
PDF 3,09 MB Download document Download document
Proline Kryomats (new design) Bath thermostats Operating instruction
English
PDF 4,26 MB Download document Download document
