Microcool Circulation chillers

Microcool Circulation chillers

Circulation chiller for reliable continuous operation in laboratory and research applications from -10 to 40 °C

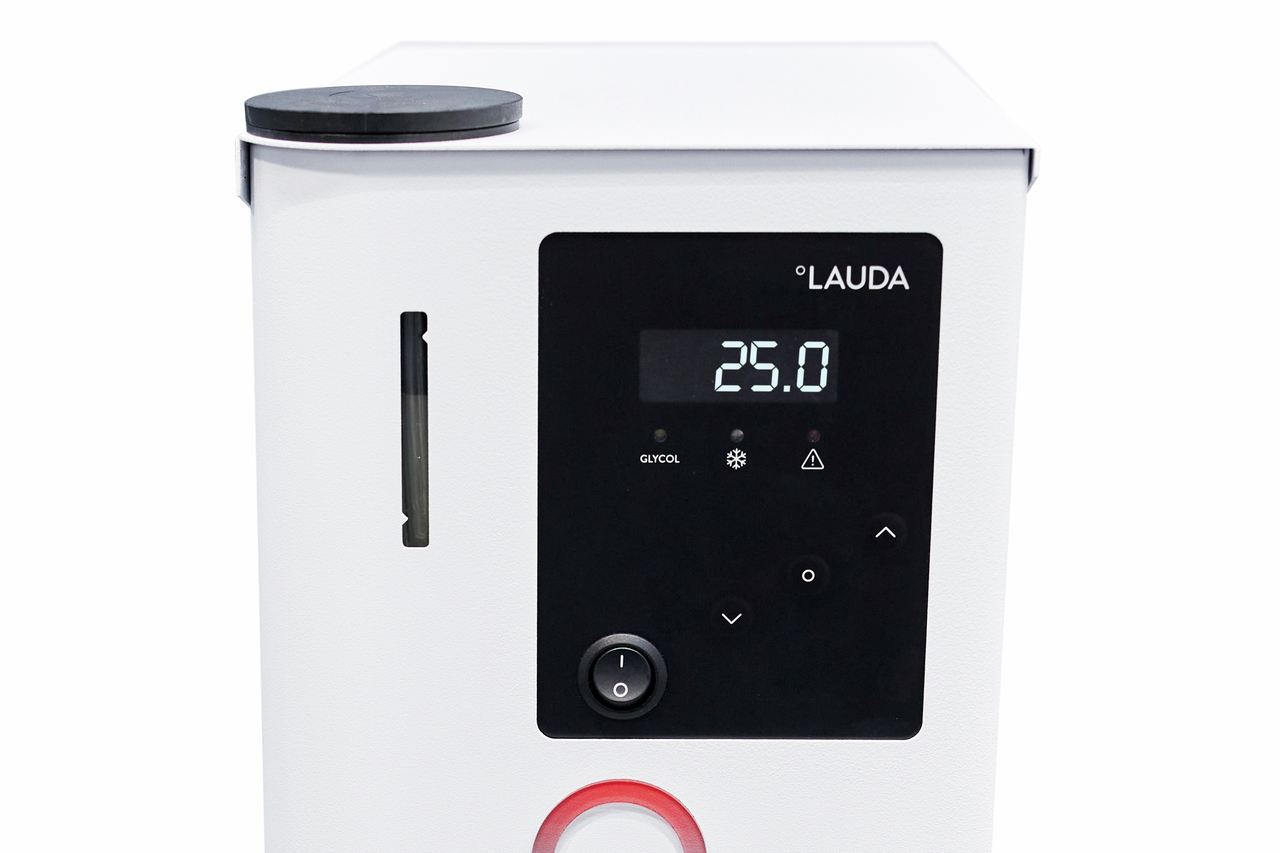

The LAUDA Microcool line of user-friendly circulation chillers consists of four compact models with large LED display and membrane keypad, offering cooling capacities of 0.25 to 1.2 kW. The highlight of these devices is the premium quality centrifugal pump with magnetic coupling – unique to this price category: Magnetic coupling of pump and electric motor prevents any kind of seal issue from arising on the pump shaft.

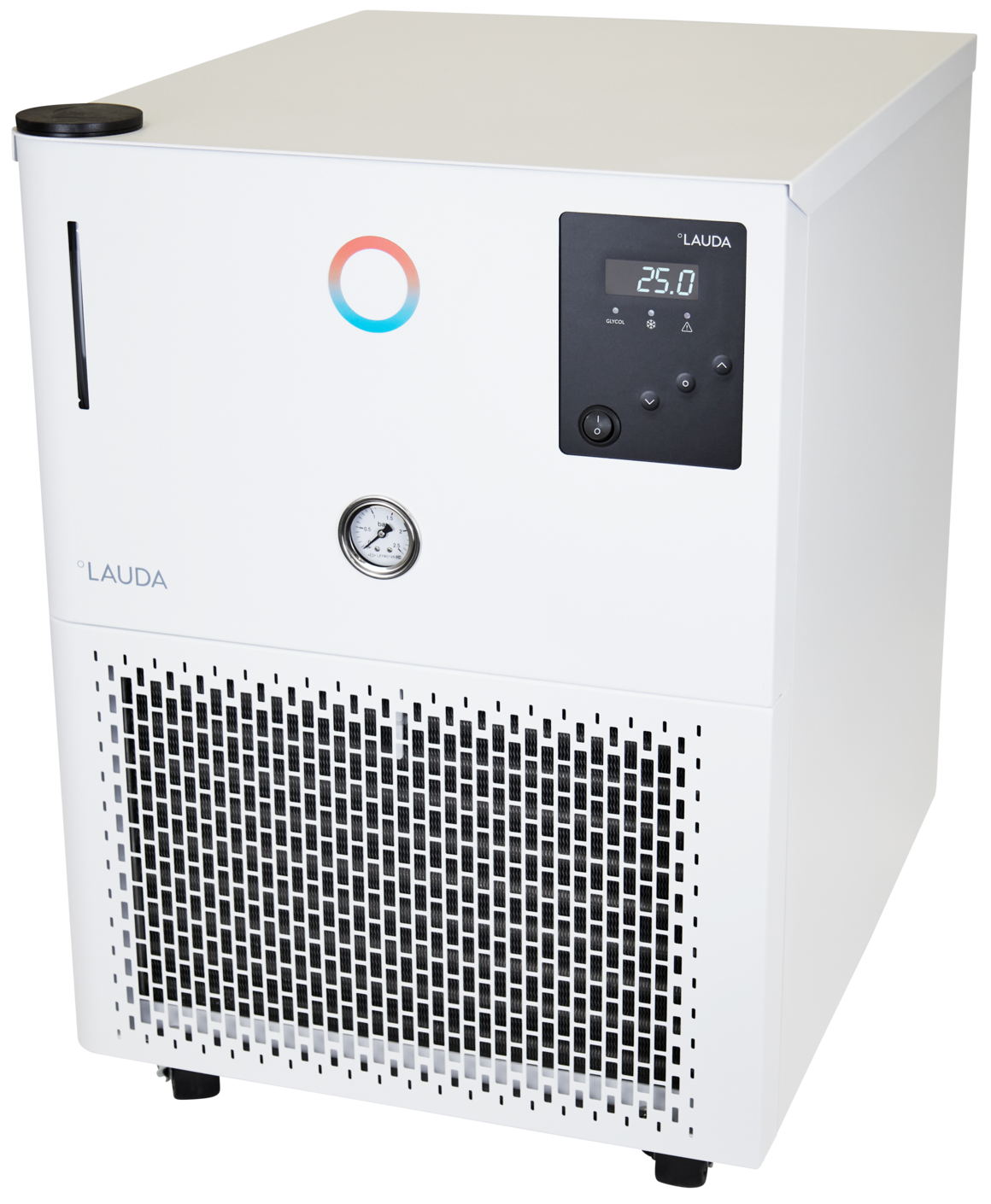

The compact circulation chiller MC 250 and MC 350 fit effortlessly on a lab bench. Somewhat larger models are also available having 600 and 1200 watts of cooling capacity and which can be positioned on the floor under a lab bench to save space. Additionally, the MC 1200 W, which is the most powerful device at 1200 watts, is also available in a water-cooled version.

Working temperature min.

-10 °C

Working temperature max.

40 °C

Temperature stability

0.5 ± K

Microcool MC 1200 Microcool MC 600 Microcool MC 350 Microcool MC 250
Working temperature min. -10 °C -10 °C -10 °C -10 °C
Working temperature max. 40 °C 40 °C 40 °C 40 °C
Filling volume min. 7 L 4 L 4 L 2 L
Temperature stability 0.5 ± K 0.5 ± K 0.5 ± K 0.5 ± K
Pump pressure max. 50 Hz 1.3 bar 1.3 bar 0.35 bar 0.35 bar
Flow rate max. (pressure) 50 Hz 35 L/min 35 L/min 16 L/min 16 L/min
