Process circulation chillers for industrial applications with cooling output up to 265 kW at temperatures of -5 to 25 °C

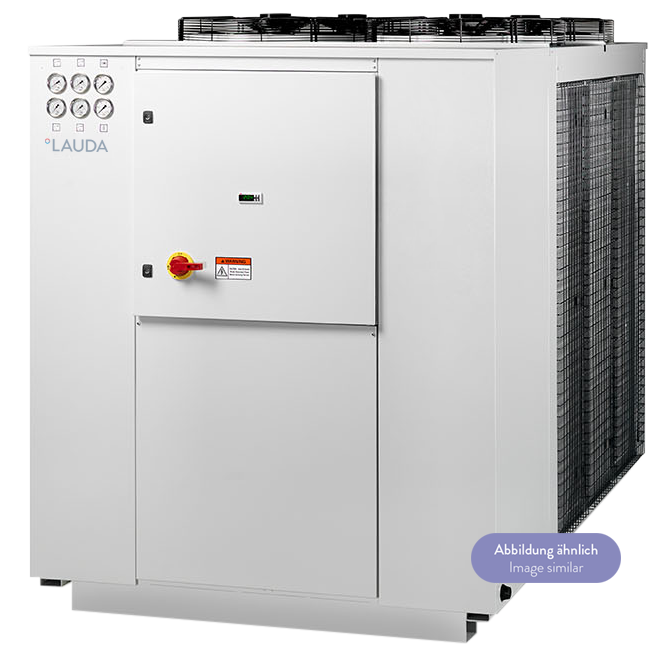

The first-generation Ultracool devices are high-performance circulation chillers with output of up to 265 kW for various industrial applications: Digital printing, laser cutting, laser marking, spot-welding, vacuum pumps and much more.
Two independent cooling circuits ensure cooling at all times. All device variants are classified IP 54 and are therefore suitable for set-up outdoors.
These high-quality devices use high-performance block pumps with internal bypass; the evaporators and pump are made of stainless steel and are therefore corrosion-resistant.
Overview
Benefits and added value
-
Protection class IP 54
-
Suitable for ambient temperatures up to 50 °C
-
Level switch
-
Premium quality block pumps with an internal bypass
Working range
The circulation chillers with low-noise block pumps and internal bypass for automatic adjustment of the water flow can be operated at ambient temperatures from -15 °C to 45 °C thanks to fan control integrated as standard. The five unit types with cooling capacities from 87.9 to 265 kW operate with two independent cooling circuits, thus ensuring cooling at all times.
Min. working temperature
-5 °C
Max. working temperature
25 °C
Temperature stability
2 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
| Product | Min. working temp | Max. working temp | Max. discharge pressure 50 Hz | Cooling output at 20 °C 50 Hz | Compare product | |
|---|---|---|---|---|---|---|
| Ultracool UC-1350 | -5 °C | 25 °C | 5.5 bar | 182.1 kW | Details | |
| Ultracool UC-1700 | -5 °C | 25 °C | 5.2 bar | 228.4 kW | Details | |
| Ultracool UC-2400 | -5 °C | 25 °C | 5.2 bar | 336.9 kW | Details |
Device dimensions
