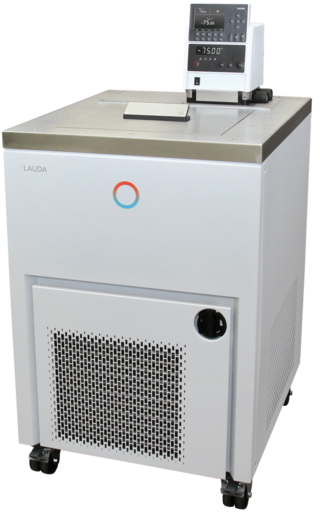

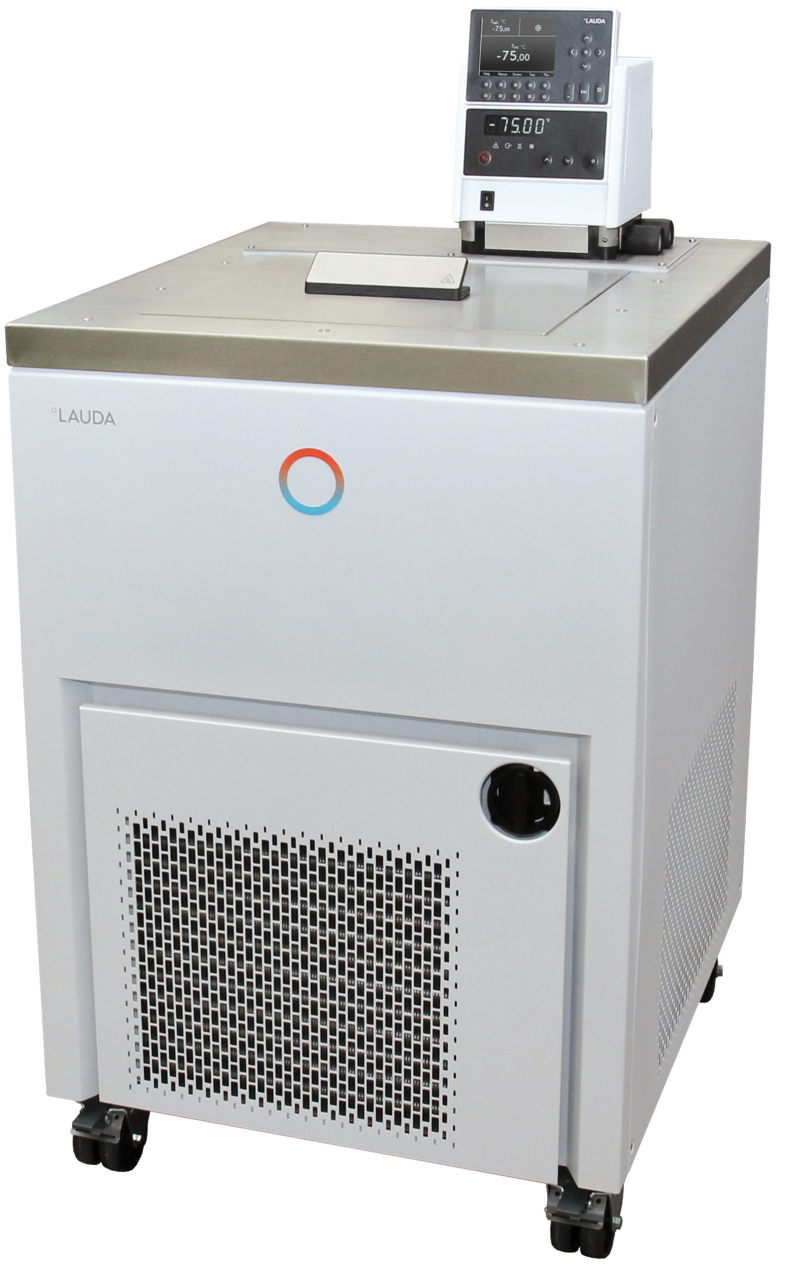

Proline Kryomate RP 4090 C

The air and water-cooled versions of the Proline Kryomats are available with large bath openings and volumes of between 30 and 40 liters.

Part no. : L001687
Inquire about product
Cooling thermostats Proline Kryomate RP 4090 C
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Cooling thermostats

Features

Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system
Input either via cursor keys, numeric soft keys or both. Additional Tmax key for overtemperature
SelfCheck Assistant for system diagnosis
Low level and overtemperature protection for use with non-flammable liquids
Programmer with 150 temperature/time segments that can be separated into 5 programs
Adjustment of bath circulation according to application
SmartCool system for energy-saving digital cooling management including compressor on-off control
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Back-lit graphic LCD display with high resolution and different display modes
Command console can be detached and used as remote control
Fully electronic continuous controller with PID action for internal & external control
Optically decoupled RS 232/485 interface integrated as a standard
Timer function for switching on the thermostat, entering the standyby mode or running of programs
Pump connectors on the side and in the back, installed bypass
Electronically-controlled heating of bath edge and bath bridge prevents moisture in the atmosphere from condensing and freezing at low temperatures
Additional green LED display for temperature
EasyUse system for simple operation of the whole unit
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Option for upgrading with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet-USB module)
LAUDA Vario pump with 4 selectable output steps
With addional pump for external application (Thread M 30 x 1.5 O)
Condenser cooling Air

Working range

Min. working temperature

-90 °C

Max. working temperature

150 °C

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
-90 ... 150 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
3 kW
Max. power consumption
7 kW
Current consumption
25 A
Max. discharge pressure
0,9 bar
Max. pump flow pressure
90 L/min
Min. / max. bath volume
32.0 / 44.0 L
Dimensions (WxDxH)
600 x 700 x 1216 mm
Weight
165 kg
Power supply
208 V; 3/PE; 60 Hz
Power plug
Power cord without plug (HAR)
TemperaturePump levelTempering mediumCooling capacity 60 Hz
200 °C2Thermal oil3 kW
20 °C2Ethanol2.9 kW
0 °C2Ethanol2.8 kW
-20 °C2Ethanol2.4 kW
-30 °C2Ethanol2.2 kW
-40 °C2Ethanol1.9 kW
-50 °C2Ethanol1.5 kW
-60 °C2Ethanol1.2 kW
-70 °C2Ethanol0.7 kW
-80 °C2Ethanol0.4 kW
-90 °C2Ethanol0.05 kW
