Variocool Prozessthermostate
Variable process thermostats from 1200 W to 10 kW from -20 to 80 °C for the dissipation of process heat in laboratory, miniplant and production

Process thermostats from -25 to 80°C and cooling output up to 10 kW

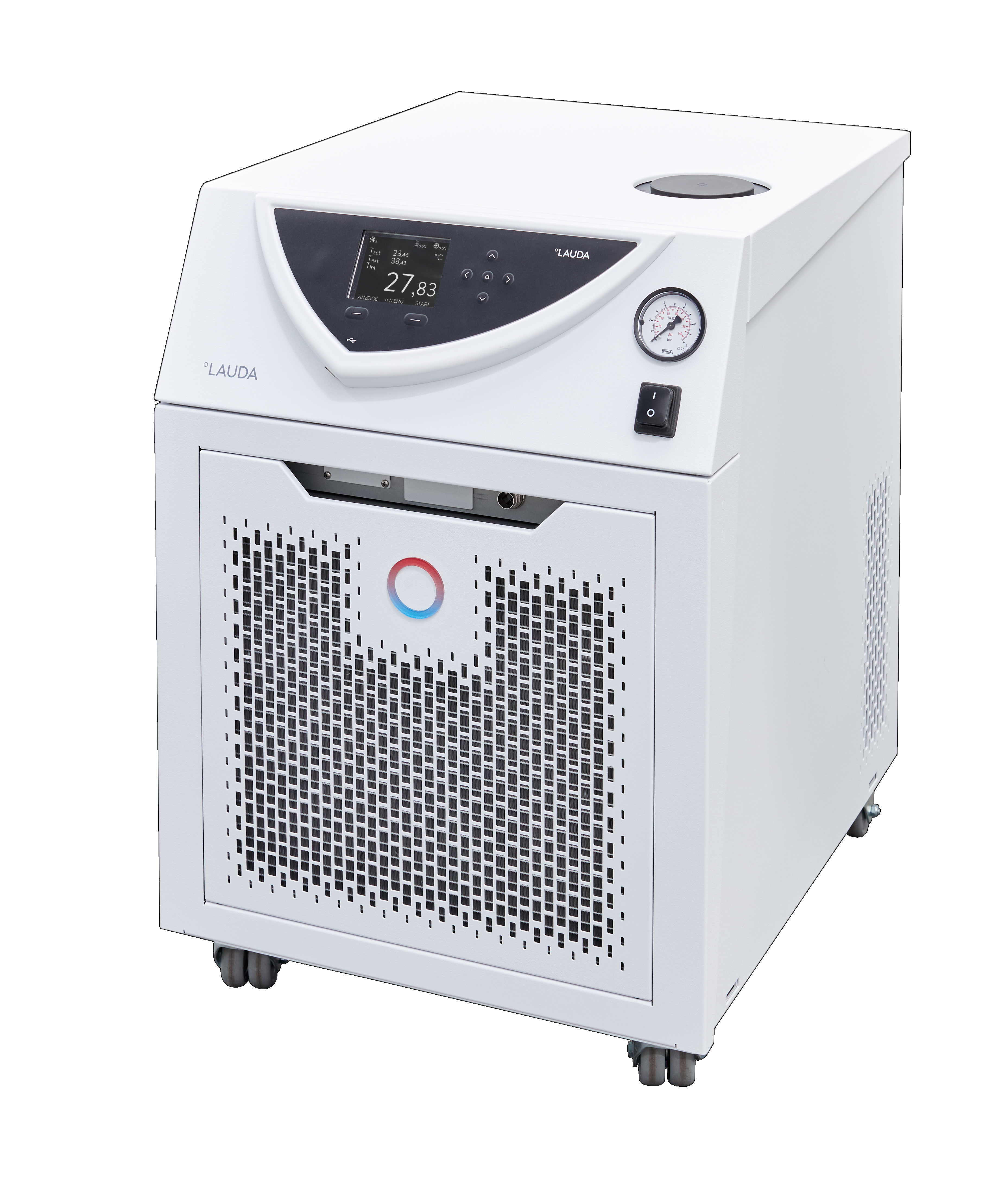

High-performance and versatile. A comprehensive performance spectrum enables the LAUDA Variocool to deal with sophisticated process temperature control in the moderate temperature range.

Equipment incorporating various pumps and individual expansion with interface modules, including the option of external temperature control, allow optimized adaptation to changing requirements in the process environment.

A malfunction contact is standard equipment. Furthermore, a Pt100 module for external temperature control and interfaces for analog and digital communication can also be added.

Overview

Benefits and added value

  • Adjustable bypass for pressure restriction (analogous to pressure display for operating control, adjustable via bypass)
  • Filling opening at the top, drain tap at the rear
  • Integral programmer with 150 segments, can be divided into 5 programs
  • Electronic level indicator and low-level protection alarm
  • SmartCool system for energy-saving digital cooling control including automatic compressor control

Working range

All models are available in air- or water-cooled versions (W) and are equipped with steerable fixed castors. Sound insulation or the option for outdoor installation is available for the powerful process thermostats in tower design from the VC 5000.

Working temperature min.

Working temperature min.

-20 °C

Max. working temperature

Max. working temperature

80 °C

Temperature stability

Temperature stability

0.05 ± K

Product lines



Select up to 4 technical parameters that you want to display in the table

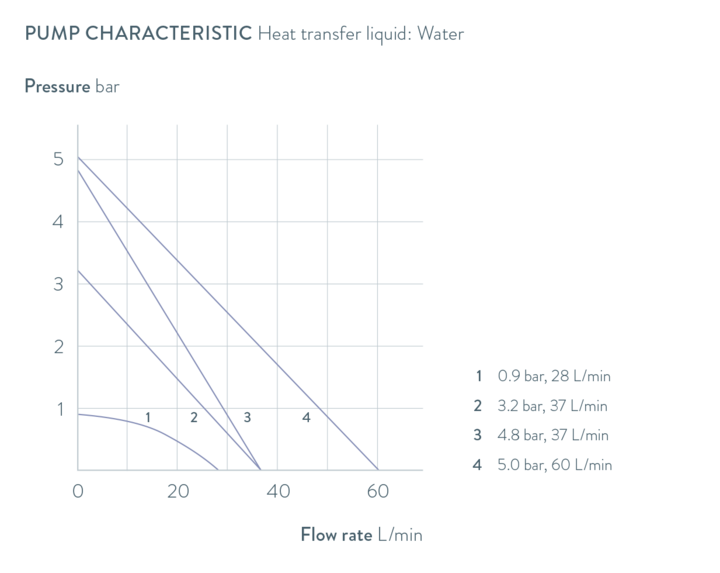

Product Min. temperature range Max. working temp Cooling output at 20 °C 50 Hz Max. discharge pressure 50 Hz Compare product
Variocool VC 1200 -20 °C 80 °C 1.12 kW 3.2 bar Details
Variocool VC 1200 -20 °C 80 °C 1.2 kW 0.9 bar Details
Variocool VC 1200 W -20 °C 80 °C 1.12 kW 3.2 bar Details
Variocool VC 1200 W -20 °C 80 °C 1.2 kW 0.9 bar Details
Variocool VC 2000 -20 °C 80 °C 1.92 kW 3.2 bar Details
Variocool VC 2000 -20 °C 80 °C 2 kW 0.9 bar Details
Variocool VC 2000 W -20 °C 80 °C 1.92 kW 3.2 bar Details
Variocool VC 2000 W -20 °C 80 °C 2 kW 0.9 bar Details
Variocool VC 3000 -20 °C 80 °C 2.8 kW 4.8 bar Details
Variocool VC 3000 -20 °C 80 °C 3 kW 3.2 bar Details
Variocool VC 3000 W -20 °C 80 °C 2.8 kW 4.8 bar Details
Variocool VC 3000 W -20 °C 80 °C 3 kW 3.2 bar Details
Variocool VC 5000 -20 °C 80 °C 4.65 kW 5 bar Details
Variocool VC 5000 -20 °C 80 °C 5 kW 3.2 bar Details
Variocool VC 5000 W -20 °C 80 °C 4.65 kW 5 bar Details
Variocool VC 5000 W -20 °C 80 °C 5 kW 3.2 bar Details
Variocool VC 7000 -25 °C 80 °C 6.65 kW 5 bar Details
Variocool VC 7000 -25 °C 80 °C 7 kW 3.2 bar Details
Variocool VC 7000 W -25 °C 80 °C 6.65 kW 5 bar Details
Variocool VC 7000 W -25 °C 80 °C 7 kW 3.2 bar Details
Variocool VC 10000 -25 °C 80 °C 9.65 kW 5 bar Details
Variocool VC 10000 -25 °C 80 °C 10 kW 3.2 bar Details
Variocool VC 10000 W -25 °C 80 °C 9.65 kW 5 bar Details
Variocool VC 10000 W -25 °C 80 °C 10 kW 3.2 bar Details

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
Device Device category Document type Language Format File size

Chapter Circulation and process thermostats
Overall brochure

Process thermostats Brochure
Englisch
PDF 4,84 MB Download document Download document

Variocool (new design)

Process thermostats Operating instructions
Englisch
PDF 4,84 MB Download document Download document

Variocool

Process thermostats Operating instructions
Englisch
PDF 4,84 MB Download document Download document

Variocool NRTL

Process thermostats Operating instructions
Englisch
PDF 4,84 MB Download document Download document

LAUDA Command App

Process thermostats Software
Englisch
EXE 4,84 MB Download document Download document

Accessories
