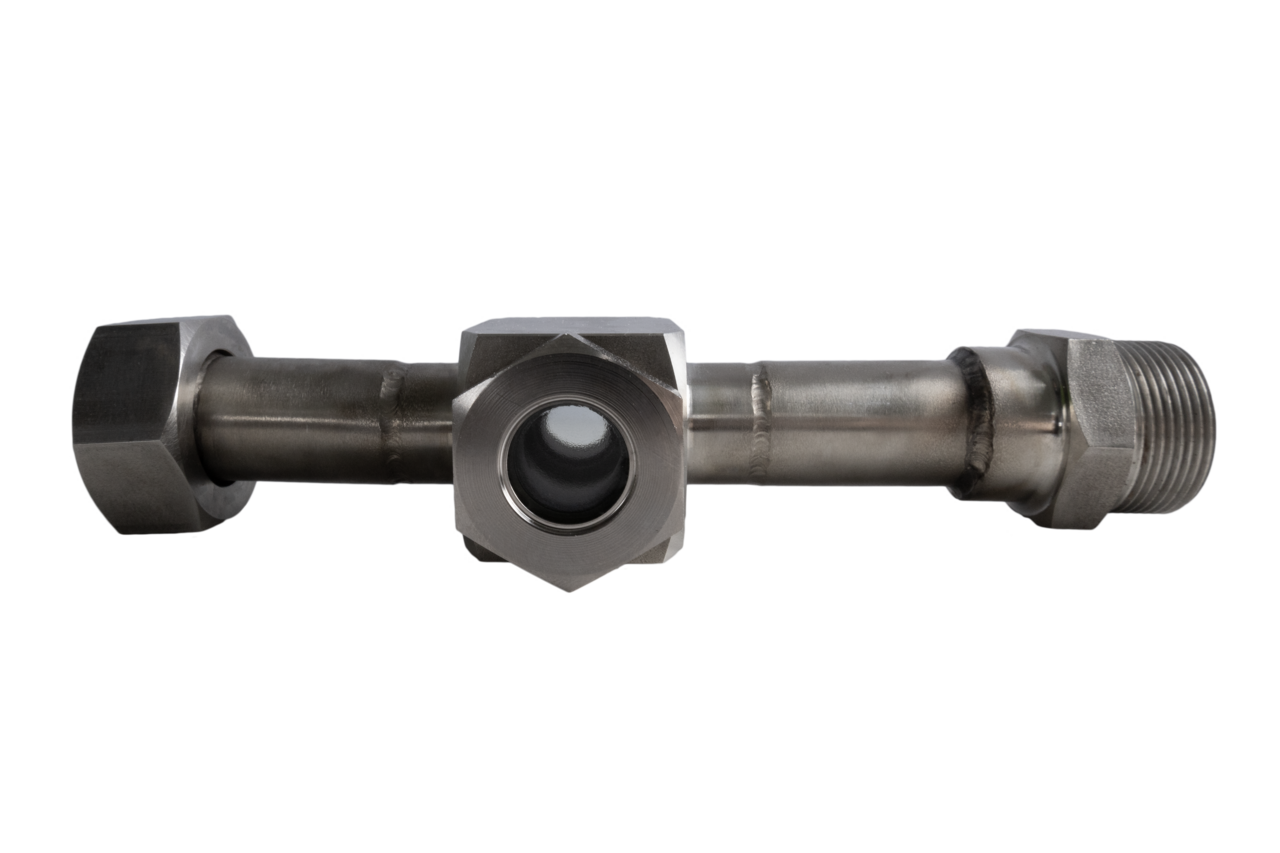

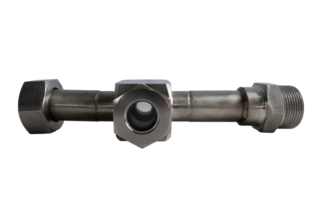

Sight glass, M30 x 1.5 O to M30 x 1.5 I

-40 °C to 140 °C

Order no.: LWZ 140
Inquire about product
Back to overview Accessories

Features

Check the heat transfer liquid by visual inspection, e.g. for degassing status, moisture turbidity, color change

Technical data (according to DIN 12876)

Dimensions (WxDxH)
36 x 73 x 133 mm
Operating temperature range
-40 ... 140 °C
Pressure_max
12 bar
Hydraulic_connection_1_inside
M30 x 1,5
Weight
0.9 kg
Download Data sheet LWZ 140
