Heating bath thermostats from 30 to 250°C for professional temperature control
Flexible operation, outstanding performance data. The LAUDA PRO heating thermostats with bath volume from 10 to 30 liters are optimized for applications in the bath, with very good temperature stability (± 0.01 K).
The innovative Base or Command Touch operating units can be detached and used as a remote control. At the same time, removing them greatly reduces the device height.
Ethernet and USB interfaces and a Pt100 connection are included in the equipment as standard.
Overview
Benefits and added value
-
Drain valve on the front
-
Operated via Base operating unit with OLED display or Command Touch with color touch screen
-
Stainless steel bath vessels, insulated, with handles
-
Internal Vario pump with 8 selectable output levels
Working range
The PRO heating bath thermostats P 10, P 20 and P 30, with volumes of 10, 20 and 30 liters, function up to a maximum temperature of 250°C and their excellent temperature stability make them perfect for use in baths.
Working temperature min.
30 °C
Max. working temperature
250 °C
Temperature stability
0.01 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
| Product | Min. temperature range | Max. working temp | Heating output | Integrated interfaces | Compare product | |
|---|---|---|---|---|---|---|
| PRO P 10 | 40 °C | 250 °C | 3.6 kW | Ethernet, USB (Type B) | Details | |
| PRO P 10 C | 40 °C | 250 °C | 3.6 kW | Ethernet, USB (Type B) | Details | |
| PRO P 20 | 35 °C | 250 °C | 3.6 kW | Ethernet, USB (Type B) | Details | |
| PRO P 20 C | 35 °C | 250 °C | 3.6 kW | Ethernet, USB (Type B) | Details | |
| PRO P 30 | 30 °C | 250 °C | 3.6 kW | Ethernet, USB (Type B) | Details | |
| PRO P 30 C | 30 °C | 250 °C | 3.6 kW | Ethernet, USB (Type B) | Details |
Device dimensions

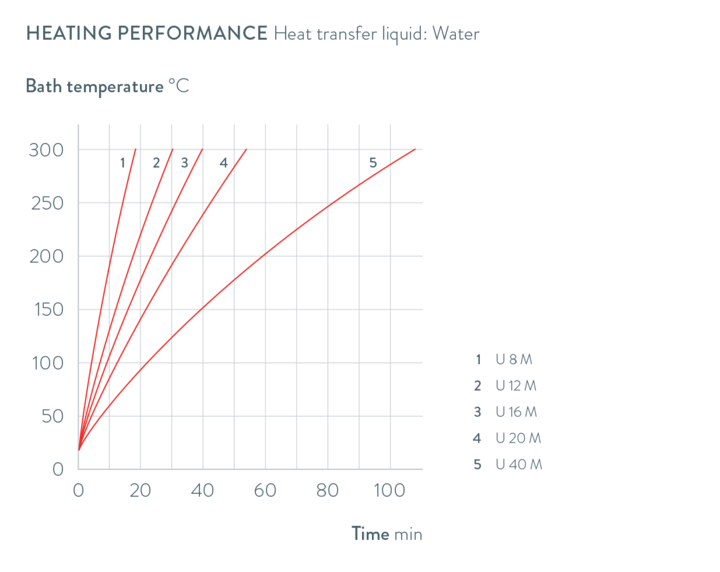

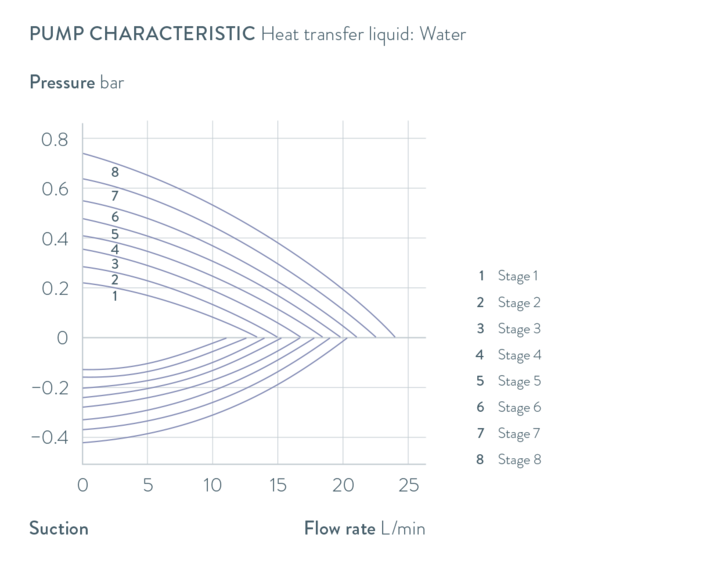

Characteristics
Downloads - general product data
| Device | Device category | Document type | Language | Format | File size | |
|---|---|---|---|---|---|---|
| PRO with Command Touch remote control unit | Bath thermostats | Operating instruction |
English
|
4,53 MB |
Download document
|
|
| PRO with Command Touch remote control unit | Circulation thermostats | Operating instruction |
English
|
4,53 MB |
Download document
|
|
| PRO with Base remote control unit | Bath thermostats | Operating instruction |
English
|
3,86 MB |
Download document
|
|
| PRO with Base remote control unit | Circulation thermostats | Operating instruction |
English
|
3,86 MB |
Download document
|
|
| Supplementary pump | Accessories | Operating instruction |
English
|
1,26 MB |
Download document
|
|
|
Chapter Cooling thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
2,6 MB |
Download document
|
|
|
Chapter Heating thermostats Overall brochure |
Bath thermostats | Brochure |
English
|
3,35 MB |
Download document
|
|
|
Chapter Circulation and process thermostats Overall brochure |
Circulation thermostats | Brochure |
English
|
4,84 MB |
Download document
|
|
| Shut Down Valve LiBus | Accessories | Operating instruction |
English
|
567 kB |
Download document
|
|
| Operating unit Command Touch | Accessories | Operating instruction |
English
|
1,75 MB |
Download document
|
