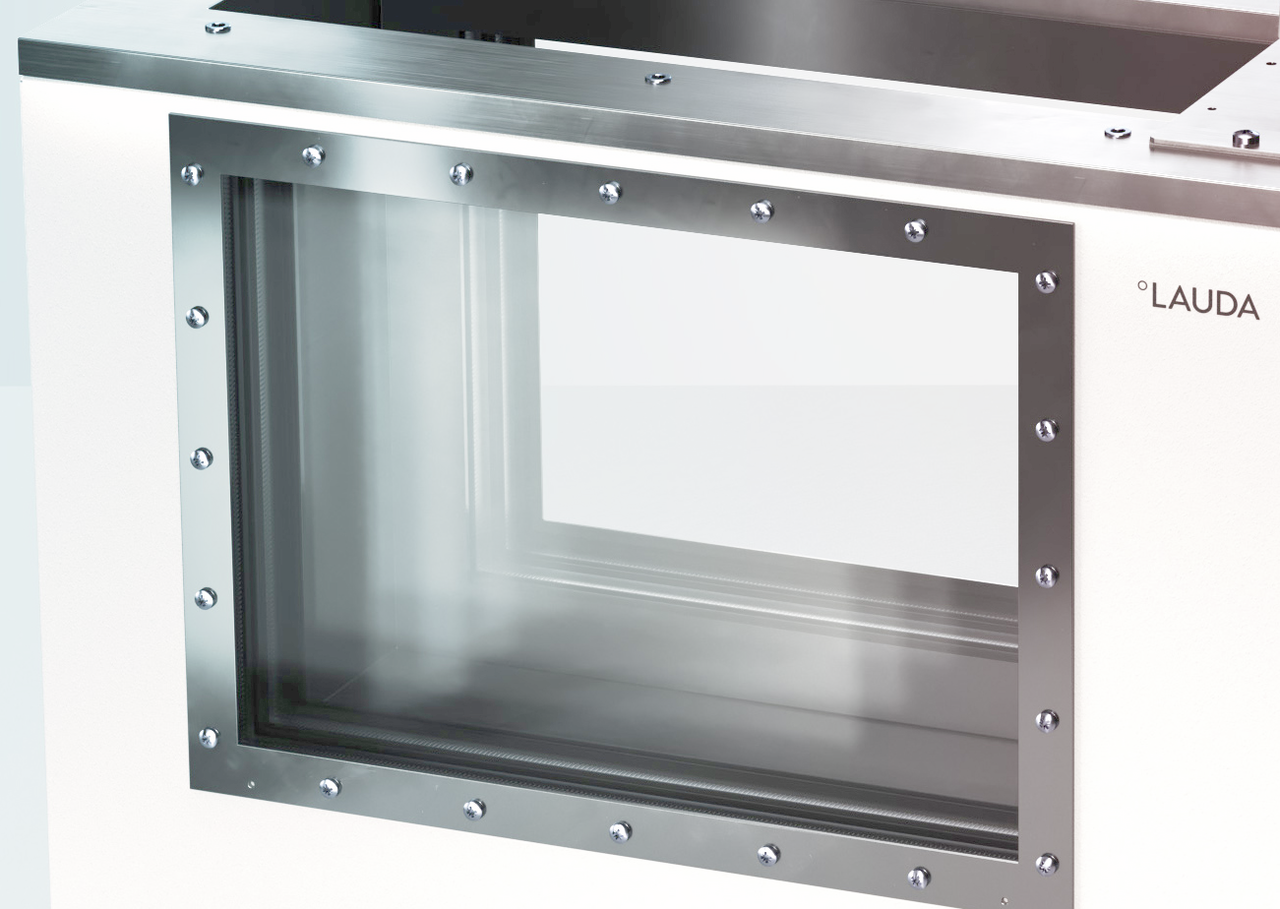

A clear view of the object at all times. LAUDA Proline clear-view thermostats are optimized for direct observation of objects. The operating unit can be detached for easy operation.
They are ideal for use with the fully automatic LAUDA PVS or iVisc viscometer since the temporal and spacial temperature stability necessary for precise determination of viscosity is guaranteed across the whole temperature range.
Furthermore, the two-chamber principle ensures a constant liquid level in the measuring chamber at all times, regardless of the fluid volume and temperature. The PVL models with five layers of insulated glass are suitable for low temperature measurements down to -40 or -60°C when a flow through cooler or low-temperature thermostat is connected.
Benefits and added value
Programmer with 150 temperature-time segments and graphical temperature curve display with Command operating unit
LAUDA Vario Flex pump (pressure pump) with eight selectable output levels
Cooling coil fitted as standard allows connection of an additional cooler

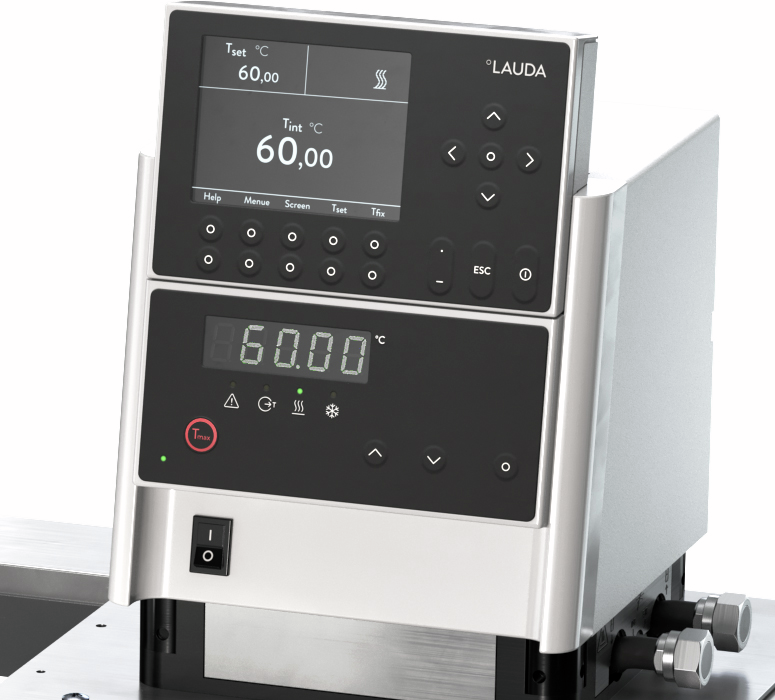

LAUDA Proline clear-view thermostats are available with two different control units. The master version is designed for all applications in which the parameters are not changed very often. The removable Command operating unit incorporates a graphic LCD screen for high operating convenience and also a programmer.
Min. working temperature
Max. working temperature
0.01 ± K
Select up to 4 technical parameters that you want to display in the table
|Product||Min. working temp||Max. working temp||Heater power max.||Integrated interfaces||Compare product|
|Proline PV 15||30 °C||230 °C||3.6 kW||No||Details|
|Proline PV 15 C||30 °C||230 °C||3.6 kW||RS 232/485||Details|
|Proline PV 24||30 °C||230 °C||3.6 kW||No||Details|
|Proline PV 24 C||30 °C||230 °C||3.6 kW||RS 232/485||Details|
|Proline PV 36||30 °C||230 °C||3.6 kW||No||Details|
|Proline PV 36 C||30 °C||230 °C||3.6 kW||RS 232/485||Details|
|Proline PVL 15||30 °C||100 °C||3.6 kW||No||Details|
|Proline PVL 15 C||30 °C||100 °C||3.6 kW||RS 232/485||Details|
|Proline PVL 24||30 °C||100 °C||3.6 kW||No||Details|
|Proline PVL 24 C||30 °C||100 °C||3.6 kW||RS 232/485||Details|
