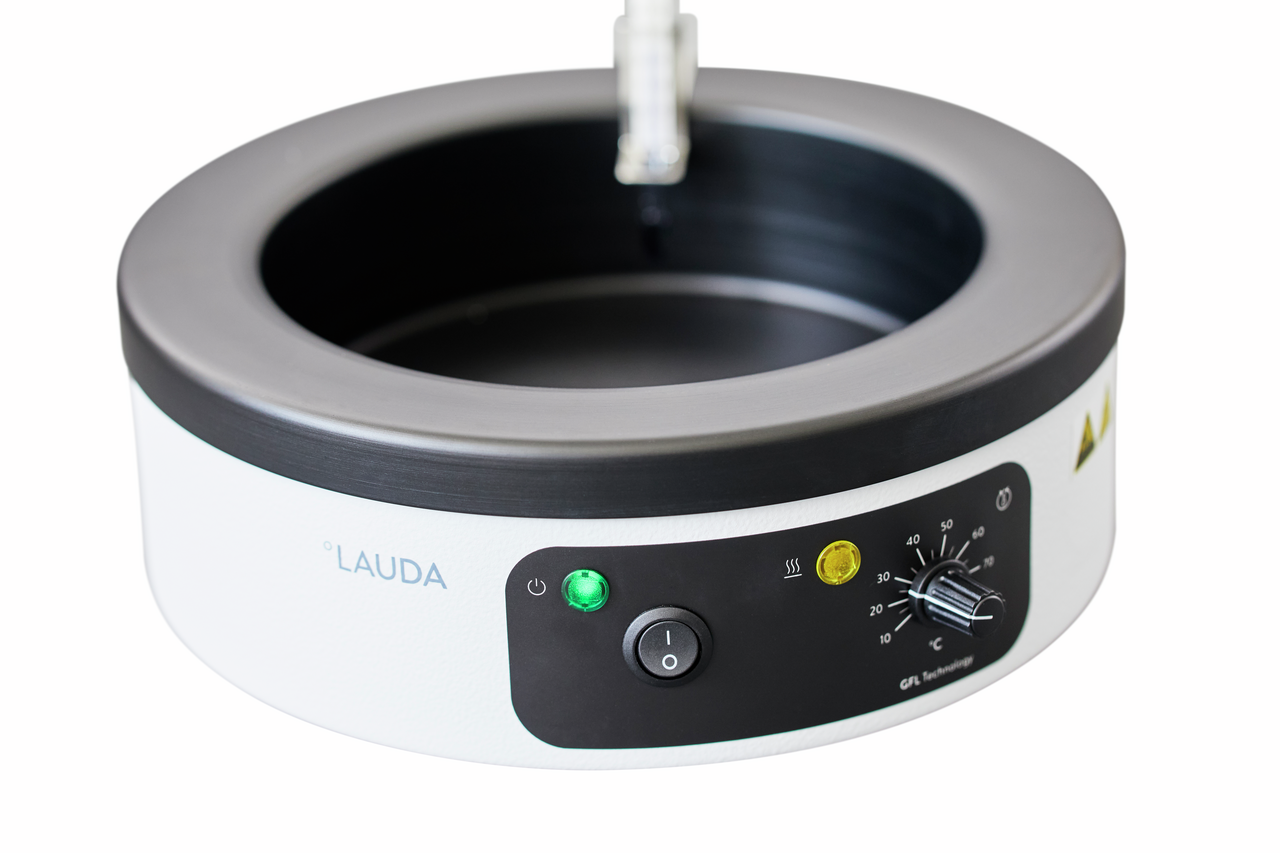

Hydro H 2 P

The LAUDA Hydro tissue float bath operates in a temperature range of 25 to 80 °C and a temperature constancy of ±0.5 K. The bath body consists of black anodised aluminium. The low bath height enables comfortable and safe working.

Order no.: L003113

Features

Tissue float bath for stretching and drying cut tissue samples
1-point temperature controller

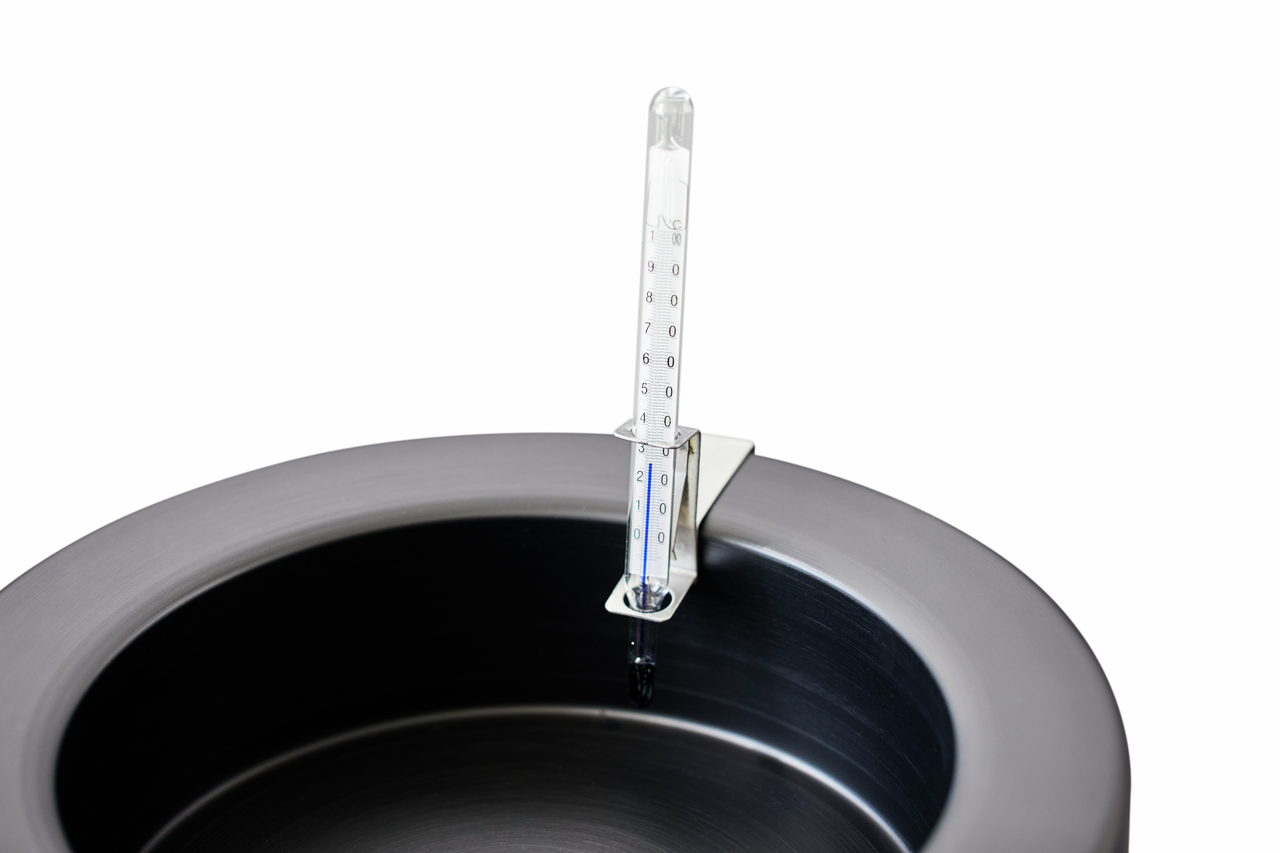

Control thermometer with holder as standard
Temperature indication by control thermometer at the bath edge
Water deficiency protection
Temperature adjustment via rotary knob with temperature scale
Aluminium bath interior, black anodised

Working range

Working temperature min.

25 °C

Max. working temperature

80 °C

Temperature stability

0.5 ± K

Technical data (according to DIN 12876)

Working temperature range
25 ... 80 °C
Ambient temperature range
10 ... 40 °C
Temperature stability
0.5 ± K
Heater power max.
0.3 kW
Max. power consumption
0.3 kW
Power consumption
16 A
Dimensions (WxDxH)
280 x 280 x 100 mm
weight_PIM
2 kg
Power supply
230 V; 50/60 Hz
Power plug
Power cord with plug (GB2099, 15934)
