The compact circulation thermostat for external applications from 4 to 80 °C
Cooling output from 0.12 kW to 0.25 kW
Heating output from 0.2 kW to 0.4 kW
Cooling output from 0.6 kW to 1.5 kW
Heating output from 1.3 kW to 2.5 kW
The new generation of Integral T process thermostats for professional external temperature control from -32 to 150 °C
Cooling output from 1.4 kW to 19 kW
Heating output from 2.2 kW to 16 kW
Water/glycol mixtures and oils
The new generation of successful Integral XT process thermostats for professional temperature control in the temperature range from -90 to 320 °C
Cooling output from 1.5 kW to 25 kW
Heating output from 2.8 kW to 24 kW
Water/glycol mixtures and oils
Professional temperature control for realistic test processes with the pressure-superimposed Integral P process thermostats
Cooling output from 20 kW to 25 kW
Heating output from 16 kW to 24 kW
Water/glycol mixtures

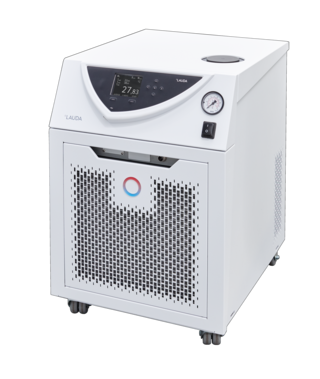

Variable process thermostats from 1200 W to 10 kW from -20 to 80 °C for the dissipation of process heat in laboratory, miniplant and production
Cooling output from 1.12 kW to 10.8 kW
Heating output from 1 kW to 17 kW
High-performance temperature control for biotechnology and pharmaceutical engineering from -5 to 60 °C
Cooling output from 24.9 kW to 46.7 kW
Heating output from 35 kW to 50 kW
Thermo-electric process thermostats for the semiconductor industry from -20 to 90 °C
Cooling output from 1.2 kW to 4.4 kW
Heating output from 3 kW to 12 kW
Select the desired working temperature, product line, or type of heat discharge to narrow down the list
| Product | Min. temperature range | Max. working temp | Heating output | Cooling output at 20 °C 50 Hz | Compare product |
|---|---|---|---|---|---|
| Integral IN 4 XTW | 25 °C | 320 °C | 3.5 kW | 2 kW | |
| Integral IN 8 XTW | 25 °C | 320 °C | 8 kW | 2 kW | |
| Integral IN 130 T | -32 °C | 120 °C | 2.7 kW | 1.4 kW | |
| Integral IN 150 XT | -45 °C | 220 °C | 3.5 kW | 1.5 kW | |
| Integral IN 230 T | -32 °C | 120 °C | 2.7 kW | 2.2 kW | |
| Integral IN 230 TW | -32 °C | 120 °C | 2.7 kW | 2.3 kW | |
| Integral IN 250 XTW | -45 °C | 220 °C | 3.5 kW | 2.1 kW | |
| Integral IN 280 XT | -80 °C | 220 °C | 4 kW | 1.6 kW | |
| Integral IN 280 XTW | -80 °C | 220 °C | 4 kW | 1.7 kW | |
| Integral IN 530 T | -32 °C | 120 °C | 8 kW | 5 kW | |
| Integral IN 530 TW | -32 °C | 120 °C | 8 kW | 6 kW | |
Integral IN 550 XT
 | -50 °C | 220 °C | 8 kW | 5 kW | |
|
Integral IN 550 XTW
| -50 °C | 220 °C | 8 kW | 5.8 kW | |
| Integral IN 590 XTW | -90 °C | 220 °C | 8 kW | 4.5 kW | |
|
Integral IN 750 XT
| -50 °C | 220 °C | 8 kW | 7 kW | |
|
Integral IN 950 XTW
| -50 °C | 220 °C | 8 kW | 9.5 kW | |
| Integral IN 1030 T | -32 °C | 150 °C | 8 kW | 11 kW | |
| Integral IN 1330 TW | -32 °C | 150 °C | 16 kW | 13 kW | |
| Integral IN 1590 XTW | -90 °C | 220 °C | 12 kW | 18.5 kW | |
| Integral IN 1830 TW | -32 °C | 150 °C | 16 kW | 19 kW | |
|
Integral IN 1850 XTW
| -50 °C | 220 °C | 16 kW | 20 kW | |
|
Integral IN 2040 PW
| -40 °C | 140 °C | 16 kW | 20.8 kW | |
|
Integral IN 2040 XTW
| -45 °C | 200 °C | 16 kW | 20.8 kW | |
| Integral IN 2050 PW | -40 °C | 140 °C | 16 kW | 20 kW | |
| Integral IN 2560 PW | -40 °C | 140 °C | 24 kW | 25 kW |
