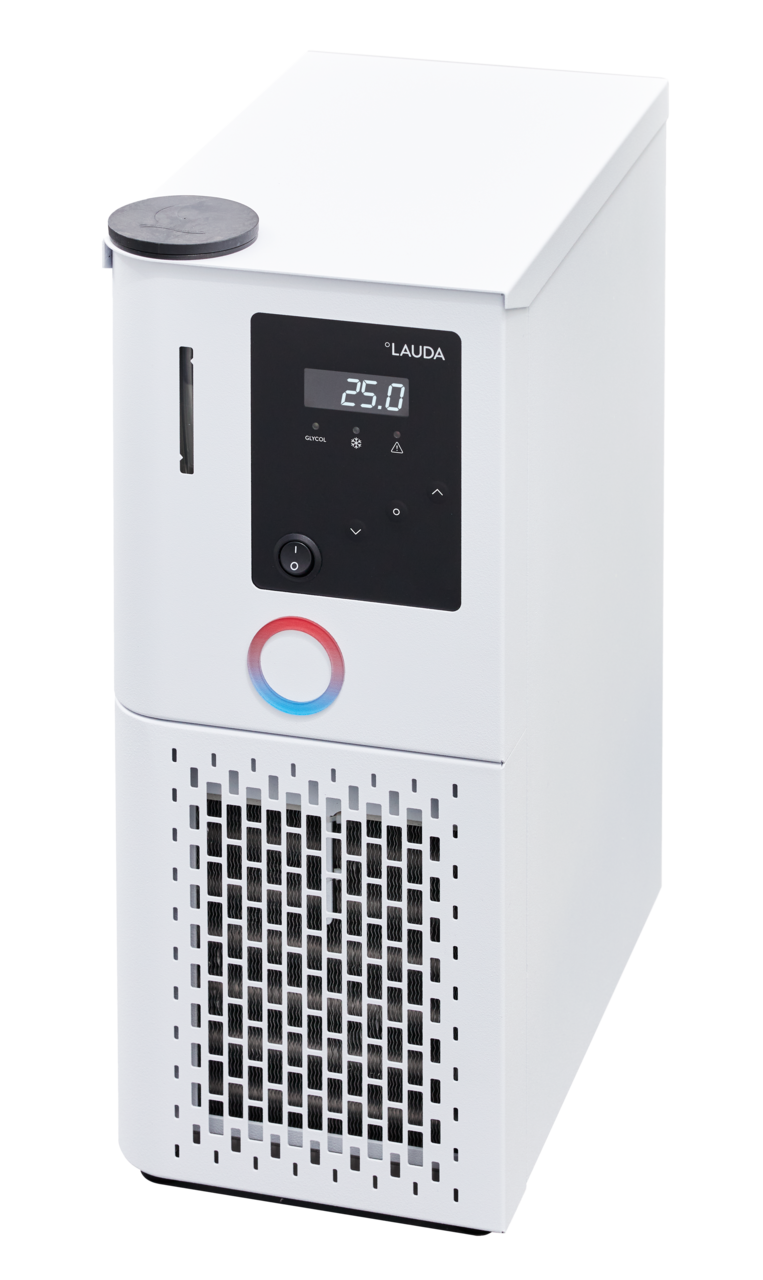

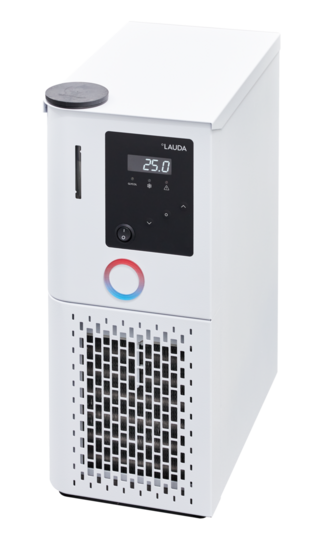

Microcool MC 250

The compact circulation chiller MC 250 and MC 350 fit effortlessly on a lab bench. Somewhat larger models are also available having 600 and 1200 watts of cooling capacity and which can be positioned on the floor under a lab bench to save space.

Order no.: L001066

Features

Circulation chiller
Fully electronic continuous controller

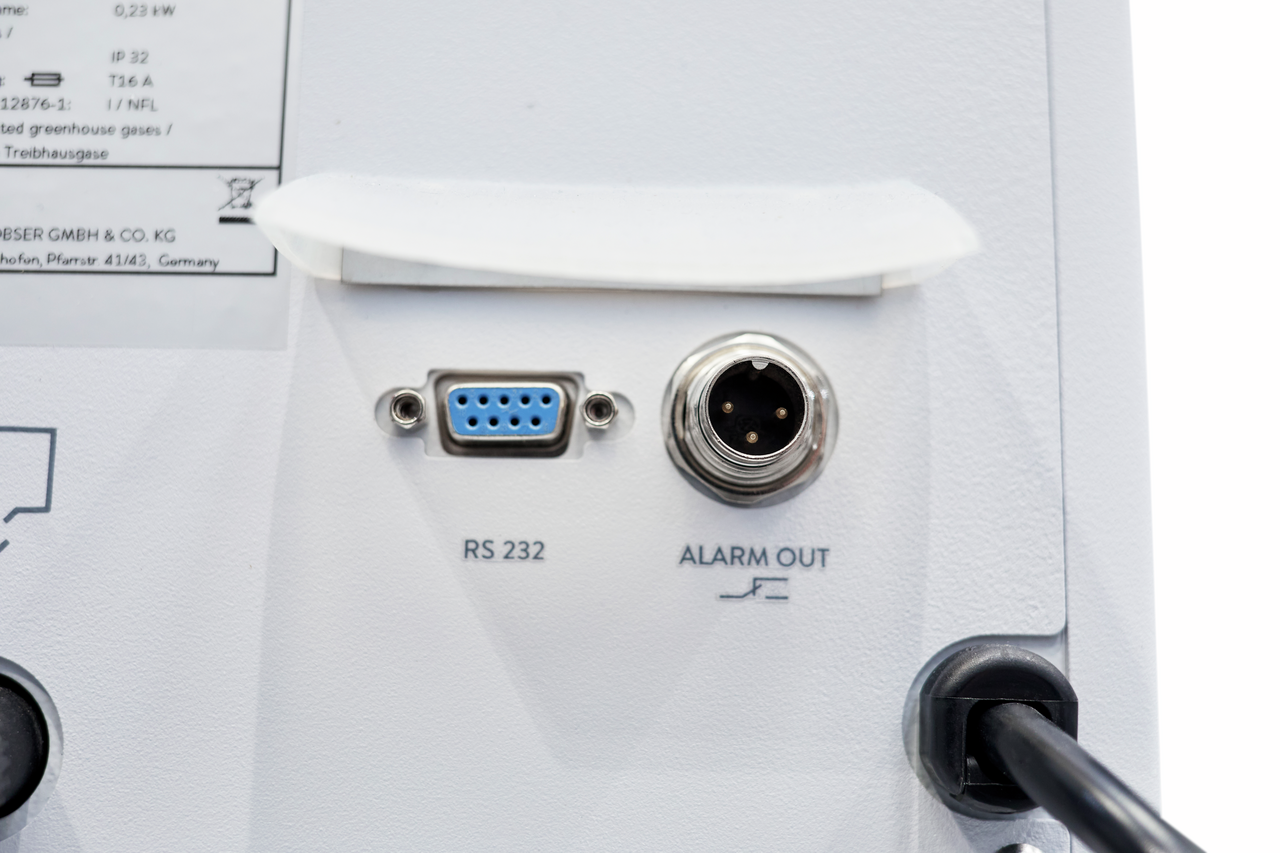

RS 232 interface
Cooling capacity adjustment by solenoid valve control including compressor on-off control

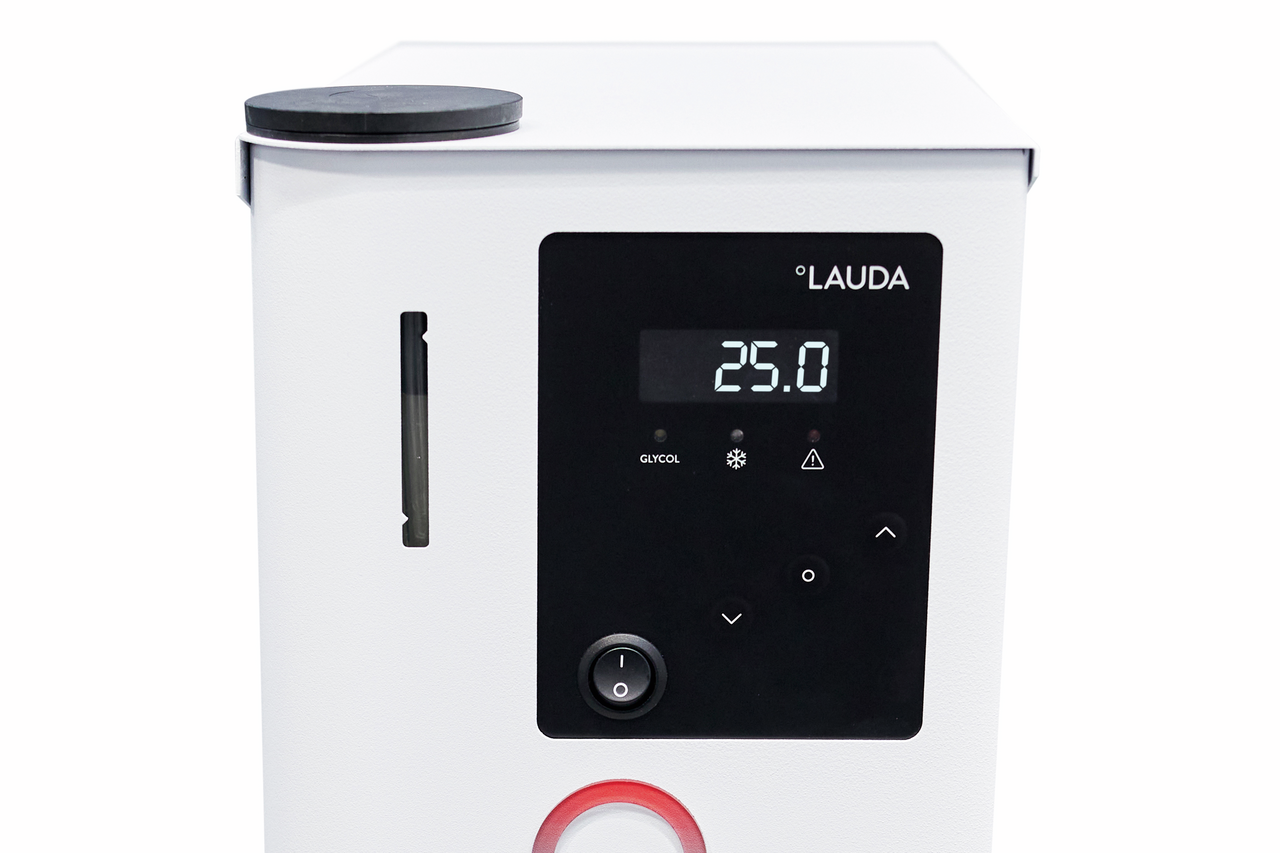

1-line LED display for display of actual or set temperature
Temperature protection for the pump windings, lighted level indication and low level alarm
Auto-Start-Timer and Auto-Shut-Down function
Condenser cooling Air
User-friendly menu guidance with simplest 3-key operation
Magnetically coupled block pump
Filler opening on top, outlet connection on the backside
Operates with non flammable liquids (water,water/glycol)

Working range

Working temperature min.

-10 °C

Max. working temperature

40 °C

Temperature stability

0.5 ± K

Technical data (according to DIN 12876)

Working temperature range
-10 ... 40 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.5 ± K
Max. discharge pressure
0,4 bar
Max. pump flow pressure
16 L/min
In / Outlet connection thread (outside)
Ø 10 mm
Min. filling volume
2 L
Max. filling volume
4 L
Dimensions (WxDxH)
200 x 350 x 465 mm
weight_PIM
27 kg
Noise level
60 dB(A)
Net weight
27 kg
Max. power consumption
0.23 kW
Power consumption
2.5 A
Power supply
115 V; 60 Hz
Power plug
Power cord with plug (NEMA 5-15P)
TemperatureTempering mediumCooling capacity 60 Hz
20 °CEthanol0.25 kW
10 °CEthanol0.2 kW
0 °CEthanol0.15 kW
-10 °CEthanol0.09 kW
