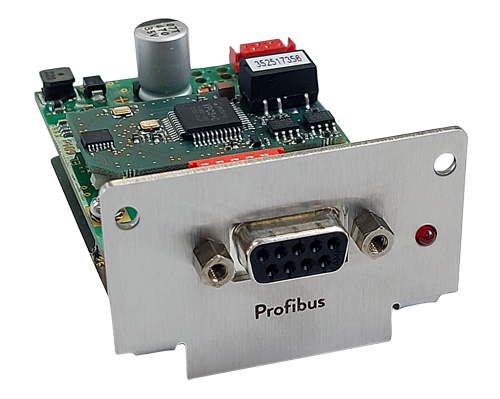

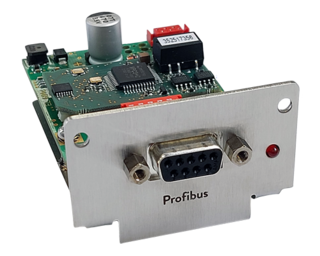

Profibus module Advanced, LiBus



D-SUB 9-pin

Interface for the transmission of extensive digital write and read commands for device control

Compatible with LAUDA PRO, Integral IN and Variocool, which have free module slots



Part no. : LRZ 929
Inquire about product
Profibus module Advanced, LiBus
Back to overview Accessories

Features

Interface for the transmission of extensive digital write and read commands for device control
Short mode: simple module for basic functionalities
Mounting plate large
Suitable connection plug D-SUB, 9-pin , EKS 210 (not included in delivery)
Compatible with LAUDA PRO, Integral IN and Variocool, which have free module slots
Large mode: Comprehensive module for complete control and parameterization of the device
Scope of functions depending on the temperature control unit
Two different operating modes as configurable virtual modules:
For real-time communication
Software update via temperature control unit possible

Technical data (according to DIN 12876)

Weight
0.10 kg
Download Data sheet LRZ 929
