Features

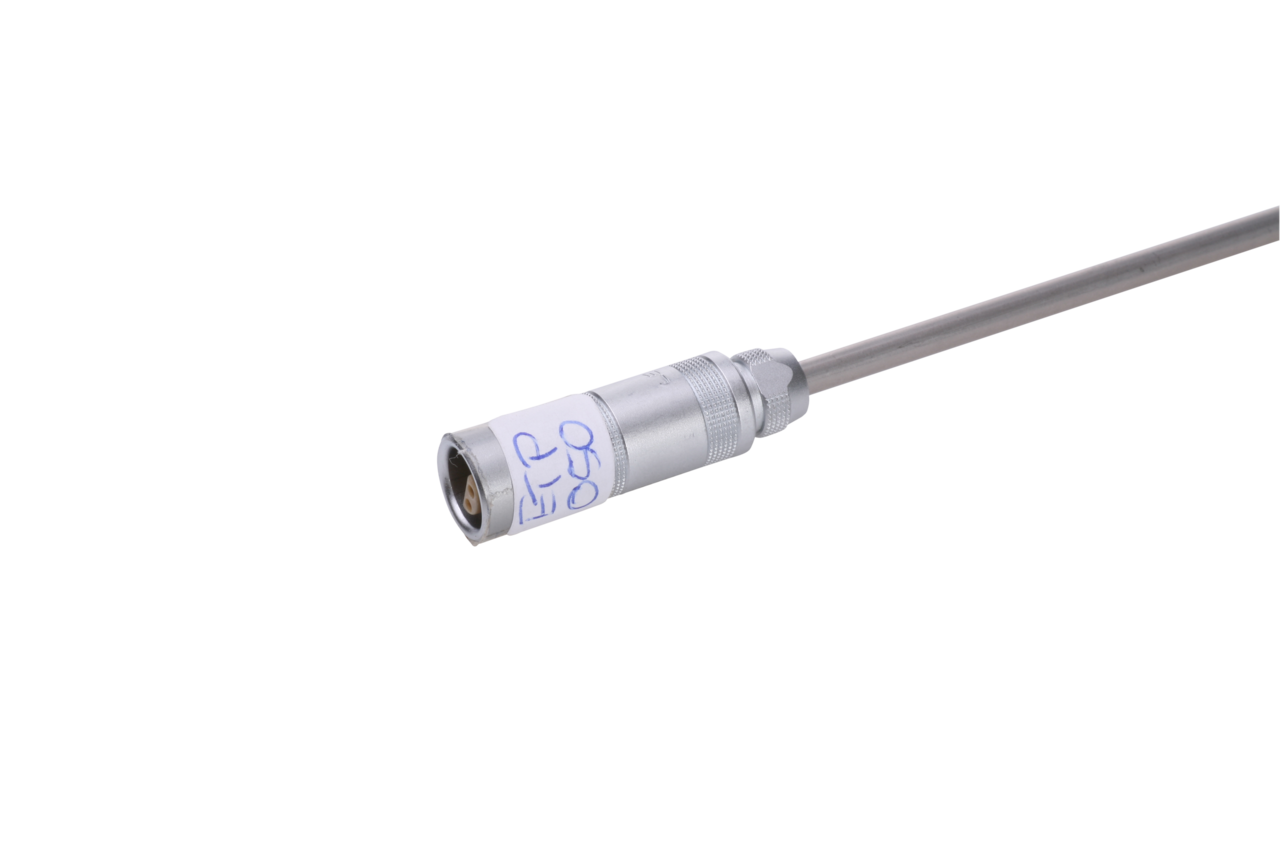

Connector plug mounted directly on the probe.
Resistance thermometer (4-wire circuit) class A according to DIN EC 751
Probe design: straight
Connector plug: Lemo connector, size 1, four-pole
Technical data (according to DIN 12876)
outer diameter
4 mm
Immersion_Depth
80 mm
Operating temperature range
-100 ... 300 °C
Material
CrNi steel (1.4571)
weight_PIM
0.1 kg
