Heating thermostats with transparent baths for temperatures from 20 to 100 °C
Both control heads have a high-powered circulation pump that can be adjusted in six stages.
The transparent baths come in four sizes with bath volumes between 6 and 20 liters.
As standard, all heat thermostats with transparent baths are equipped with a cooling coil.
Overview
Benefits and added value
-
Integral programmer for automating temperature profiles
-
Flow rate switch on the control head for individual setting of the internal and external circulation, can be switched during operation
-
External Pt100 sensor and LiBus in a module available for external control via command remote control
-
Separate setting for overtemperature protection and individual limiting of working temperature range
![](/fileadmin/_processed_/0/5/csm_LAUDA_ECO_ET_12_Transparentbad_1d66d478b4.png)
Working range
LAUDA ECO heating thermostats with transparent bath are available with a bath volume of 6 to 20 L. With the practical flow division on the control head, an individual division of the flow between internal and external circulation is possible even during operation.
![Min. working temperature](/pim/image/L001096/icon-produkt-arbeitstemperatur-min.png)
Min. working temperature
20 °C
![Max. working temperature](/pim/image/L001096/icon-produkt-arbeitstemperatur-max.png)
Max. working temperature
100 °C
![Temperature stability](/pim/image/L001096/icon-produkt-temperaturkonstanz.png)
Temperature stability
0.01 ± K
Product lines
Select up to 4 technical parameters that you want to display in the table
Product | Min. working temp | Max. working temp | Heater power max. | Integrated interfaces | Compare product | |
---|---|---|---|---|---|---|
ECO ET 6 G | 20 °C | 100 °C | 2.6 kW | Mini USB | Details | |
ECO ET 6 S | 20 °C | 100 °C | 2 kW | Mini USB | Details | |
ECO ET 12 G | 20 °C | 100 °C | 2.6 kW | Mini USB | Details | |
ECO ET 12 S | 20 °C | 100 °C | 2 kW | Mini USB | Details | |
ECO ET 15 G | 20 °C | 100 °C | 2.6 kW | Mini USB | Details | |
ECO ET 15 S | 20 °C | 100 °C | 2 kW | Mini USB | Details | |
ECO ET 20 G | 20 °C | 100 °C | 2.6 kW | Mini USB | Details | |
ECO ET 20 S | 20 °C | 100 °C | 2 kW | Mini USB | Details |
Device dimensions
![](/pim/_processed_/c/5/csm_lau_ECO_ET_6_S_694af88b74.png)
![](/pim/_processed_/d/1/csm_lau_ECO_ET_20_S_43f28bdbbb.png)
![](/pim/_processed_/1/a/csm_lau_ECO_ET_15_S_59330be89a.png)
![](/pim/_processed_/e/5/csm_lau_ECO_ET_12_S_73327ca2f7.png)

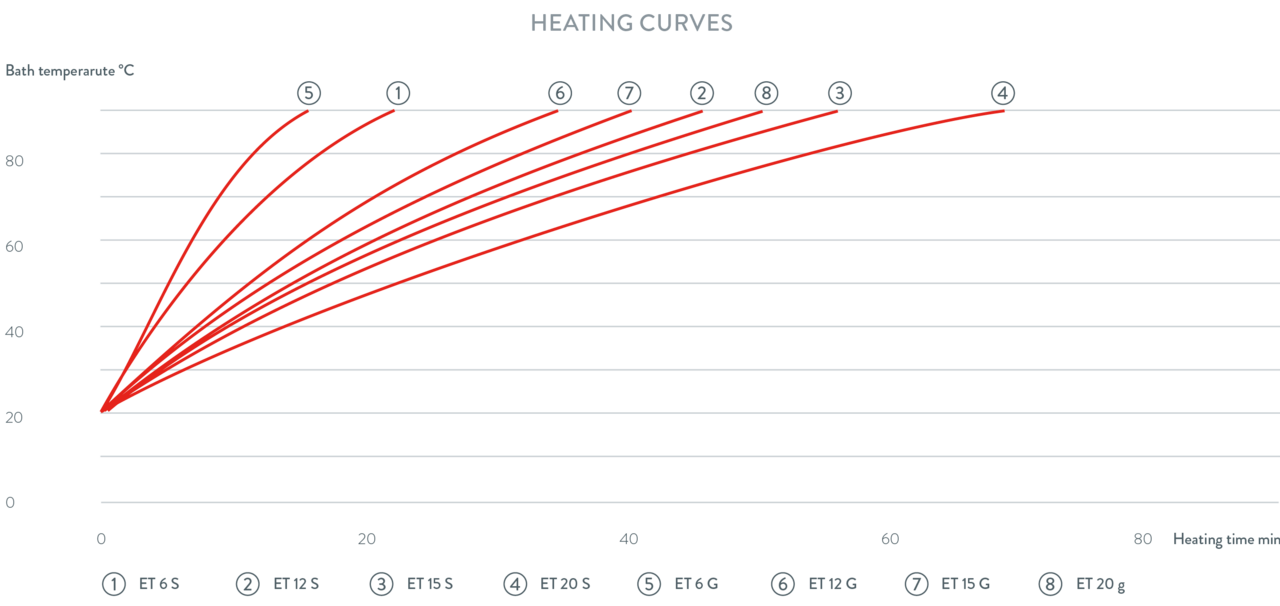

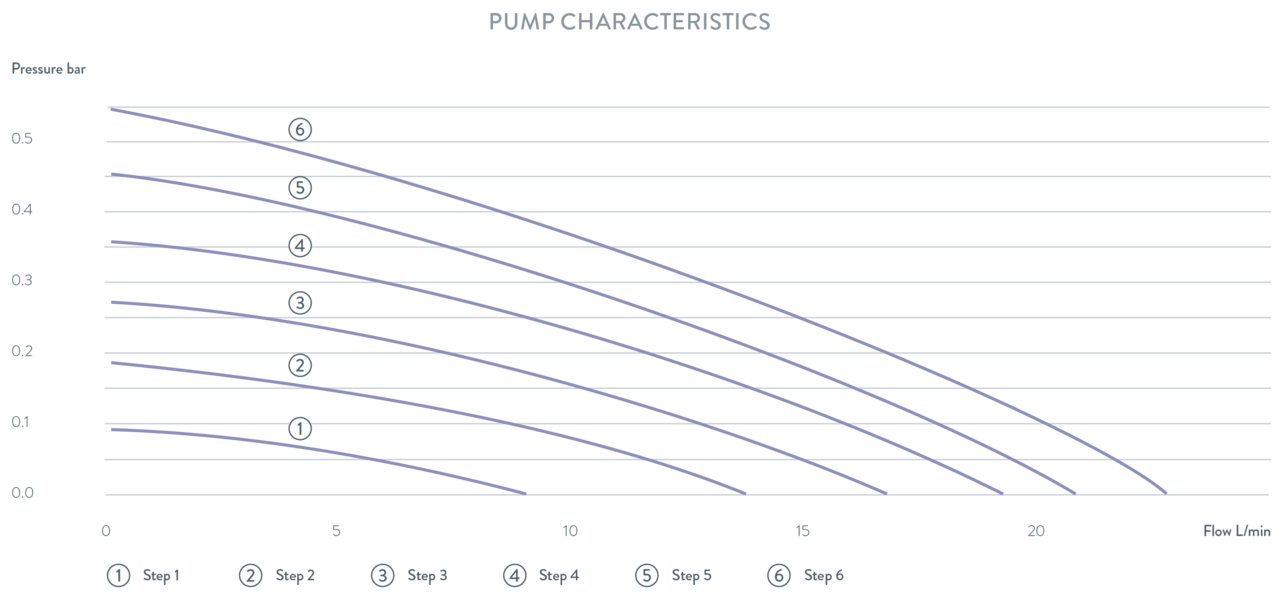

Characteristics
![](/pim/_processed_/8/b/csm_EN_Aufheizkurve_ECO_ET_6S_12S_15S_20S_6G_12G_15G_20G_23-07-11_558040653c.png)
![](/pim/_processed_/9/5/csm_EN_Pumpenkennlinie_ECO_Wasser_23-07-11_c0a584e825.png)
