Variocool VC 1200

All models are available in air- or water-cooled versions (W) and are equipped with steerable fixed castors. Sound insulation or the option for outdoor installation is available for the powerful process thermostats in tower design from the VC 5000.

Part no. : L000932
Inquire about product
Circulation and process thermostats Variocool VC 1200
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Circulation and process thermostats

Features

Process thermostat suitable for use with non-flammable heat transfer liquids
Easy input via cursor and soft keys
Powerful pressure pump

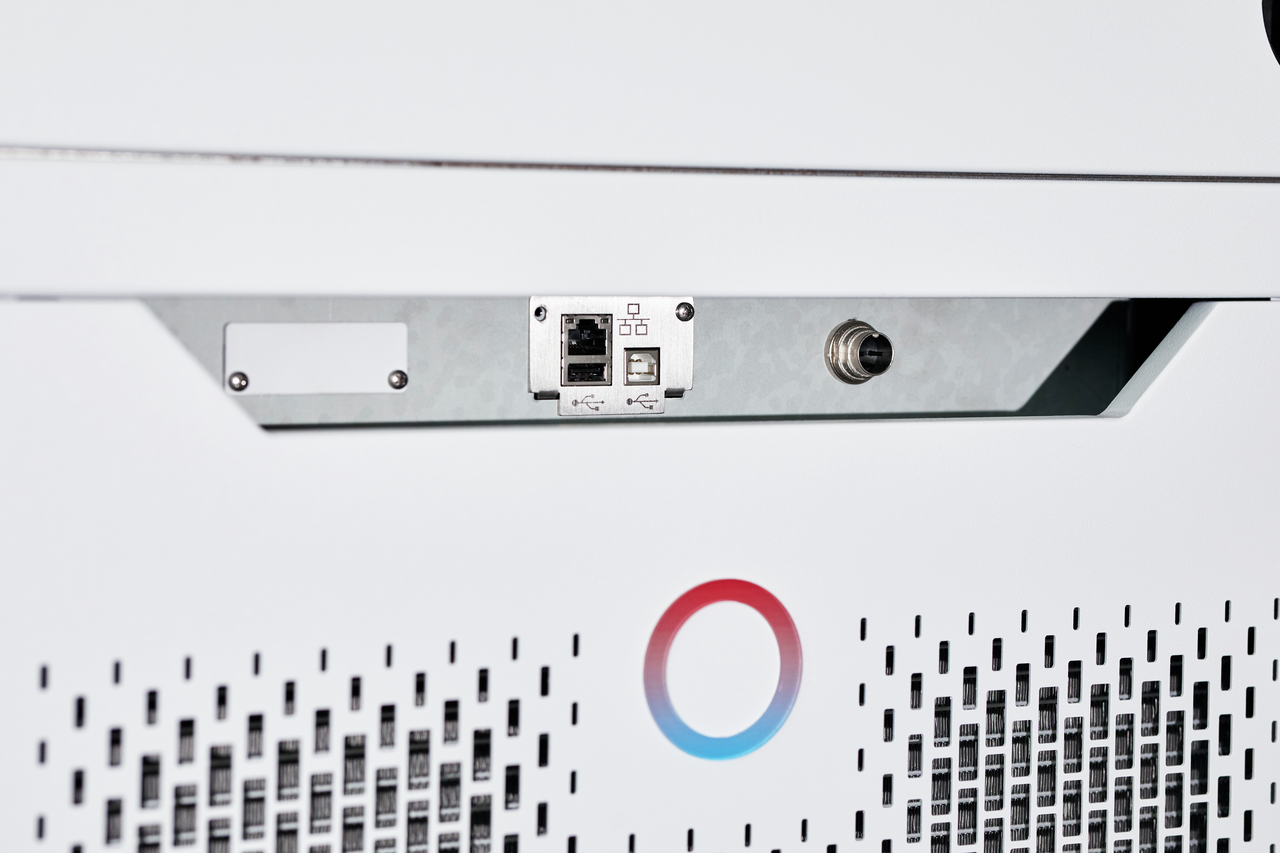

Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Filler opening on top, drain tap on the backside
Condenser cooling Air
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Fully electronic continuous controller with PID action
USB interface as standard
Integrated programmer with max. 150 segments, splitable in 5 programmes
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operates with non flammable liquids (water,water/glycol)
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
Electronic level indication and low level alarm
Remote fault indication through floating contact
Adjustable bypass for pressure limiting
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024

Working range

Working temperature min.

Working temperature min.

-20 °C

Max. working temperature

Max. working temperature

80 °C

Temperature stability

Temperature stability

0.05 ± K

Technical data (according to DIN 12876)

Working temperature range
-20 ... 80 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.05 ± K
Heater power max.
2.25 kW
Max. power consumption
3.3 kW
Power consumption
13 A
Max. discharge pressure
3,2 bar
Max. pump flow pressure
37 L/min
In / Outlet connection thread (outside)
G 3/4"
Pressure adjustment
bypass
Min. filling volume
8 L
Max. filling volume
15 L
Dimensions (WxDxH)
450 x 550 x 790 mm
Weight
51 kg
Power supply
230 V; 50 Hz
Power plug
Power cord with angled plug (BS1363)
TemperatureTempering mediumCooling capacity 50 Hz
20 °CEthanol1.12 kW
10 °CEthanol0.92 kW
0 °CEthanol0.62 kW
-10 °CEthanol0.32 kW
-20 °CEthanol0.06 kW
Download Data sheet Variocool VC 1200
