Hydro H 20 SOW

The built-in speed controller of LAUDA Hydro shaking water baths allows a load-independent, infinitely adjustable shaking movement with a smooth start-up. The two shaking water baths H 20 SW and H 20 SOW are equipped with a cooling coil as standard. The temperature range of the shaking water baths can be extended downwards to up to 10 °C by connecting them to the domestic water supply or to commercially available circulating coolers.

Order no.: L003007

Features

Shaking water bath for exactly reproducible temperatures

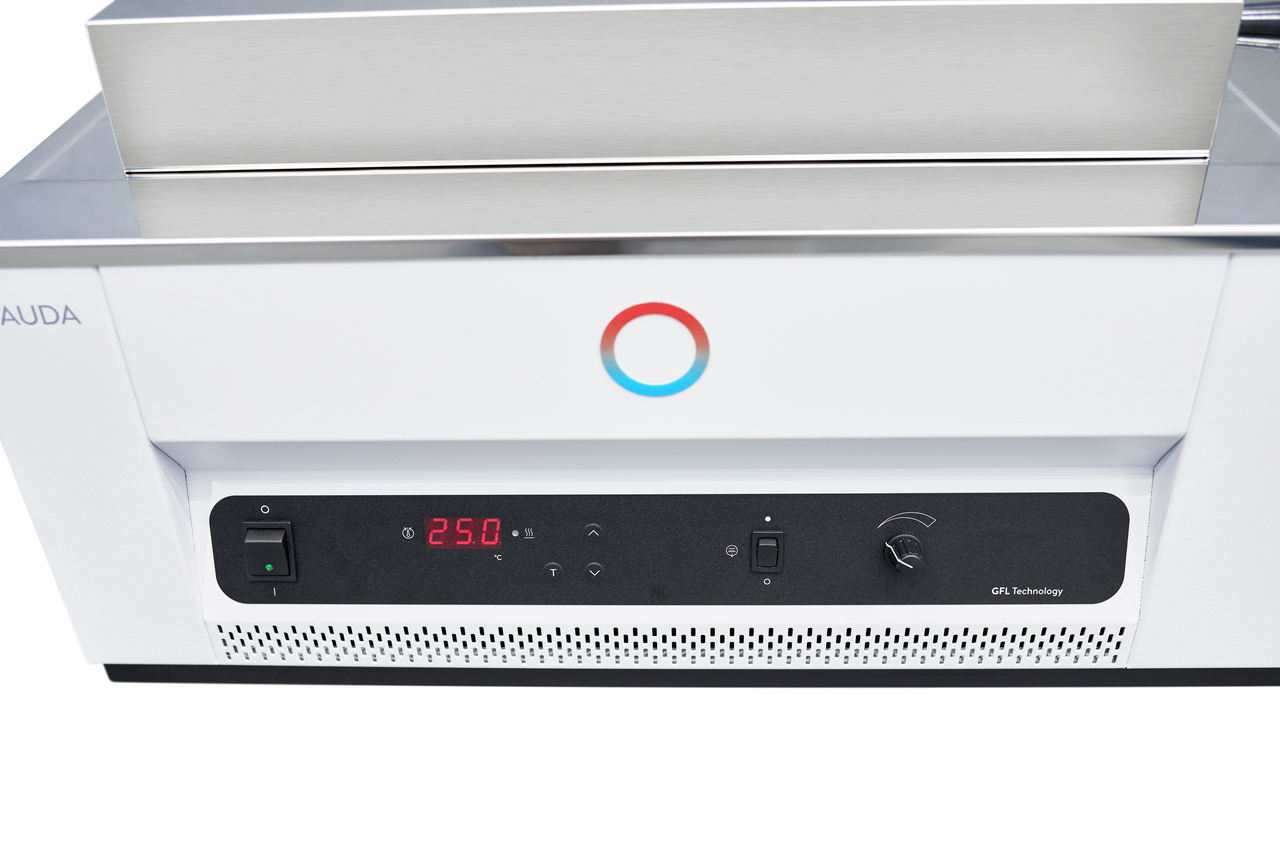

Membrane keypad with concise symbols
1-point temperature controller
Cooling coil as standard
Orbital shaking motion

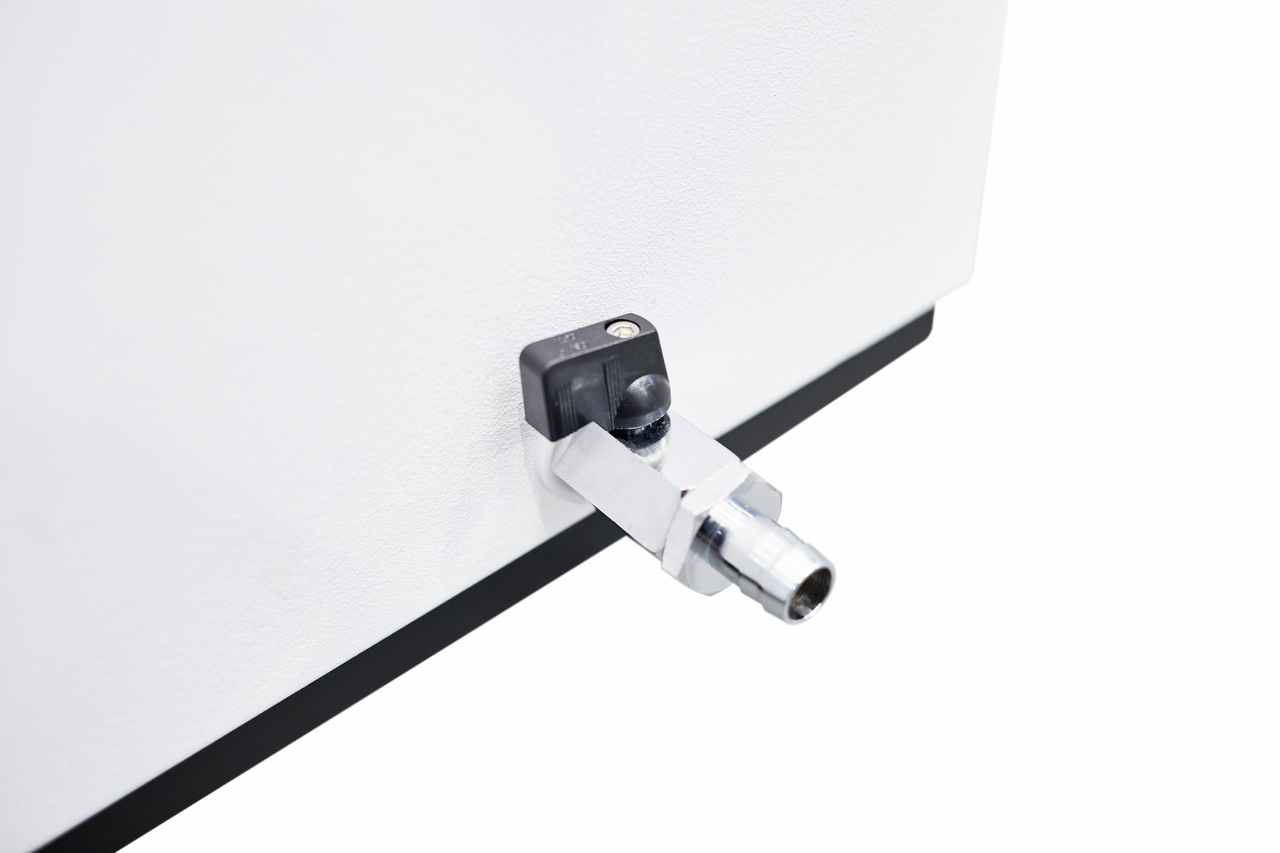

Bath vessel with drain valve
Bath interior, cover, shaking basket and heating element are made of stainless steel
Easy-to-read LED display
Digital setpoint adjustment
Overtemperature protection for operation with non-flammable liquids and water deficiency protection
Shaking device with a gentle start-up and overload-protected
Shaking basket can be easily removed for cleaning purposes.
Heat insulating lid made of stainless steel, double-walled with inner curvature
Lid and perforated tray as standard.
Setting and displaying temperature values in increments of 0.1°C.
Speed continuously adjustable, load-independent, with gently controlled start-up
Electronic monitoring of the temperature controller
The shaking device is guided on corrosion-resistant special ball bearings
Cover frame with condensate channel
prevents condensate from dripping back into the vessels

Working range

Working temperature min.

25 °C

Max. working temperature

80 °C

Temperature stability

0.1 ± K

Technical data (according to DIN 12876)

Working temperature range
25 ... 80 °C
Ambient temperature range
10 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
1.5 kW
Max. power consumption
1.5 kW
Power consumption
10 A
Min. / max. bath volume
8.5 / 23.1 L
Dimensions (WxDxH)
635 x 505 x 400 mm
weight_PIM
35 kg
Shaking amplitude
14 mm
Shaking frequency
10 ... 250 1/min
Power supply
230 V; 50/60 Hz
Power plug
Power cord with plug (GB2099, 15934)
