Mobifreeze ultra low temperature chest freezer

For optimum temperature-controlled transportation down to –86 °C
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.

The ultra-low temperature freezer for pharmaceutical logistics requirements

The mobile ultra-low temperature freezer creates ideal conditions for controlled transport and perfect integration into the cold chain, both in intralogistics and in factory transport in road logistics. The freely adjustable temperatures between −86 and −50 °C or −40 and 0 °C meet pharmaceutical GDP logistics requirements.

If the limit values are exceeded, an acoustic and visual signal is emitted, and a built-in data logger stores the temperature and alarm data. Risks that can arise from relocation, damage, or mix-ups are avoided thanks to the option of stationary and mobile hybrid use.

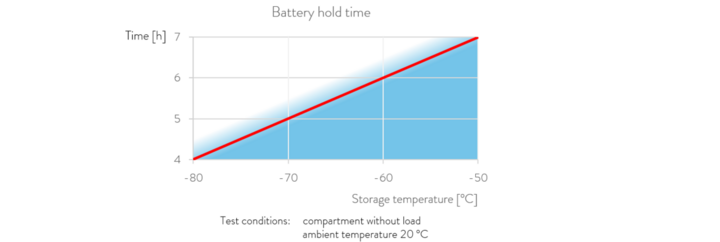

The battery-powered laboratory freezer ensures the safe transport of pharmaceutical products at the ideal storage temperature. The battery backup maintains the display and alarm functions even during a power failure.

Working range

Keeping the cold chain controlled during transportation thanks to a constant temperature – with our new Mobifreeze product, we have managed to turn our vision into reality. The battery-powered and mobile ultra low temperature chest freezer sets new standards in the field of intralogistics.

Working temperature min.

Working temperature min.

-86 °C

Max. working temperature

Max. working temperature

0 °C

Temperature stability

Temperature stability

3 ± K

Product lines



Select up to 4 technical parameters that you want to display in the table

ProductUsable volumeMin. temperature rangeInterior dimensions (WxDxH)Dimensions (WxDxH)Compare product
Mobifreeze M 270
Refrigeration technology with natural refrigerants - Icon
270 L -86 °C 900 x 600 x 500 mm 1471 x 933 x 1217 mm Details
Mobifreeze M 27040
Refrigeration technology with natural refrigerants - Icon
270 L -40 °C 900 x 600 x 500 mm 1471 x 933 x 1217 mm Details

Device dimensions

1471 x 933 x 1217 mm

Mobifreeze M 27040

Mobifreeze M 270

Downloads - general product data

Please select which documents you would like to see in which language:

Available documents
Available languages
DeviceDevice categoryDocument typeLanguageFormatFile size
Mobifreeze Freezers Brochure
English
PDF 1,23 MB Download document Download document
Test Report Battery Mobifreeze Freezers Customer information
English
PDF 941,83 kB Download document Download document
Mobifreeze Freezers Operating instruction
English
PDF 11,18 MB Download document Download document
