Features

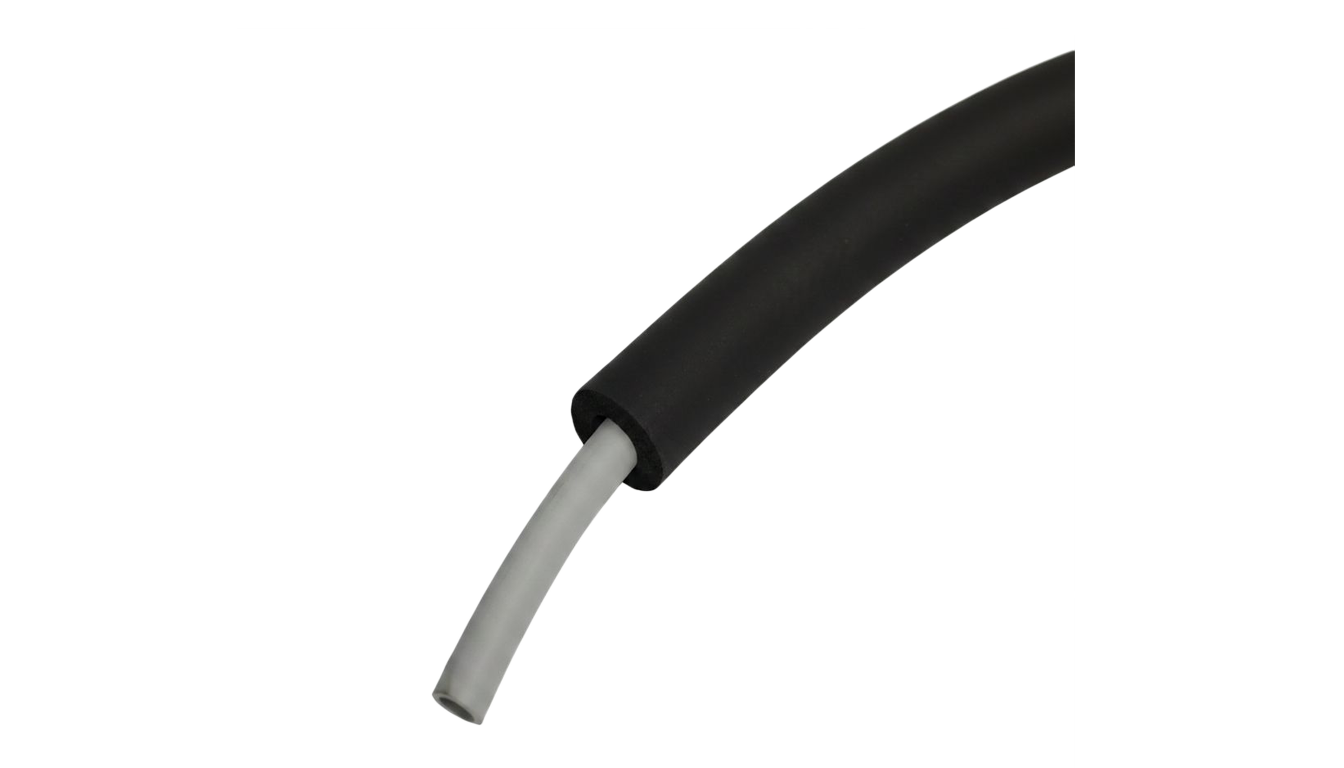

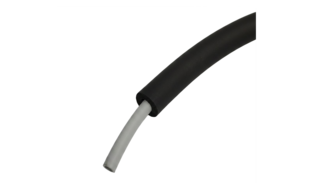

EPDM hose with additional insulation for connection to pump nozzles with hose nipples
EPDM hose not suitable for mineral oils and Ultra 350
Insulation made of highly flexible, closed-cell insulating material based on EPDM.
Hose available by the metre
The insulating material is weather-, UV- and ozone-resistant and is characterised by high water vapour diffusion resistance and low thermal conductivity.
Technical data (according to DIN 12876)
Operating temperature range
-35 ... 90 °C
length
100 cm
inner diameter
12 mm
outer diameter
16 mm
Insulation Thickness
9 mm
Material inside
EPDM
Material outside
EPDM
Data sheet
Data sheet LZS 021
