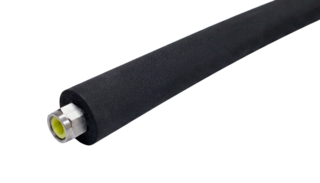

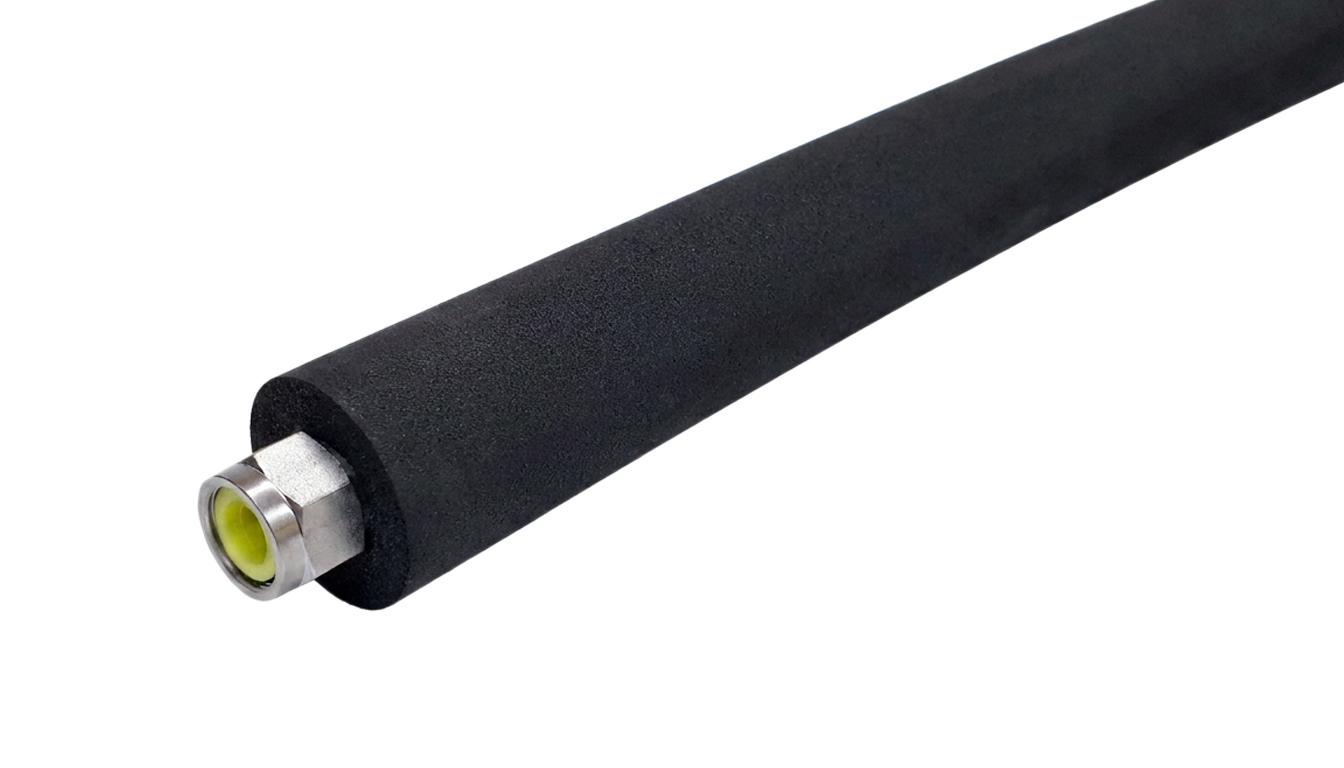

Metal hose



M16 x 1, temp. range: -90 … 150 °C, 50 cm



Part no. : LZM 052

Features

Corrugated metal hose for temperature control with different heat transfer liquids
Hose available by the metre
Conical sealing
Insulation for cryogenic, closed porous

Technical data (according to DIN 12876)

Operating temperature range
-90 ... 150 °C
Connection 1 thread (inside)
M16 x 1
Connection 2 thread (inside)
M16 x 1
length
50 cm
inner diameter
10 mm
Insulation_Thickness
10 mm
Material
Stainless steel
