性能特征
Thermostatic circulator with latest microprocessor technology. Integrated cooling system
EasyUse system for simple operation of the whole unit
Data in- and export via USB
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Tower design with small footprint
Bath vessel made of stainless steel (insulated, with overflow and drain tap)
Utilizes natural refrigerants
Large 5,7" Multi-Touch-Color display
Command console can be detached and used as remote control
Timer und count-down-function

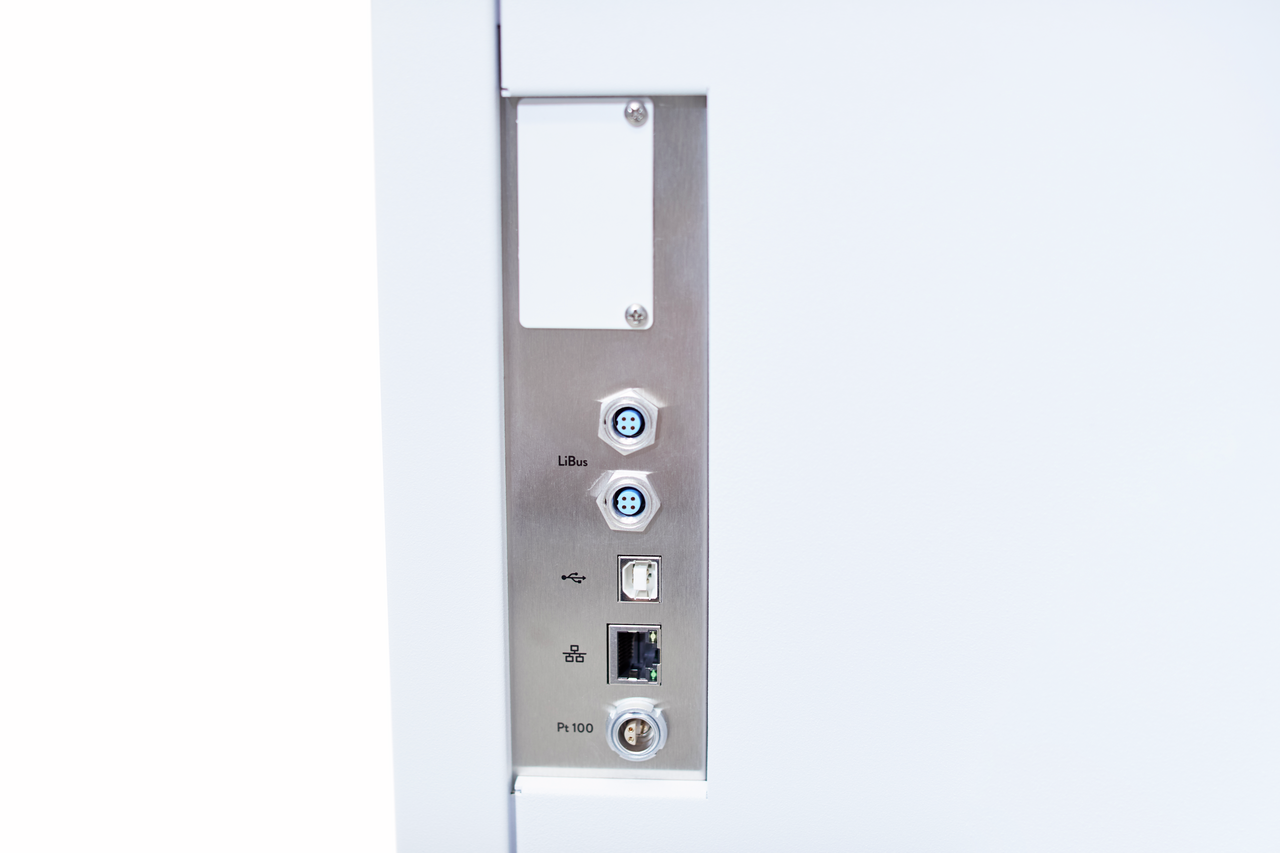

USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, connections rear
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with multi touch display
User administration for up to 20 user
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Programmer with up to 100 programs, up to 50 segments each
Low filling volume enables rapid changes in temperature
Hybrid cooling system: (heat removal complementary with cooling water)
工作范围
最小工作温度
-40 °C
最大工作温度
200 °C
温度稳定性
0.05 ± K
技术特征(依据 DIN 12876)
工作温度范围
-40 ... 200 °C
运行温度范围
-40 ... 200 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.05 ± K
最大加热功率
2.5 kW
最大功率消耗
3.7 kW
电流消耗
16 A
最大输送压力
0,7 bar
Pump_suction
0,4 bar
泵最大输送流量(压力)
22 L/min
输入/输出连接螺纹(外部)
M16 x 1
输入/输出 Ø 橄榄形
13 mm

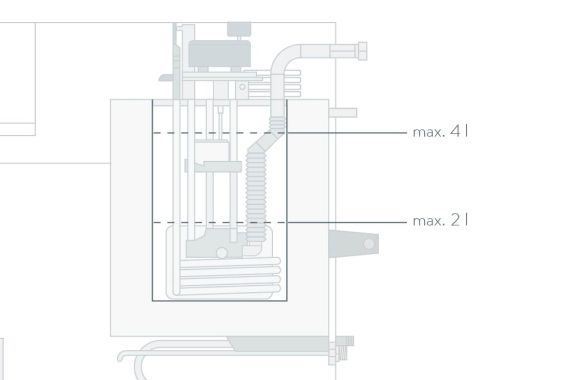

最小灌注容积
2.4 L
最大灌注容积
4.4 L
尺寸(宽x深x高)
300 x 430 x 675 mm
重量
42 kg
电源供应
230 V; 50 Hz
电源插头
带插头的电源线 (SEV 1011, SEV 5934/2, T23)
Temperatur | Pumpenstufe | Temperiermedium | Kälteleistung 50 Hz |
---|---|---|---|
20 °C | 8 | Ethanol | 0,6 kW |
10 °C | 8 | Ethanol | 0,6 kW |
0 °C | 8 | Ethanol | 0,6 kW |
-10 °C | 8 | Ethanol | 0,41 kW |
-20 °C | 4 | Ethanol | 0,24 kW |
-30 °C | 4 | Ethanol | 0,12 kW |
-35 °C | 4 | Ethanol | 0,07 kW |
-40 °C | 2 | Ethanol | 0,02 kW |
