Stainless steel test tube rack
性能特征
Simple to operate water bath
Setting the timer's time values in hours (h) and minutes (min).
Adjustable trigger points for over- and under-temperature alarms up to max. +/- 10 K
Optical and acoustic alarm for low-level and over/under temperature
Three application-specific timer functions.
Heat insulating lid made of stainless steel, double-walled with inner curvature

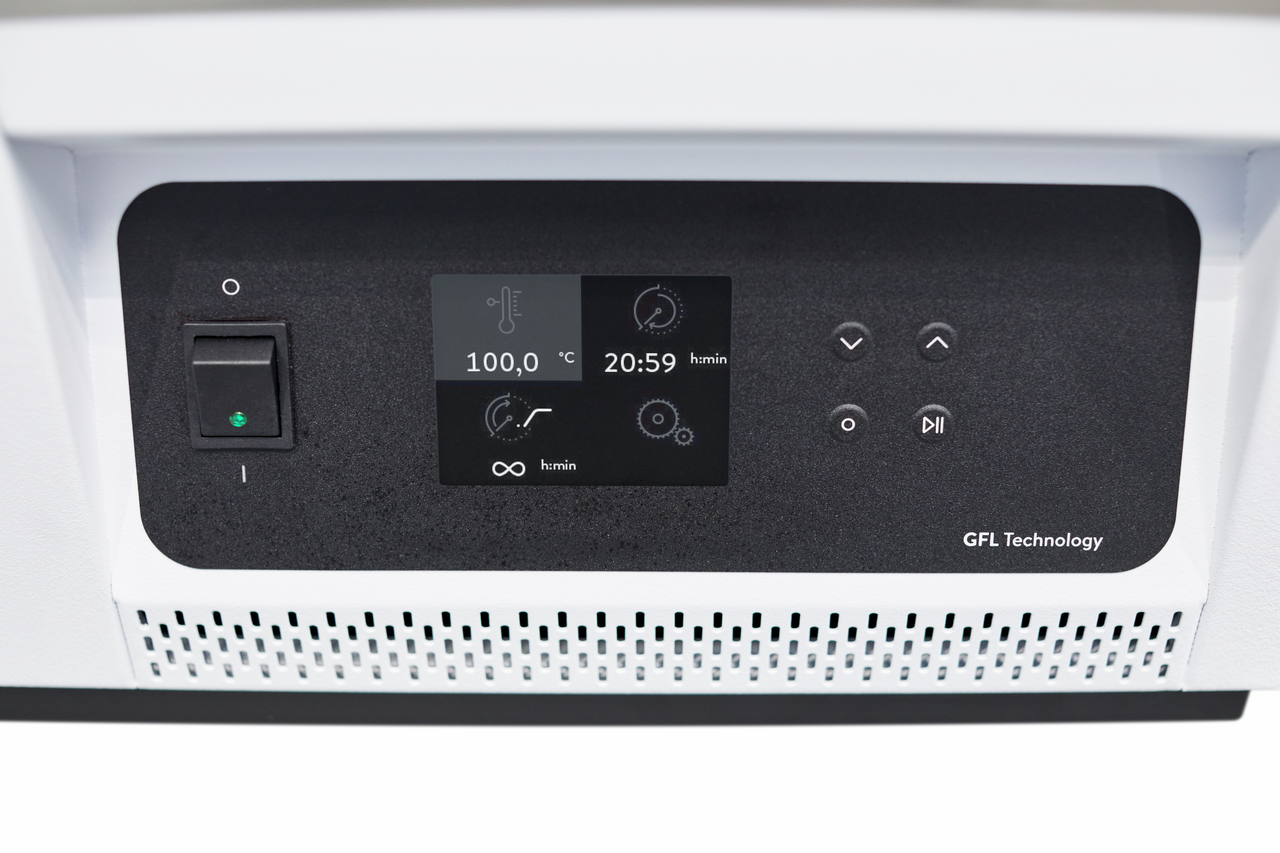

TFT display with clear display of all process data
Membrane keypad with concise symbols
Temperature display can be switched from °C to °F
as well as for sensor break/short-circuit
Bath interior, cover, sieve plate and heating element are made of stainless steel.
prevents condensate from dripping back into the vessels
Setting and displaying temperature values in increments of 0.1°C.
Digital setpoint adjustment
1-point temperature controller
Electronic monitoring of the temperature controller
Bath vessel with drain valve

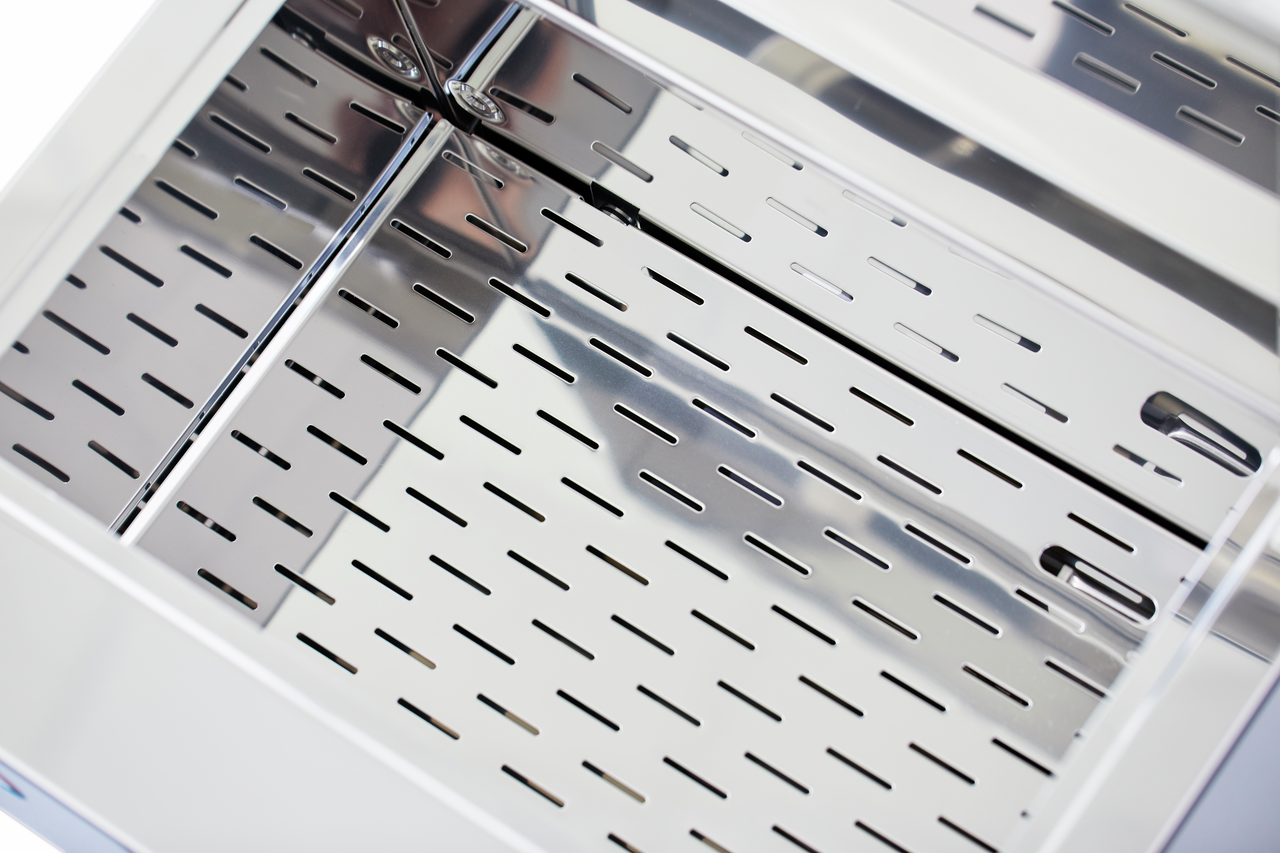

Lid and perforated tray as standard.
工作范围
最小工作温度
25 °C
最大工作温度
100 °C
温度稳定性
0.1 ± K
技术特征(依据 DIN 12876)
工作温度范围
25 ... 100 °C
环境温度范围
10 ... 40 °C
温度稳定性
0.1 ± K
最大加热功率
1.5 kW
最小/最大浴槽容积
7,5 / 20,3 L
尺寸(宽x深x高)
500 x 440 x 345 mm
重量
16 kg
电源供应
230 V; 50/60 Hz
电源插头
带插头的电源线 (SEV 1011, SEV 5934/2, T23)
