Varioshake VS 30 O

LAUDA Varioshake振动器有载重8至30公斤的型号,工作面最大为676 x 540毫米。直观的数字控制,操作简单。

订购编号: L003156

性能特征

Shaker with orbital motion, heavy duty, low noise, in a compact design
User-friendly microprocessor technology
Optional RS 232 interface on request
Drive by an overload-protected AC motor
Excellent for continuous use
Shaking frequency display and setting digitally via LC display, in steps of 1.0 rpm, gentle start-up
Membrane keyboard with distinctive symbols.
Large shaking table made of electrolytically galvanized, powder-coated sheet steel
Compact, low-wear mechanism with mass balancing for a secure stand
Outer housing made of electrolytically galvanized sheet steel, powder-coated

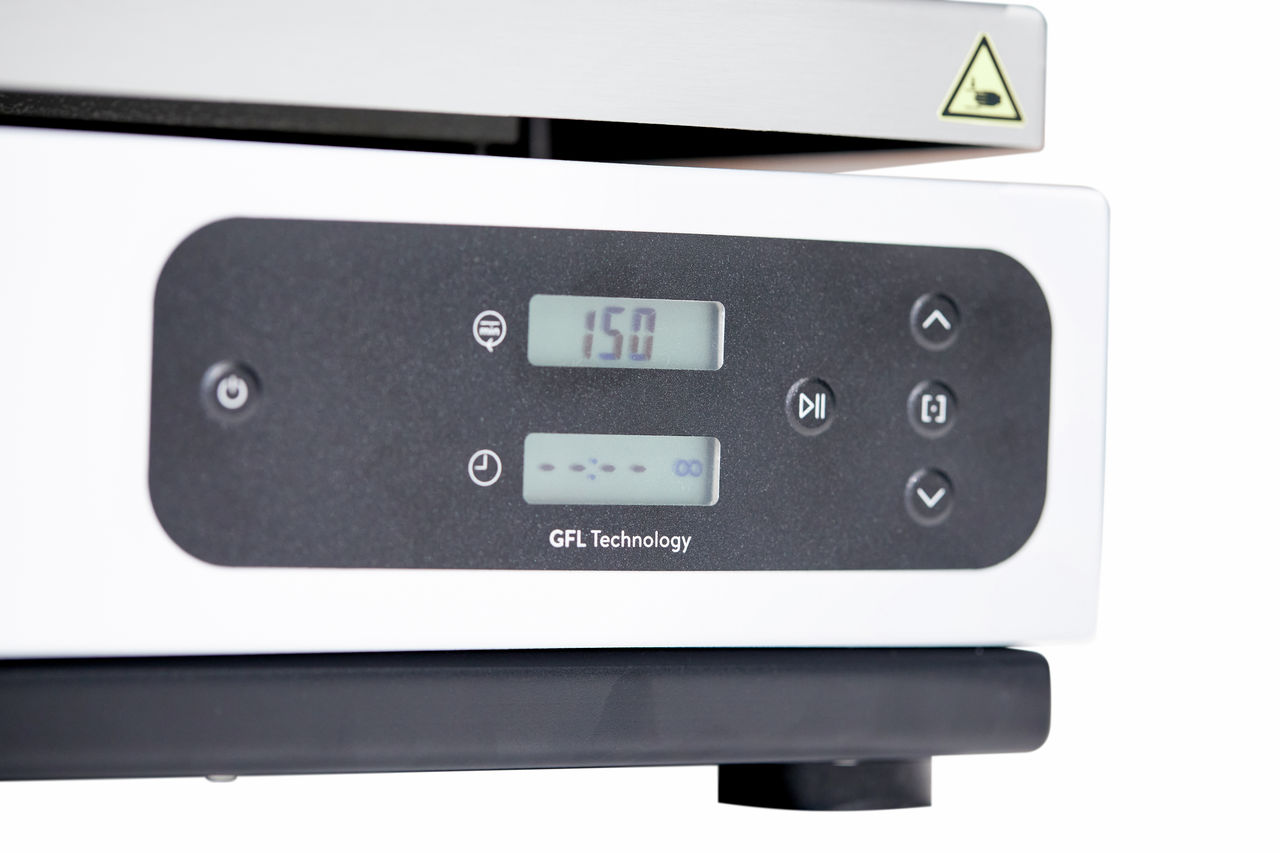

The setpoint and actual values ​​as well as the shaking frequency are displayed on two LC displays
Timer adjustable from 1 min. up to 99:59 hours or continuous operation

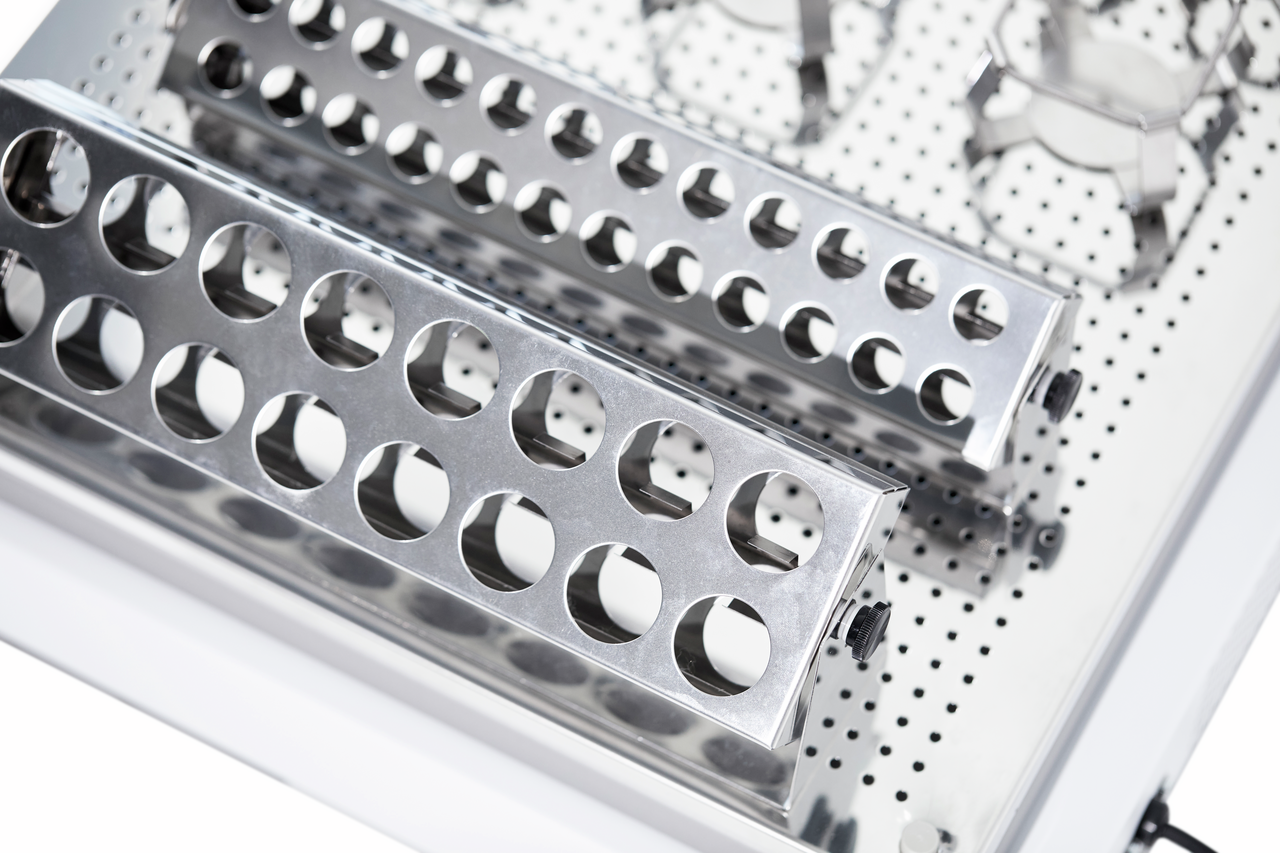

Four support rods and collars for secure attachment of accessories
Constant speed, independent of load
Special rubber mat for good adhesion of the objects on the shaking table

Technical data

环境温度范围
10 ... 50 °C
最大功率消耗
0.09 kW
振荡振幅
32 mm
振荡频率
20 ... 250 1/min
最大承载量
30 kg
尺寸(宽x深x高)
705 x 607 x 160 mm
重量
34 kg
电源插头
带插头的电源线 (NBR 14136)
电源供应
230 V; 60 Hz
