制冷恒温器 Universa U 1645 M

性能特征

Bath circulation thermostat with advanced electronics ensures precise control accuracy

Focus on safety: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning.

Easily accessible front switch on the control head allows the pump output to be adjusted during operation.

Adaptive bath edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect electronics. To increase operational safety and extend service life.

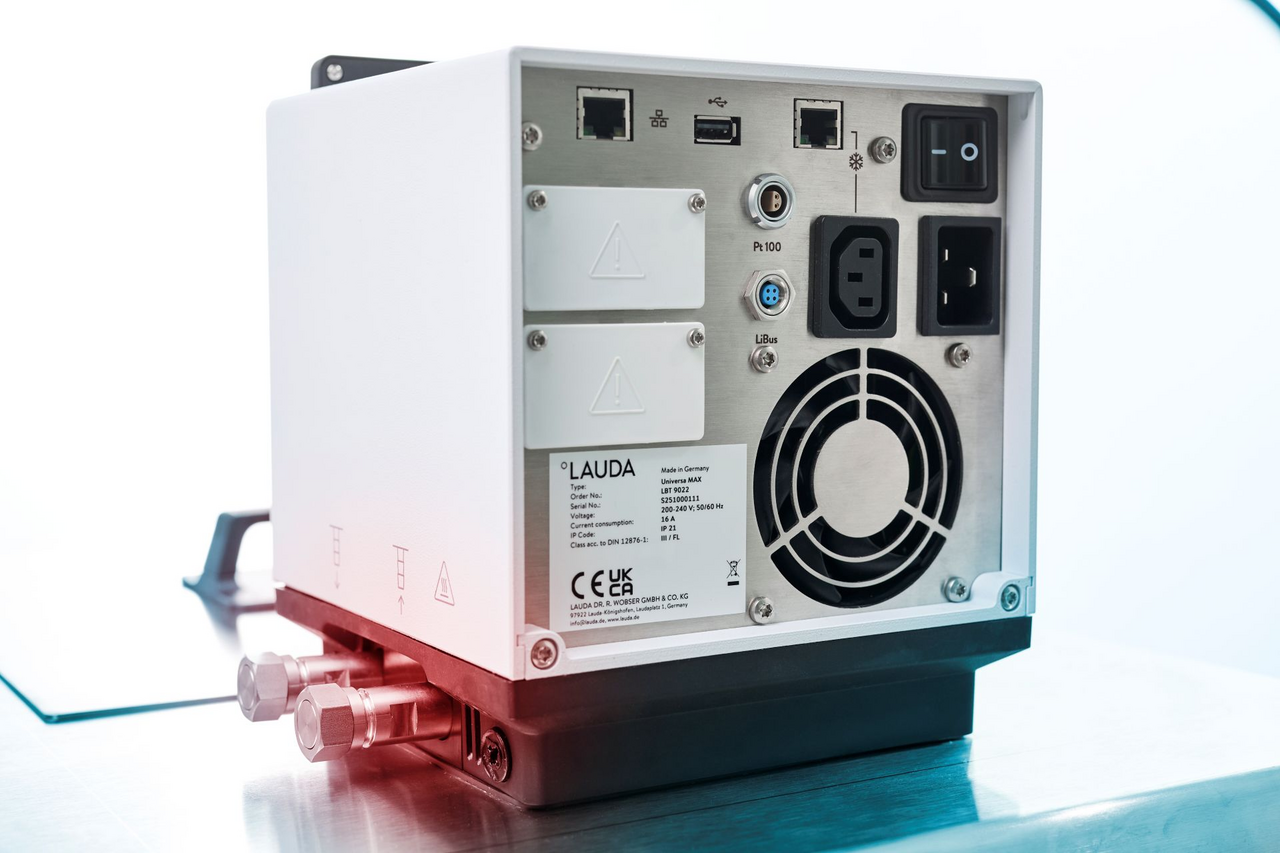

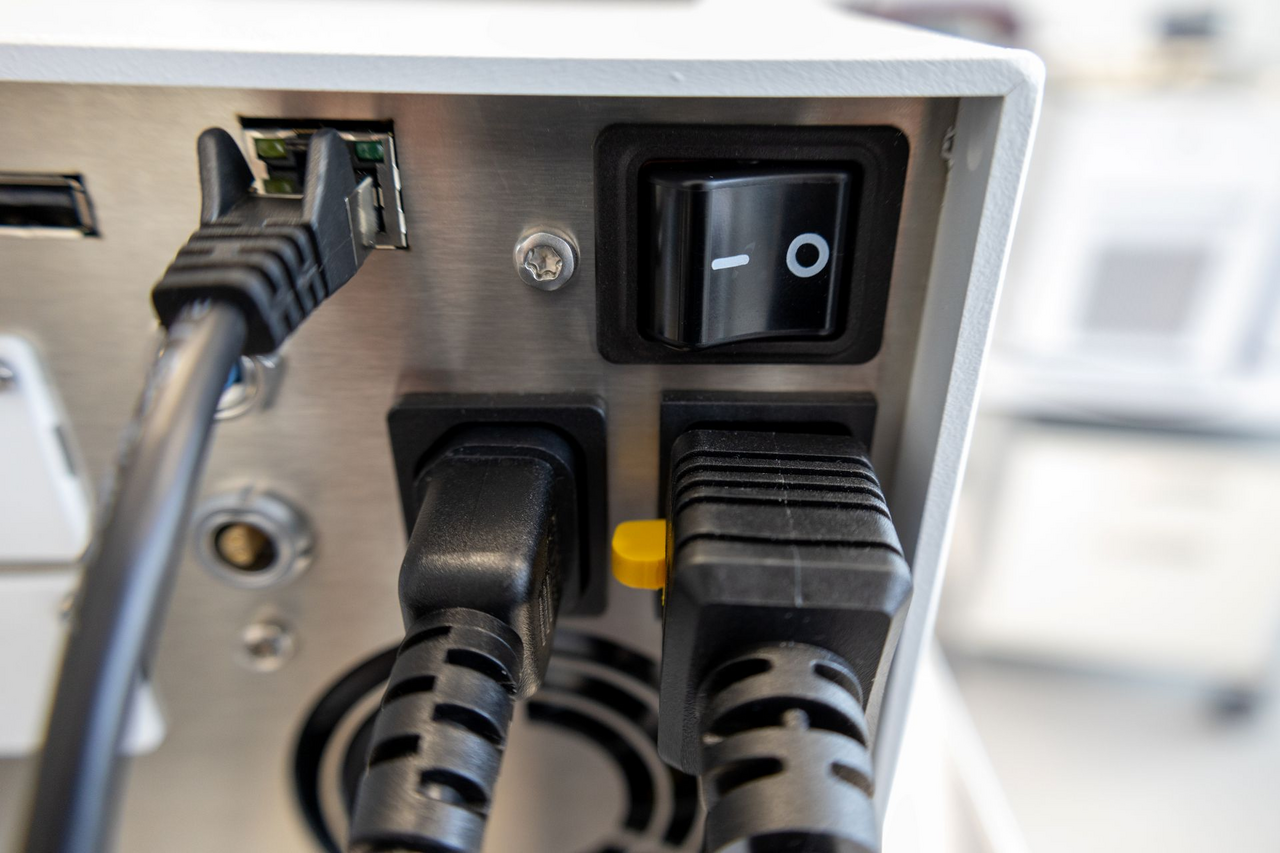

Maximum networking: Comprehensive connectivity for almost any application thanks to standard Ethernet, USB and interface for an external Pt100 as well as eleven optional interface modules.

Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.

Versatile pressure-suction pump: The LAUDA Varioflex pump, a powerful pressure-suction pump, offers eight selectable performance levels, adjustable flow rate distribution for internal/external circulation for optimal volume flow and pressure

Highly efficient refrigeration technology: Combination of speed-controlled inverter compressor and capacity control by means of electronic expansion valves and speed-controlled fans - for improved energy efficiency and reduced operating costs, - increased service life by avoiding frequent switch-on and switch-off cycles, - dynamic approach to the set temperature and - quieter operation.

Extensive functionality with programmer, safe mode, calibration options, controller self-adaptation and weekly planner for precise and flexible process control.

Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone.

Clear overview, intuitive operation: The 5-inch colour TFT display simultaneously shows temperature values with a progression graph, offers clear menu navigation in six languages and clear operating status icons - easily controlled via cursor and soft keys.

Ball bearing pump for extreme requirements: Guarantees safe operation with highly viscous and dense heat transfer fluids as well as with impurities in the temperature control bath.

Environmentally friendly refrigerants: Use of natural refrigerants for sustainable and environmentally conscious cooling.

Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.

Comprehensive safety functions: - Effective over- and under-level protection - Adjustable overtemperature protection with acoustic alarm - Automatic system diagnostics at start-up with alarm and error message display - Smart temperature control media management with automatic limit value adjustment. For reliable operation and improved safety of your valuable samples.

工作范围

最小工作温度

-45 °C

最大工作温度

200 °C

温度稳定性

0.01 ± K

技术特征

工作温度范围

-45 ... 200 °C

运行温度范围

-45 ... 200 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.01 ± K

电流消耗

16 A

浴室开口（宽 x 深）

200 x 300 mm

最大输送压力

0,7 bar

泵最大吸力

0,4 bar

泵最大输送流量（压力）

25 L/min

输入/输出连接螺纹（外部）

M16 x 1

输入/输出 Ø 橄榄形

13 mm

尺寸（宽x深x高）

310 x 610 x 757 mm

重量

49 kg

电源供应

200-240 V, 50/60 Hz

电源插头

带插头的电源线 (GB2099, 15934)

温度	泵级	回火介质	冷却能力 50 赫兹	冷却能力 60 赫兹
200 °C	8	传热油	1.6 kW	1.6 kW
100 °C	8	传热油	1.6 kW	1.6 kW
20 °C	8	乙醇	1.6 kW	1.6 kW
10 °C	8	乙醇	1.45 kW	1.45 kW
0 °C	8	乙醇	1.2 kW	1.2 kW
-10 °C	8	乙醇	0.86 kW	0.86 kW
-20 °C	4	乙醇	0.58 kW	0.58 kW
-30 °C	4	乙醇	0.35 kW	0.35 kW
-40 °C	4	乙醇	0.15 kW	0.15 kW
-45 °C	4	乙醇	0.07 kW	0.07 kW

数据表 Universa U 1645 M
