Puridest PD 12 R

LAUDA Puridest 蒸馏器不需要专家进行调试和维护，对于接入的原水也没有过高的要求。只需轻松按下按钮，即可提取高纯度的水。

订购编号 : L003256

咨询产品

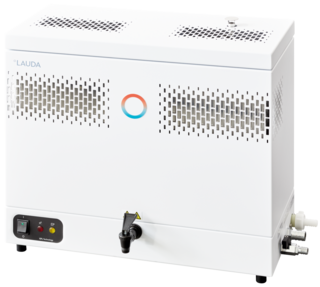

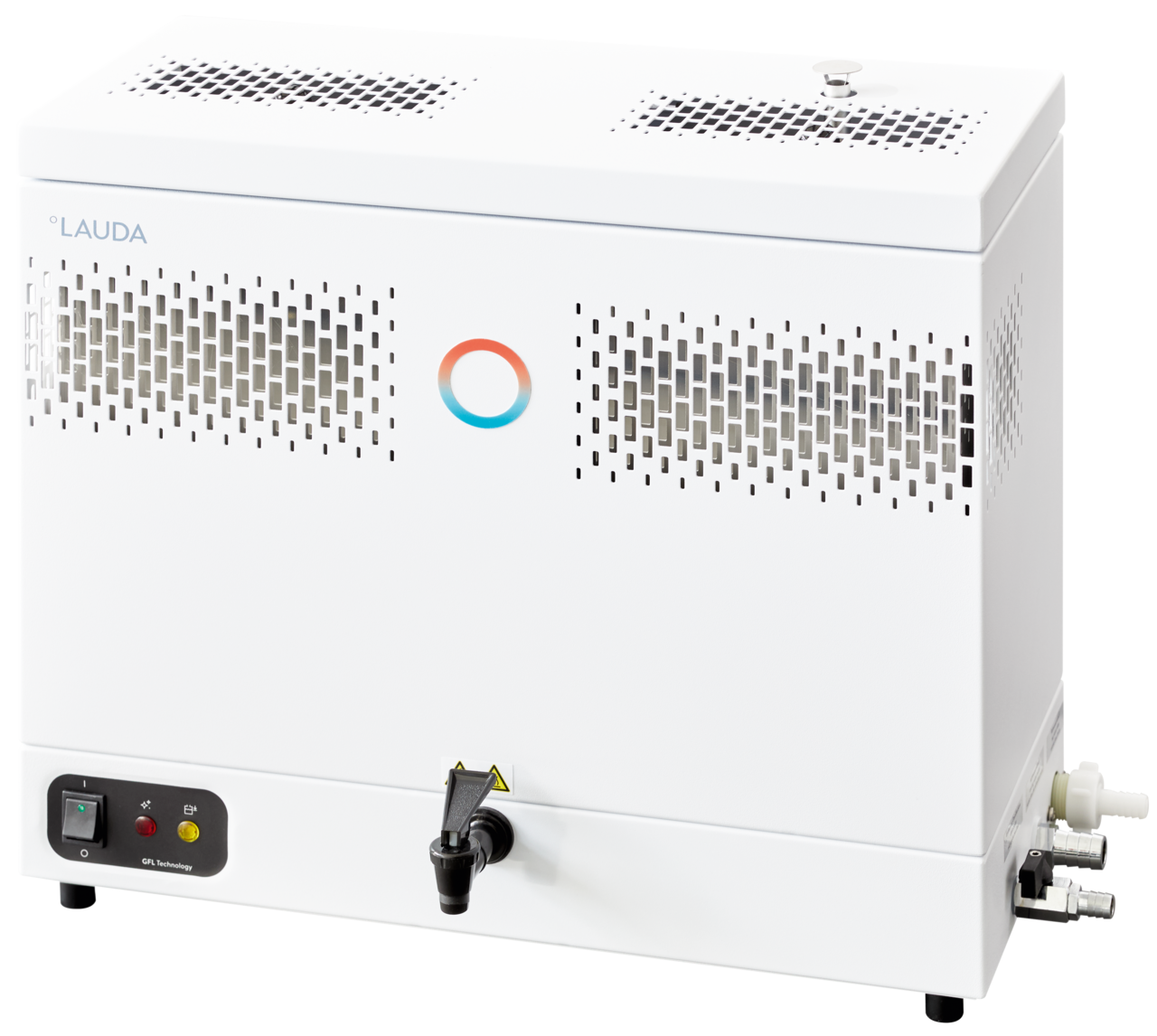

单级蒸馏器 Puridest PD 12 R

返回至概览单级蒸馏器

性能特征

Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting

Condenser (cooling coil) inside the storage tank, easily exchangeable.

Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.

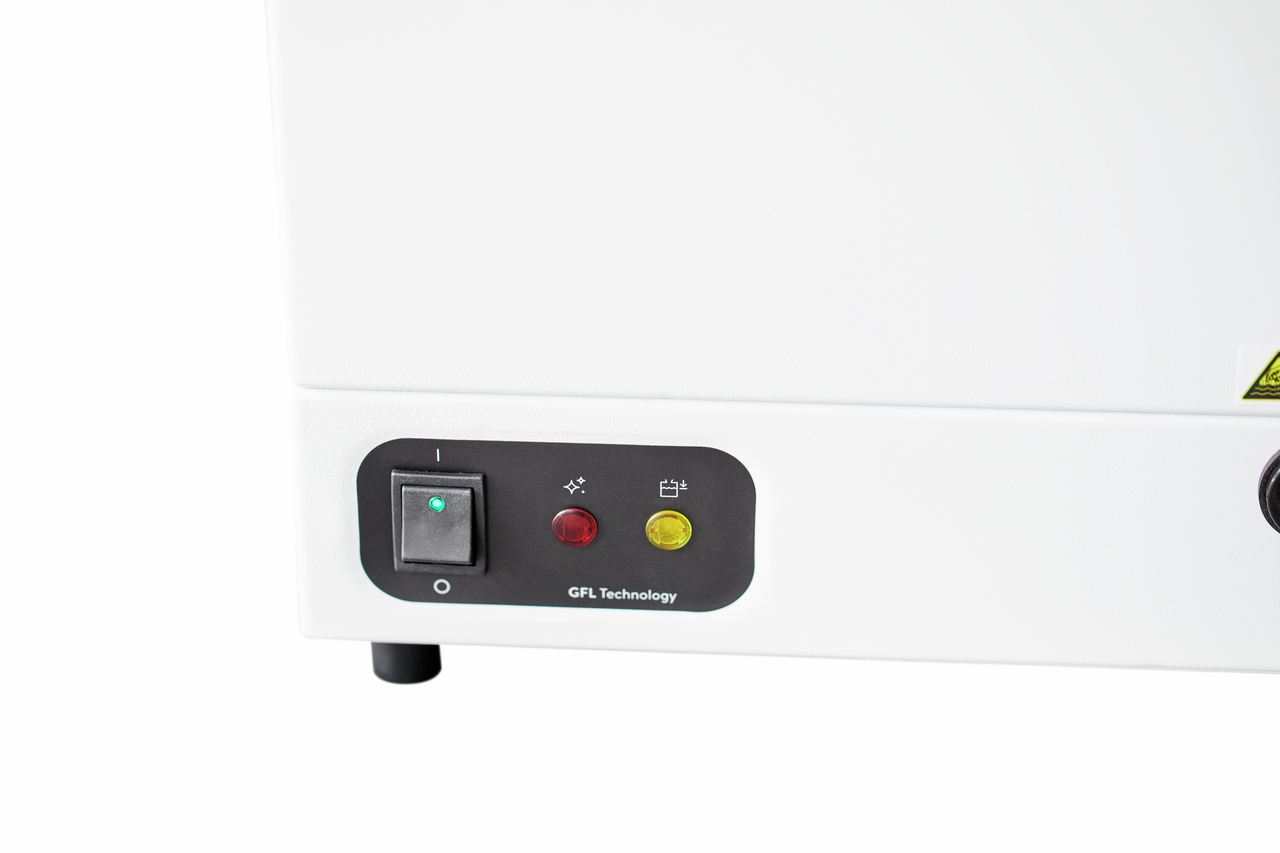

Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction

Heating element, evaporator, storage tank and condenser made of stainless steel.

With separate water supply, to feed the evaporator with pretreated water, connector for hose 1/2"

The distillate storage tank accepts twice the hourly capacity of the still

Solenoid valve to control the water supply

Evaporator easily accessible for cleaning purposes.

Automatic refill of the storage tank after distillate removal, controlled by electronic level detection

Housing made of galvanised sheet steel, powder coated

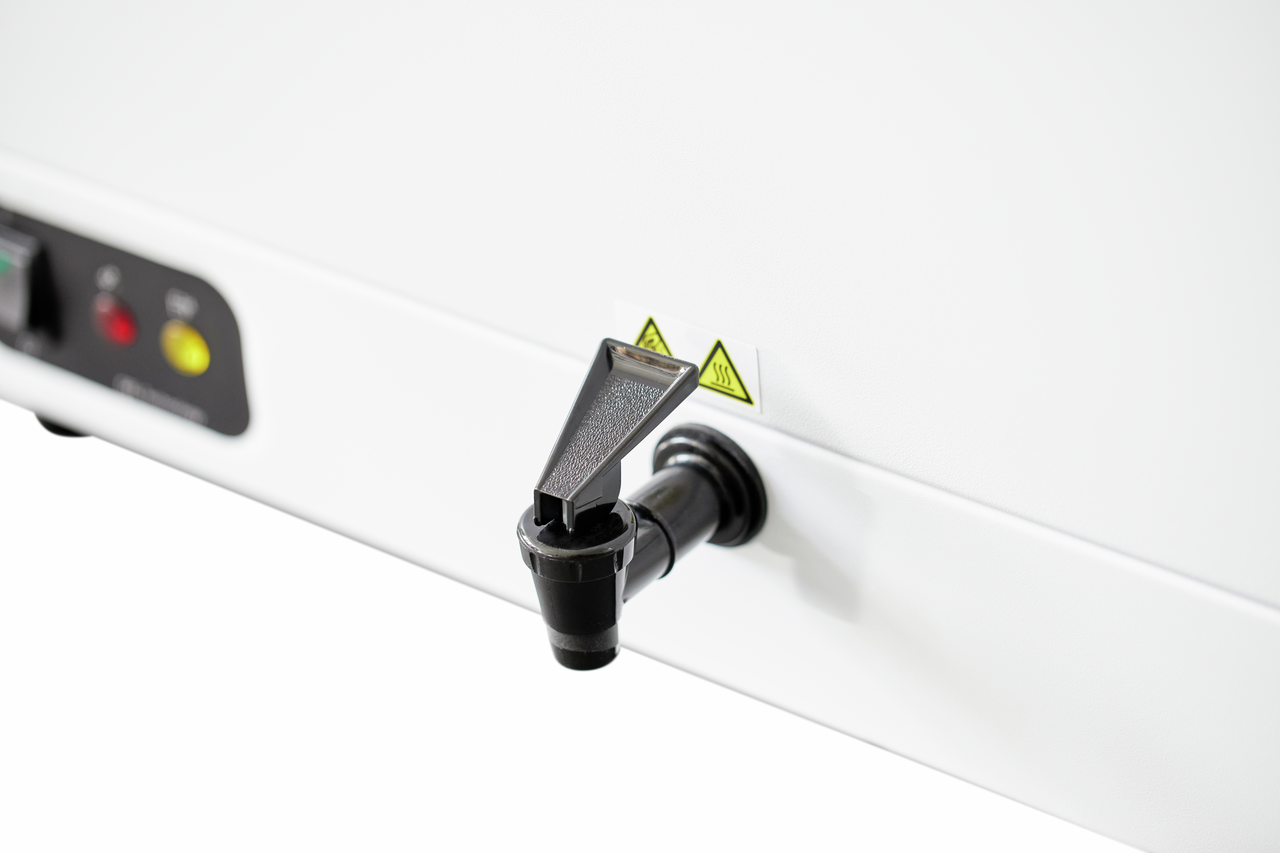

Distillate withdrawal through drain cock with continuous and touch position.

Economical energy consumption by distillation of the heated cooling water.

CO2 degassing through outlet in the condenser.

Thermostatic low water cut-off

Double-walled housing

Technical data

25°C 时单馏出物电导率

2.3 µS/cm

生产量

12 L/h

储罐容量

24 L

最大加热功率

9 kW

最大功率消耗

9 kW

冷却水消耗

3.3 L/min

最小冷却水压差

3 bar

最大冷却水压力

7 bar

尺寸（宽x深x高）

780 x 410 x 670 mm

重量

40 kg

环境温度范围

10 ... 40 °C

电源供应

400 V; 3/N/PE; 50/60 Hz

电源插头

带插头的电源线（IEC 60309，5 极，CEE，红色，16 A）

数据表 Puridest PD 12 R

Oops, an error occurred! Code: 2026033117571809219e67

适用配件

Dechlorite filter

Dechlorite filter

Phosphate cartridge

Phosphate cartridge

Pre-filter 1µm

Pre-filter 1µm
