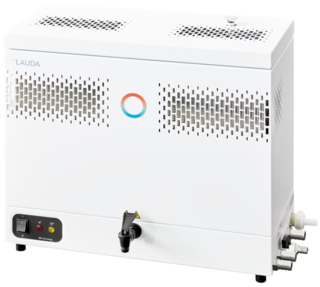

Puridest PD 8 R

LAUDA Puridest 蒸馏器不需要专家进行调试和维护,对于接入的原水也没有过高的要求。只需轻松按下按钮,即可提取高纯度的水。

订购编号: L003115

性能特征

Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting
Condenser (cooling coil) inside the storage tank, easily exchangeable.
Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.
Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction
Heating element, evaporator, storage tank and condenser made of stainless steel.
The distillate storage tank accepts twice the hourly capacity of the still
Solenoid valve to control the water supply
Evaporator easily accessible for cleaning purposes.
Automatic refill of the storage tank after distillate removal, controlled by electronic level detection
Housing made of galvanised sheet steel, powder coated
Distillate withdrawal through drain cock with continuous and touch position.
Economical energy consumption by distillation of the heated cooling water.
CO2 degassing through outlet in the condenser.
Thermostatic low water cut-off
Double-walled housing

技术特征(依据 DIN 12876)

25°C 时单馏出物电导率
2.3 µS/cm
生产量
8 L/h
储罐容量
16 L
最大加热功率
6 kW
最大功率消耗
6 kW
冷却水消耗
1.2 L/min
最小冷却水压差
3 bar
冷却水最大压力
7 bar
尺寸(宽x深x高)
780 x 410 x 540 mm
重量
35 kg
环境温度范围
10 ... 40 °C
电源供应
220 V; 3/PE; 50/60 Hz
电源插头
不带插头的电源线 (HAR)

下载 - 一般产品数据

请选择您需要查看何种语言的文档:

可用文档
可用语言
设备 设备类别 文件类型 语言 格式 尺寸

Puridest 蒸馏水器

蒸馏装置 手册
中文
PDF 1,05 MB 下载文档 下载文档

Chapter Stills
Overall brochure Chinese

蒸馏装置 手册
中文
PDF 1,05 MB 下载文档 下载文档
