Stainless steel test tube rack with 104 openings
性能特征

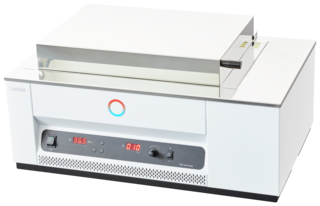

Shaking water bath for exactly reproducible temperatures

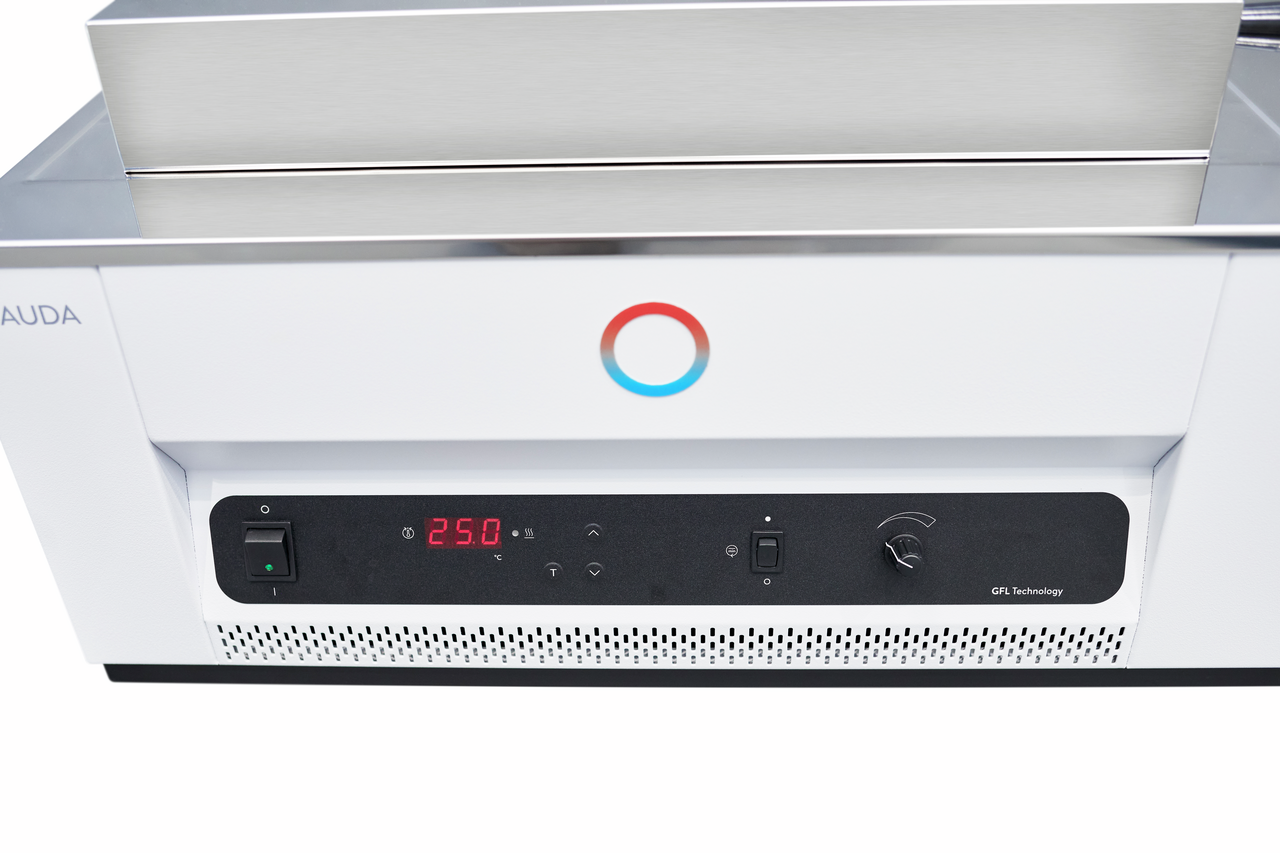

Membrane keypad with concise symbols
1-point temperature controller
Shaking device with a gentle start-up and overload-protected
Shaking basket can be easily removed for cleaning purposes.
Heat insulating lid made of stainless steel, double-walled with inner curvature
Lid and perforated tray as standard.
Easy-to-read LED display
Digital setpoint adjustment
Overtemperature protection for operation with non-flammable liquids and water deficiency protection
The shaking device is guided on corrosion-resistant special ball bearings
Cover frame with condensate channel
prevents condensate from dripping back into the vessels
Setting and displaying temperature values in increments of 0.1°C.
Speed continuously adjustable, load-independent, with gently controlled start-up
Electronic monitoring of the temperature controller
Linear, oscillating shaking motion

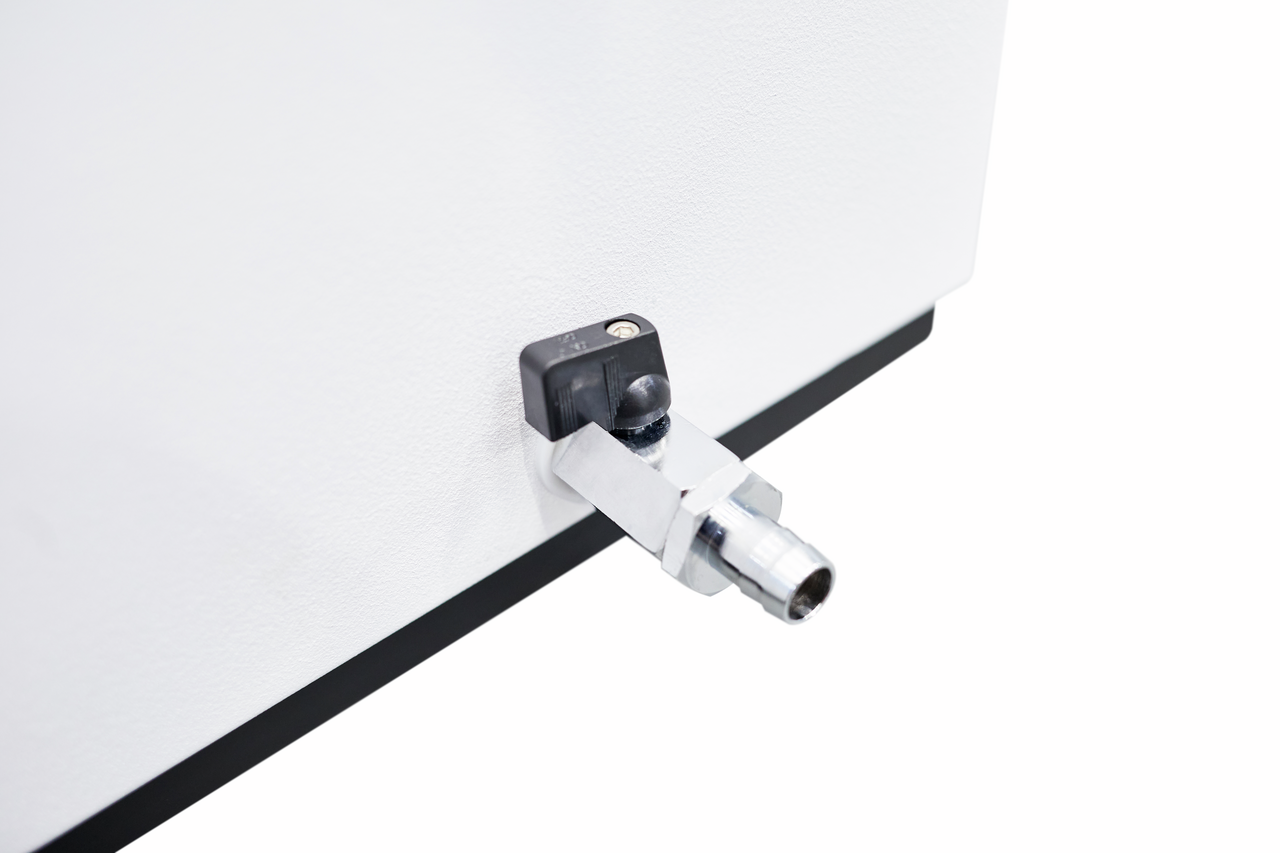

Bath vessel with drain valve
Bath interior, cover, shaking basket and heating element are made of stainless steel
工作范围
最小工作温度
25 °C
最大工作温度
99.9 °C
温度稳定性
0.1 ± K
技术特征(依据 DIN 12876)
工作温度范围
25 ... 100 °C
环境温度范围
10 ... 40 °C
温度稳定性
0.1 ± K
最大加热功率
1.5 kW
最大功率消耗
1.5 kW
电流消耗
10 A
最小/最大浴槽容积
9,0 / 24,4 L
尺寸(宽x深x高)
715 x 520 x 330 mm
重量
28 kg
振荡振幅
22 mm
振荡频率
10 ... 250 1/min
电源供应
230 V; 50/60 Hz
电源插头
带插头的电源线 (NBR 14136)
