Universal mount for Shakers, for all VS 15
性能特征

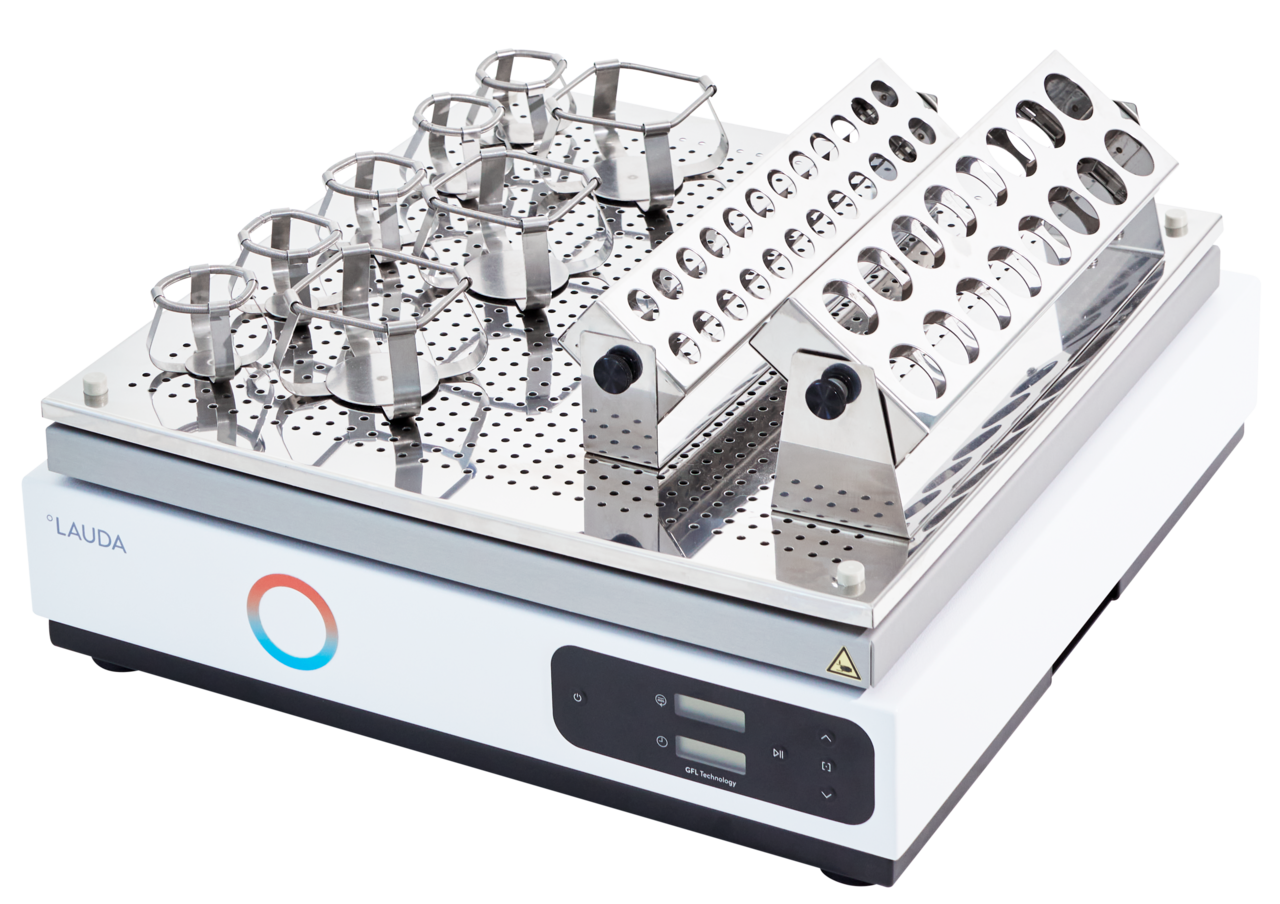

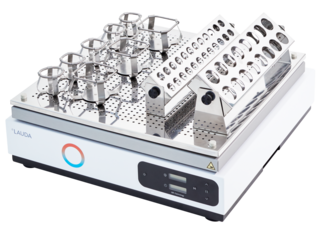

Shaker with orbital motion, heavy duty, low noise, in a compact design
User-friendly microprocessor technology
Optional RS 232 interface on request
Compact, low-wear mechanism with mass balancing for a secure stand
Outer housing made of electrolytically galvanized sheet steel, powder-coated
Shaking frequency display and setting digitally via LC display, in steps of 1.0 rpm, gentle start-up
Membrane keyboard with distinctive symbols.

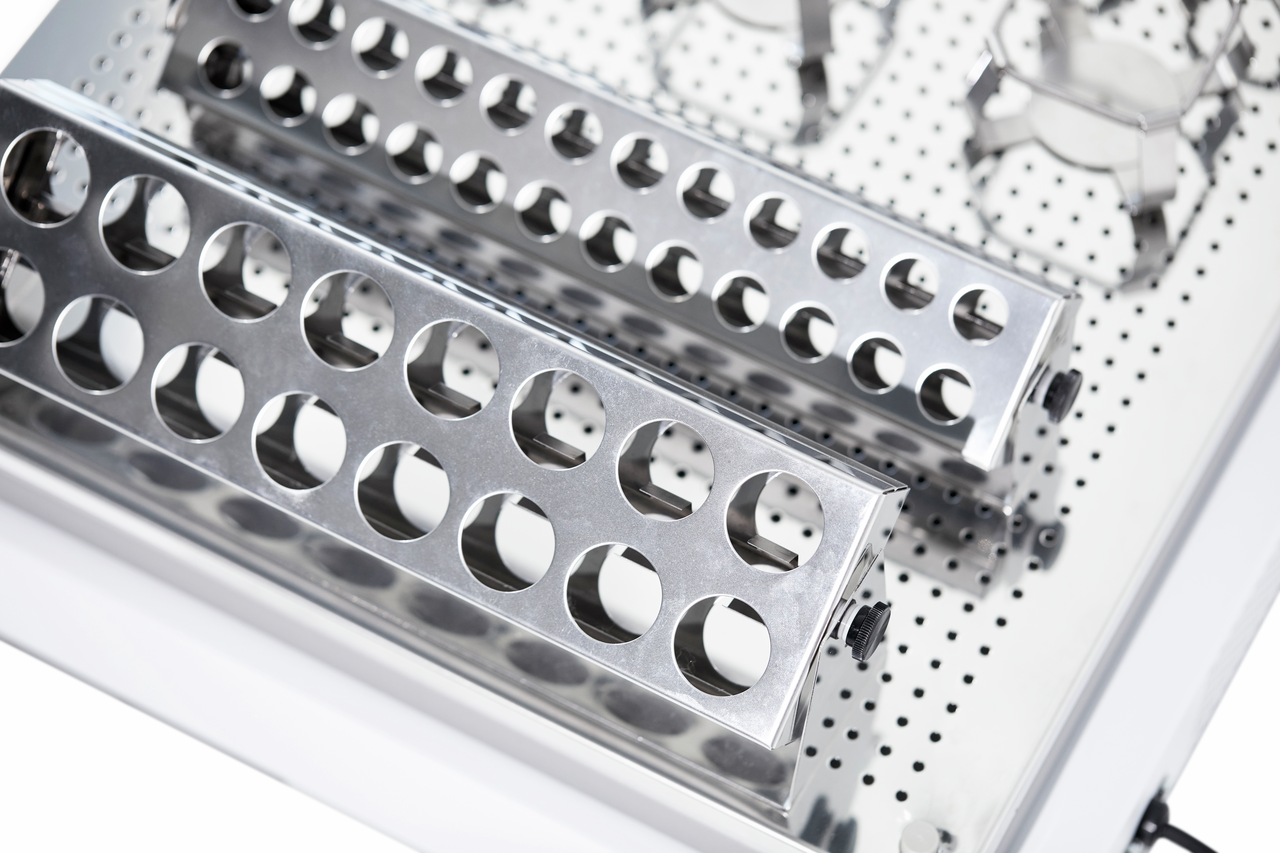

Shaking table made of anodized aluminum with four plastic pins
Constant speed, independent of load

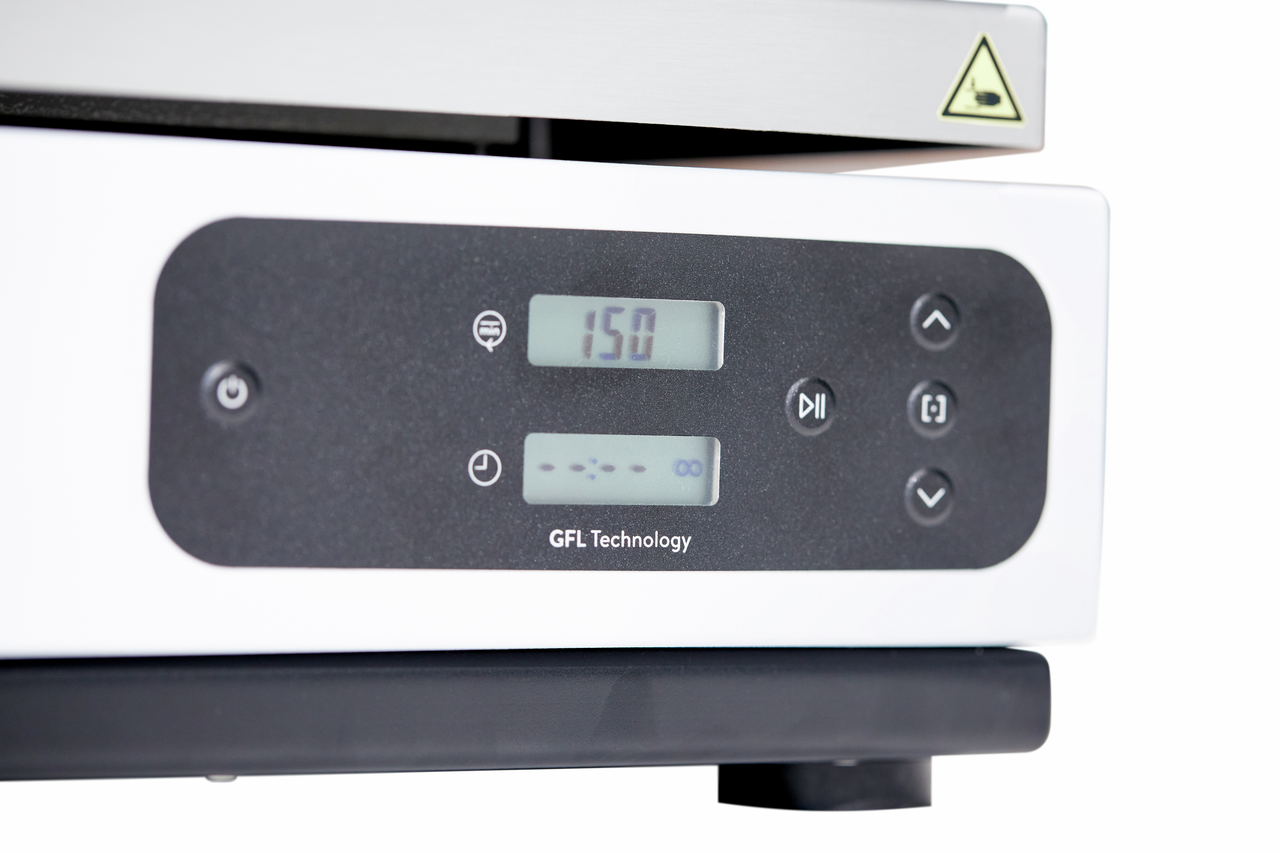

The setpoint and actual values as well as the shaking frequency are displayed on two LC displays
Timer adjustable from 1 min. up to 99:59 hours or continuous operation
Drive by an overload-protected AC motor
Excellent for continuous use
技术特征（依据 DIN 12876）
环境温度范围
10 ... 50 °C
最大功率消耗
0.07 kW
振荡振幅
30 mm
振荡频率
20 ... 300 1/min
最大承载量
15 kg
尺寸（宽x深x高）
480 x 487 x 160 mm
重量
18 kg
电源插头
带折角 Schuko 插头的电源线 (CEE7/7)
电源供应
230 V; 50/60 Hz
适用配件
如需合适的配件，请使用 LAUDA 配件搜索引擎。
