性能特征
Thermostatic bath with latest microprocessor technology. Integrated cooling system
360° turnable and detachable control panel for remote control
Timer und count-down-function
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Low height of appliance when control panel removed
Internal LAUDA Varioflex pump with 8 selectable levels
Utilizes natural refrigerants
Large 5,7" Multi-Touch-Color display
User administration for up to 20 user
EasyUse system for simple operation of the whole unit
USB and Ethernet interface equipped as standard
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
Significantly enlarged accessible volume
SmartCool system for energy-saving digital cooling management including compressor on-off control
Operation with multi touch display
Data in- and export via USB
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Retrofittable for upgrading with interface (RS 232/485, Profibus; EtherCAT; analogue or contact modules)
Programmer with up to 100 programs, up to 50 segments each
Bath vessel made of stainless steel (insulated, with handles and drain tap)
Hybrid cooling system: (heat removal complementary with cooling water)
工作范围
最小工作温度
-100 °C
最大工作温度
200 °C
温度稳定性
0.01 ± K
技术特征(依据 DIN 12876)
工作温度范围
-100 ... 200 °C
运行温度范围
-100 ... 200 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.01 ± K
最大加热功率
3.6 kW
最大功率消耗
3.7 kW
电流消耗
16 A

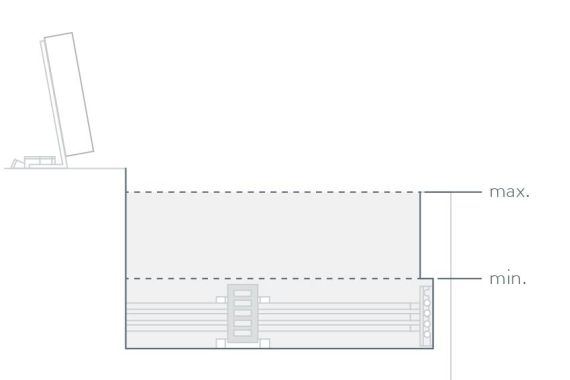

最小/最大浴槽容积
6,5 / 10,5 L
尺寸(宽x深x高)
500 x 600 x 780 mm
电源供应
230 V; 50 Hz
电源插头
带插头的电源线(IEC 60309,蓝色)
Temperatur | Pumpenstufe | Temperiermedium | Kälteleistung 50 Hz |
---|---|---|---|
20 °C | 8 | Ethanol | 0,4 kW |
10 °C | 8 | Ethanol | 0,4 kW |
0 °C | 8 | Ethanol | 0,4 kW |
-10 °C | 8 | Ethanol | 0,4 kW |
-20 °C | 4 | Ethanol | 0,4 kW |
-30 °C | 4 | Ethanol | 0,39 kW |
-40 °C | 4 | Ethanol | 0,37 kW |
-50 °C | 4 | Ethanol | 0,35 kW |
-60 °C | 4 | Ethanol | 0,32 kW |
-70 °C | 4 | Ethanol | 0,25 kW |
-80 °C | 4 | Ethanol | 0,17 kW |
-85 °C | 4 | Ethanol | 0,12 kW |
-90 °C | 4 | Ethanol | 0,06 kW |
-95 °C | 4 | Ethanol | 0,02 kW |
-100 °C | 4 | Ethanol | 0,01 kW |
下载 - 一般产品数据
适用配件
如需合适的配件,请使用 LAUDA 配件搜索引擎。
