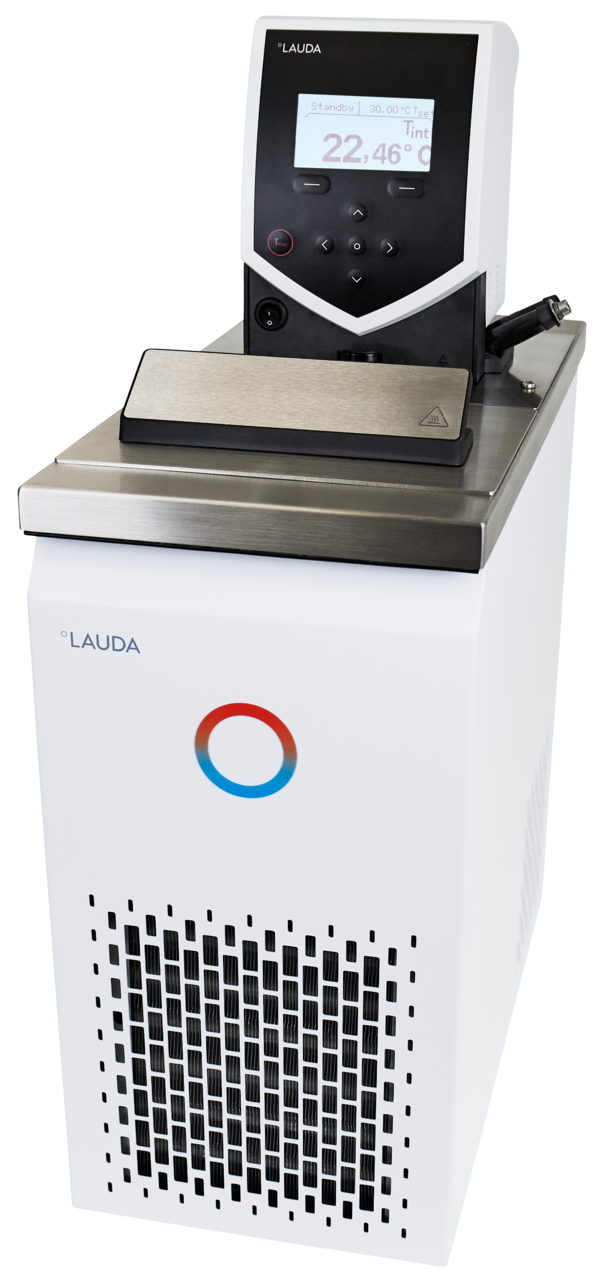

Pump circulation set ECO
性能特征
Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Pump connectors with plastic nipples 13 mm as standard
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Monochrome grafic LCD display for simultaneous indication of actual and set value
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Bath vessel made from stainless steel with drain valve
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Integrated programmer, 1 programme with max. 20 segments
Condenser cooling Air
工作范围
最小工作温度
-30 °C
最大工作温度
200 °C
温度稳定性
0.02 ± K
技术特征(依据 DIN 12876)
工作温度范围
-30 ... 200 °C
环境温度范围
5 ... 40 °C
温度稳定性
0.02 ± K
最大加热功率
2 kW
最大功率消耗
2.3 kW
电流消耗
10 A
最大输送压力
0,6 bar
泵最大输送流量(压力)
22 L/min
最小/最大浴槽容积
4,6 / 5,7 L
尺寸(宽x深x高)
200 x 430 x 581 mm
重量
27 kg
电源供应
230 V; 50 Hz
电源插头
带折角插头的电源线 (BS1363)
Temperatur | Pumpenstufe | Temperiermedium | Kälteleistung 50 Hz |
---|---|---|---|
20 °C | 2 | Ethanol | 0,3 kW |
0 °C | 2 | Ethanol | 0,24 kW |
-20 °C | 2 | Ethanol | 0,1 kW |
-30 °C | 2 | Ethanol | 0,02 kW |
