LOOP L 100

The L 100 and L 250 air-cooled device types achieve a cooling capacity of 120 and 250 watt. The devices are primarily for use at constant temperatures with low power requirements. Both device types are especially energy-efficient and silent in partial-load operation.

Part no. : L002018
Inquire about product
Circulation and process thermostats LOOP L 100
Cookies must be enabled to activate the embedded video. By activating them, data is transmitted to the respective provider. Further information can be found in our privacy policy.
Open cookie settings close
Back to overview Circulation and process thermostats

Features

Easy to use recirculation thermostat with integrated cooling system
Facile 3-key user interface
Operates with non flammable liquids (water,water/glycol)
Air cooled system

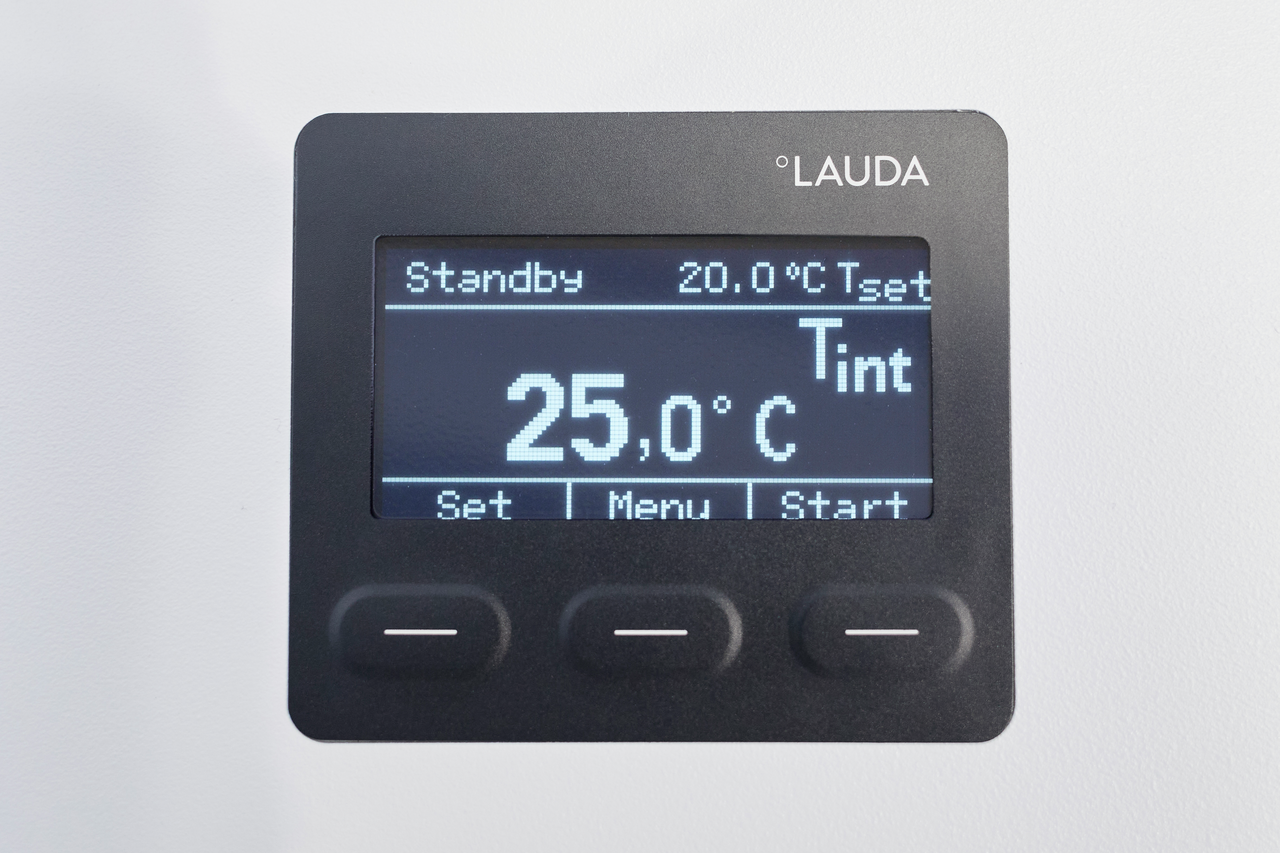

Bright and high-contrast graphic OLED display

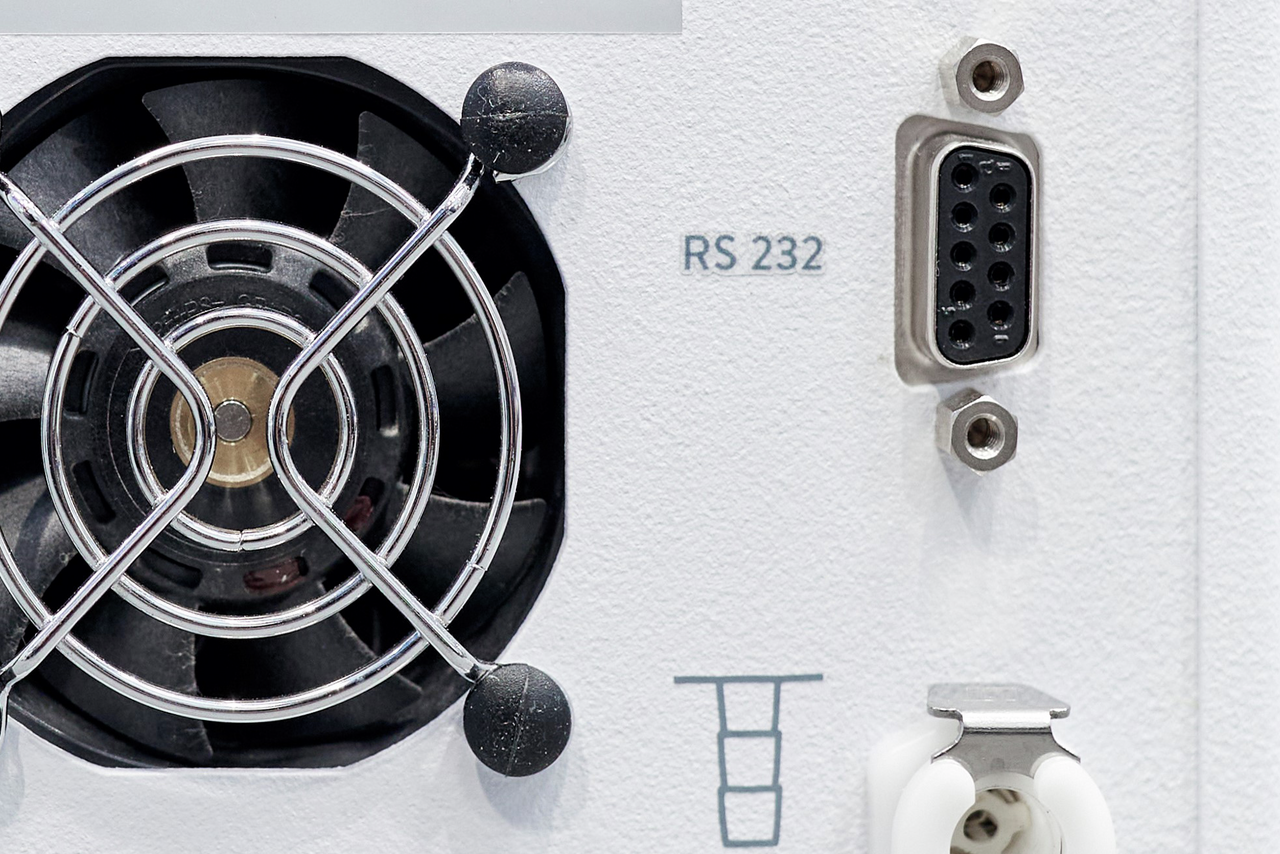

RS 232 interface
Quiet and low vibration level operation due to refrigerant free cooling technology
User friendly menu navigation in plain language
Pump connectors with fast couplings for simple change of applications
Compact overall size and low weight

Working range

Min. working temperature

4 °C

Max. working temperature

80 °C

Temperature stability

0.1 ± K

Technical data (according to DIN 12876)

Working temperature range
4 ... 80 °C
Ambient temperature range
5 ... 40 °C
Temperature stability
0.1 ± K
Heater power max.
0.2 kW
In / Outlet connection thread (outside)
Quick C. 1/4″
Max. filling volume
0.28 L
Dimensions (WxDxH)
175 x 301 x 266 mm
Weight
7 kg
Noise level
57 dB(A)
Net weight
6.5 kg
Max. power consumption
0.24 kW
Max. discharge pressure
0,8 bar
Max. pump flow pressure
3 L/min
Power supply
100-240 V; 50/60 Hz
Power plug
Power cord with plug (AS/NSZ 3112)
TemperatureTempering mediumCooling capacity 50 HzCooling capacity 60 Hz
20 °CEthanol0.12 kW0.12 kW
10 °CEthanol0.06 kW0.06 kW
