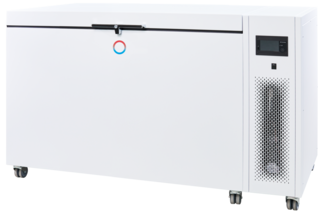

Laboratory chest freezer with reliable monitoring and highly efficient insulation for long-term storage and quality assurance
Protection against unauthorized access to setpoints through password-protected user management
Interior completely made of stainless steel
IIOT ready via powerful Ethernet interface
Energy-saving, maintenance-free refrigeration system with fully hermetic high-performance compressors
Additional insulating cover plates over the usable space
Comfortable touchscreen control unit with digital display for entering and calling up all safety-relevant values
Electronic alarm system and potential-free contact for connection to an in-house alarm system or the central control system
For long-term storage and quality assurance of organic substances and other materials
RS 485 interface for trouble-free data transfer
Environmentally friendly, future-proof natural refrigerants
Two lead-throughs with an internal diameter of 13 mm as standard, for inserting control sensors, eg Type Pt100
Limit values for high and low temperature alarm adjustable
Display and alarm functions are maintained in the event of a power failure (battery backup)
Built-in data logger for storing temperature and alarm data
Cooling coils blown into the sides ensure direct cold transfer from all sides, high freezing speed and uniform temperature distribution throughout the whole cabinet
Vacuum insulation means more storage space with a reduced footprint
Magnetic sealing system reliably prevents the door / lid seals from freezing on
工作范围
最小工作温度
-40 °C
最大工作温度
0 °C
技术特征(依据 DIN 12876)
工作温度范围
-40 ... 0 °C
温度稳定性
2 ± K
环境温度范围
15 ... 28 °C
有效空间
556 L
有效空间尺寸(宽x深x高)
1180 x 620 x 760 mm
尺寸(宽x深x高)
1671 x 910 x 1056 mm
重量
260 kg
冷却时间
从 20 °C 到 -40 °C 在 4 h
解冻时间
从 -40 °C 到 0 °C 在 10 h
电源供应
230 V; 50 Hz
电源插头
带插头的电源线 (GB2099, 15934)
下载 - 一般产品数据
设备 | 设备类别 | 文件类型 | 语言 | 格式 | 尺寸 | |
---|---|---|---|---|---|---|
Chapter Freezers |
冰柜 | 手册 |
中文
|
2,98 MB | 下载文档 |
