Universa PRO

配备先进电子设备的 LAUDA Universa 浸入式循环器可确保精确的控制精度。

订购编号 : L004248

咨询产品

浸入式温控器 Universa PRO

返回至概览浸入式温控器

性能特征

Bath circulation thermostat with advanced electronics ensures precise control accuracy

Focus on safety: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning.

Adaptive bath edge ventilation (patent application): - Prevents icing and condensation - Stops water entering the bath - Blocks vapors to protect electronics. To increase operational safety and extend service life.

Flexible networking: Modern connectivity through integrated Ethernet and USB interfaces as standard, plus eleven optional interface modules for versatile communication solutions.

Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements.

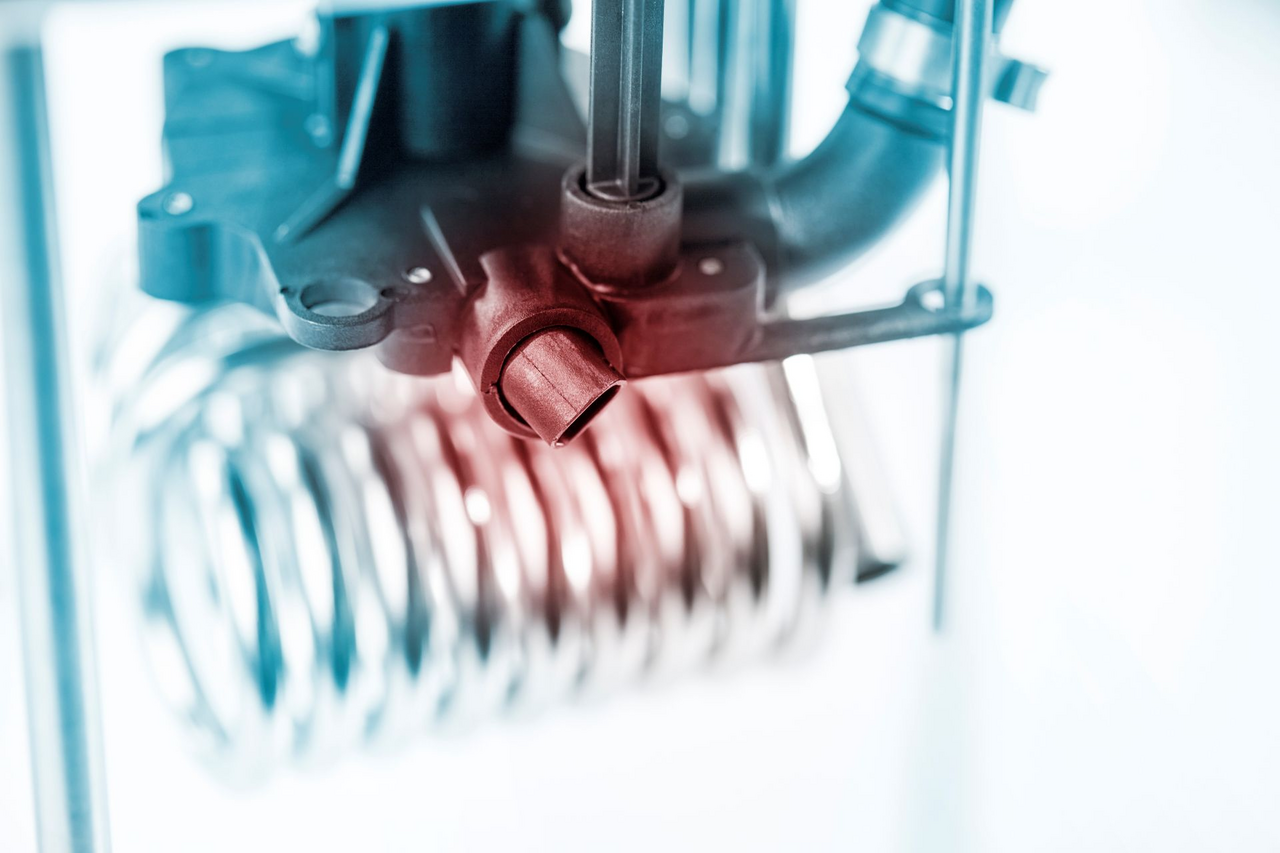

Efficient vario pump with six adjustable performance levels. The flexible flow distribution for internal and external circulation ensures optimum volume flow and pressure.

Features include programmer, calibration options and weekly scheduler for versatile and precise process control.

Comprehensive safety concept: - Reliable low-level protection with float technology, - Adjustable overtemperature protection with acoustic alarm, - Smart temperature control media management with automatic limit value adjustment. For reliable operation and improved safety of your valuable samples.

Clear overview, intuitive operation: The 3,5-inch colour TFT display provides a progression graph, offers a clear menu navigation in six languages and easy to read operating status icons - easily controlled via cursor and soft keys.

Easily accessible front switch on the control head allows the pump output to be adjusted during operation.

Intelligent remote control and monitoring: Integrated web server allows flexible remote control in the company network via the LAUDA Command app or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables global, cloud-based data analysis and remote maintenance.

工作范围

最小工作温度

30 °C

最大工作温度

200 °C

温度稳定性

0.02 ± K

技术特征

工作温度范围

30 ... 200 °C

包括水冷却装置的工作温度范围

20 ... 200 °C

运行温度范围

-30 ... 200 °C

环境温度范围

5 ... 40 °C

温度稳定性

0.02 ± K

电流消耗

12 A

最大输送压力

0,6 bar

泵最大输送流量（压力）

22 L/min

输入/输出连接螺纹（外部）

M16 x 1

尺寸（宽x深x高）

195 x 234 x 333 mm

重量

6 kg

电源供应

200-240 V, 50/60 Hz

电源插头

带插头的电源线 (GB2099, 15934)

数据表 Universa PRO

下载 - 一般产品数据

设备	设备类别	文件类型	语言	格式	尺寸
LAUDA Command App	恒温浴槽	软件	中文	EXE	65,02 MB	下载文档

适用配件

如需合适的配件，请使用 LAUDA 配件搜索引擎。

LAUDA 配件搜索引擎
